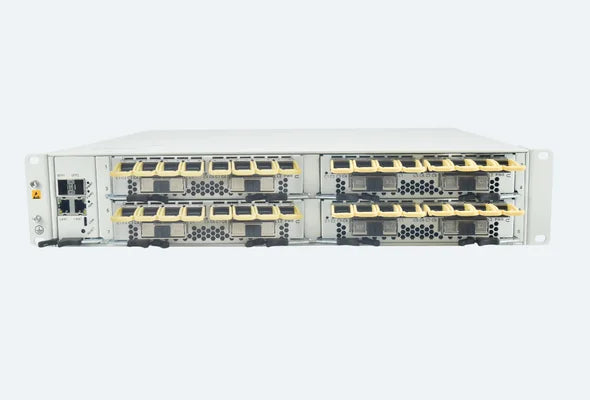

2U Managed Chassis Unloaded Platform, Supports up to 8x EDFA/OEO Pluggable Card

Specifications 2U Managed Chassis with 8 slots for EDFA/OEO/DCF/OLP Line Cards, 100V-240VAC The height of the chassis is 2U, and it is equipped with 8 slots that can be used with multiple Line Cards such as EDFA/DCM/OEO/OLP/OSW, each slot supports hot swap. The NMU master card supports Optical Supervisory Channel (OSC). The chassis power supply adopts 1+1 pluggable redundant design. The intelligent cooling system consists of 3 fans, which are modular in design and can be disassembled. This chassis can meet the transmission requirements of Ethernet 1G/10G/40G/100G/200G and even higher DWDM services, easy to upgrade and maintain, and cost-effective. Slot Count 8 Power Supply Dual power, 100V-240VAC Management Type SNMPv1, Monitor Online, Simple Management Too Operating Temperature -5°C to 60°C (23 to 140°F) Enclosure Type Rack mountable Power Consumption < 50W Network Interface Console, SFP, RJ45 Ports Line Modulation PDM-QPSK Dimensions (HxWxD) 1.
