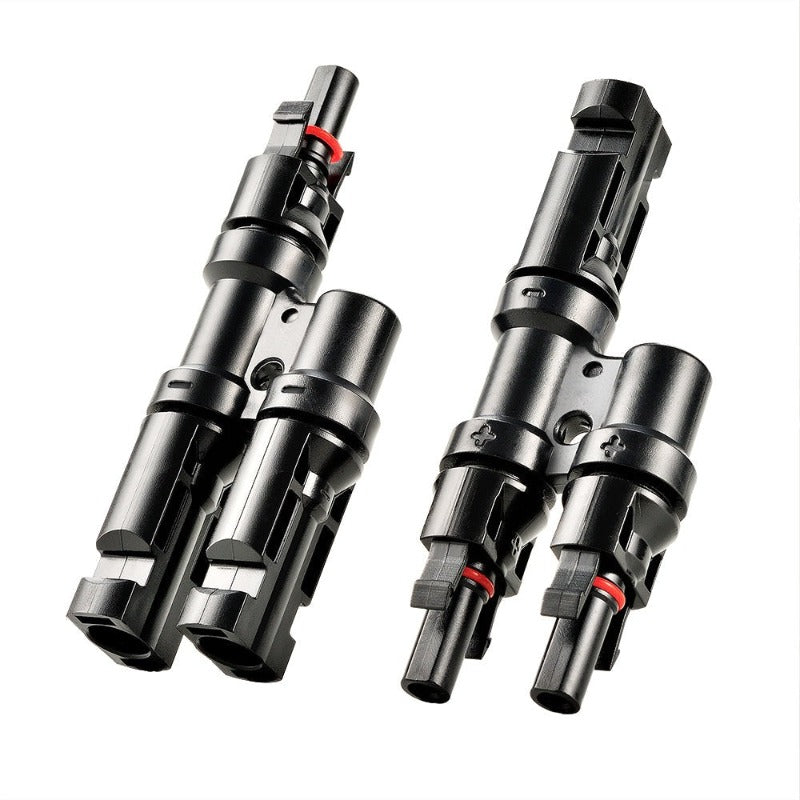

Rich Solar Y Branch Parallel Connectors 2 to 1 RS-T2

Rich Solar Y Branch Parallel Connectors 2 to 1  The Rich Solar Y Branch Parallel Connectors 2 to 1 RS-T2 offers fast and reliable performance for connecting two solar panels in parallel. Its efficient design ensures maximum power output and maximum compatibility with various solar panel cables. Try it today and maximize your energy savings! Features Provides a quick and easy parallel wiring solution for solar panels. Compatible with all solar connectors. Designed for photovoltaic solar systems with high mechanical requirements and extreme weather conditions. Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument. Lower contact resistance. Waterproof and dustproof. Rich Solar RS-T2 Y Branch Parallel Connectors 2 to 1 Installation Safety First: Ensure that the solar panels are not generating power during the installation process. If your system is already operational, turn it off or disconnect it. Prepare the Cables: If your solar panels don't have pre-installed MC4 connectors, prepare the cables by stripping a small section of insulation from the ends. Identify the positive and negative cables. Install MC4 Connectors (if necessary): If your solar panels don't have pre-installed connectors, crimp or assemble MC4 connectors to the ends of the positive and negative cables. Follow the manufacturer's instructions for the connectors. Connect to the Y Branch Parallel Connectors: Plug one end of the MC4 connectors from each solar panel into the female connectors on the Y Branch Parallel Connectors. Ensure that the positive and negative cables are connected appropriately. Secure the Connections: Ensure that the MC4 connectors are securely attached to the Y Branch Parallel Connectors. Some connectors may have locking mechanisms or require an assembly tool. Follow the manufacturer's instructions. Connect the Y Branch Connectors to the Solar Charge Controller or Inverter: The other end of the Y Branch Parallel Connectors has a single male connector. Connect this end to the female MC4 connector on the input side of your solar charge controller or inverter. Secure the Connection: Ensure that the connection between the Y Branch Parallel Connectors and the charge controller or inverter is secure. Tighten any screws or locking mechanisms as needed. Weatherproof Connections: To protect the connections from environmental elements, use heat shrink tubing or weatherproof tape. Cover the connectors and a portion of the cable to prevent water ingress. Test the System: Once the connections are complete, turn on the solar power system and check for proper operation. Monitor the system to ensure there are no issues with the connections. Rich Solar Y Branch Parallel Connectors 2 to 1 RS-T2 Technical Specifications Rated Current: 30A  Maximum Voltage: 1000VDC Waterproof: IP67  Wire Range: 10AWG, 12AWG Insulation Material: PPO + PA  Contact Material: Tinned Cooper Temperature Range: -40°C ~ +90°C Safety Class: II
