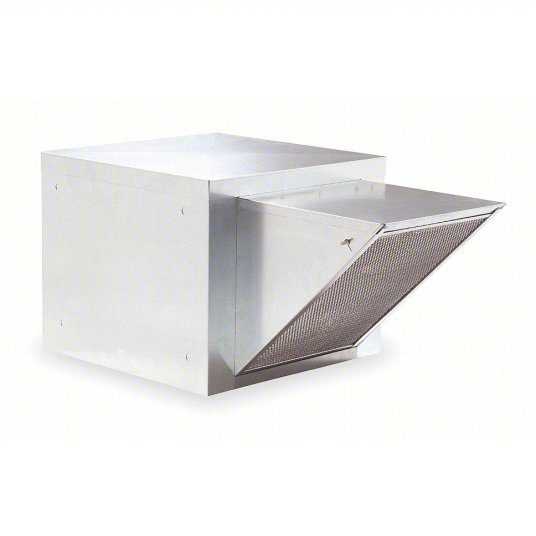

Centrifugal Roof Supply Fan: 15 1/2 in Wheel, 3,899 cfm, 5/8 in wc Max., ODP, 3/4 hp, 3 Ph, Roof

$3,999.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

ADVANCED SOLUTIONS DISPLAY

View Store

Centrifugal Roof Supply Fan: 15 1/2 in Wheel, 3,899 cfm, 5/8 in wc Max., ODP, 3/4 hp, 3 Ph, Roof Brand DAYTON Drive Type Belt Drive Includes Drive Package with Motor Yes Assembly Unassembled Wheel Diameter 15-1/2 in Supply Airflow @ 0.000 in SP 3,899 cfm Maximum Static Pressure 5/8 in wc Maximum Inlet Air Temperature 120 °F Nameplate Voltage 208/220/440V AC Phase 3 Motor Enclosure Open Dripproof Motor Horsepower 3/4 hp Brake Horsepower 81/100 hp Maximum Fan Speed 605 RPM Frequency 60 Hz Speed Controllable No Number of Speeds 1 Bearing Type Sealed Pillow Block Mount Type Roof Curb Mounting Location Roof Wheel Type Forward Curved Wheel Material Steel Filter Material Aluminum Number of Filters 2 Filter Area 3-3/4 sq ft Filter Housing Height 27-1/2 in Filter Housing Width 28-1/8 in Filter Housing Depth 29-1/4 in Housing Material Steel Base Shape Square Base Height 1.5 in Base Width 34-1/2 in Base Length 34-1/2 in Overall Height 32 in Overall Length 34-1/2 in Overall Width 63-3/4 in
