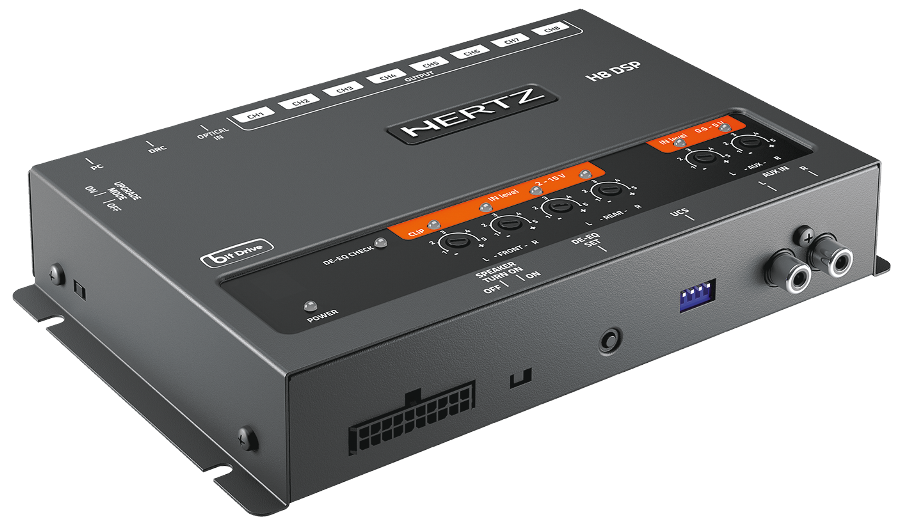

Hertz H8 DSP | 8 Channel Digital Processor
shopaudioxtc.com
Electronics / Audio

Hertz H8 DSP | 8 Channel Digital Processor

$512.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Audio XTC

View Store

Features: Digital Signal Processor INPUT STAGE    Master (Speaker In/Pre in)    FL - FR - RL - RRAux (Pre in)    Left - RightDigital Optical IN (S/PDIF max 96 kHz/24bit)    OPTICAL IN OUTPUT STAGE    Low Level Pre (default)    FRONT TW L/R, FRONT WF L/R REAR L/R, SUB, CENTER CONNECTIONS    From / To Personal Computer    1 x USB / BDRC HE    Audio controls and Memory / Inputs selectionOptical / AUX select    Optical In / Aux wire control + 12V / GND enableMemory A / Memory B    Memory A / B wire control + 12V / GND enable CROSSOVER N.8 (one for each output channel)    Filter Type    Full / High Pass / Low Pass / Band PassFilter mode and slope    Linkwitz @ 12 / 24 dBButterworth @ 6 / 12 / 18 / 24 dBCrossover frequency    68 steps @ 20 ÷ 20k HzPhase control    0° ÷ 180° EQUALIZER    On Hi-Levels input (Speaker In)    Automatic De-Equalization OnOutputs    N.8 Graphic: ±12 dB @ 31 Band ISO 1/3 Oct. 20 ÷ 20k Hz TIME ALIGNMENT    Distance    0 ÷ 510 cm / 0 ÷ 200.8 inchDelay    0 ÷ 15 msStep    0.08 ms; 2,8 cm / 1.1 inchFine set    0.02 ms; 0,7 cm / 0.27 inch
