Kramer 105VB 1:5 Composite Distribution Amplifier (BNCs)

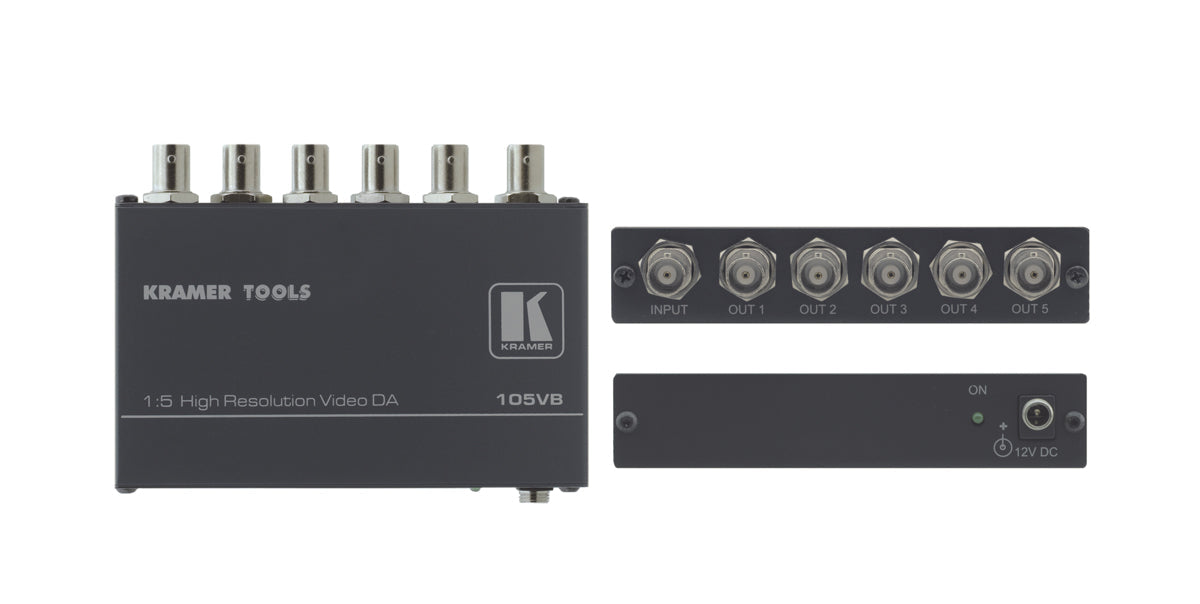

Kramer 105VB 1:5 Composite Distribution Amplifier (BNCs) Kramer 105VB 1:5 Composite Distribution Amplifier (BNCs) is designed to accept a composite video signal on 1 input and distribute it across 5 outputs. Providing buffering and isolation to eliminate noise, it has level controls which allow you to control the gain to send undistorted signals on all 5 outputs. The distribution amplifier features a bandwidth of 400MHz and employs BNC connectors. 3 units of the video distribution amplifier can be racked together in 1 RU space. It can also be used with an optional RK-3T rack adaptor. Key Features Bandwidth - 400MHz (-3dB). Connectors - BNC (105V has RCAs). Level (Gain) Control Compact Kramer TOOLS™ 1 Input / 5 Outputs Buffering / Isolation of Input Signal Bandwidth - 400MHz 3 units of the video distribution amplifier can be racked together in 1 RU space Can be used with an optional RK-3T rack adaptor Technical Specs INPUT: 1 video, 1Vpp/75O on a BNC connector. OUTPUTS: 5 video, 1Vpp/75O on BNC connectors. MAX. VIDEO OUTPUT: 2Vpp. VIDEO BANDWIDTH (- 3dB): 280MHz. DIFF. GAIN: 0.1%. DIFF. PHASE: 0.1 Deg. K-FACTOR: < 0.05%. S/N RATIO: 80dB. CONTROL: Up to + 6dB (level). COUPLING: AC. POWER SOURCE: 12VDC, 100mA. DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98", W, D, H). WEIGHT: 0.3kg. (0.67lbs.) approx. ACCESSORIES: Power supply, mounting bracket. OPTIONS: Model VA-50P power supply with six 12VDC outlets. RK-T1, RK-T3 19" rack adapters.
