RDL ST-ACR1 Line-Level Audio Controlled Relay

$162.25
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

AVLGEAR

View Store

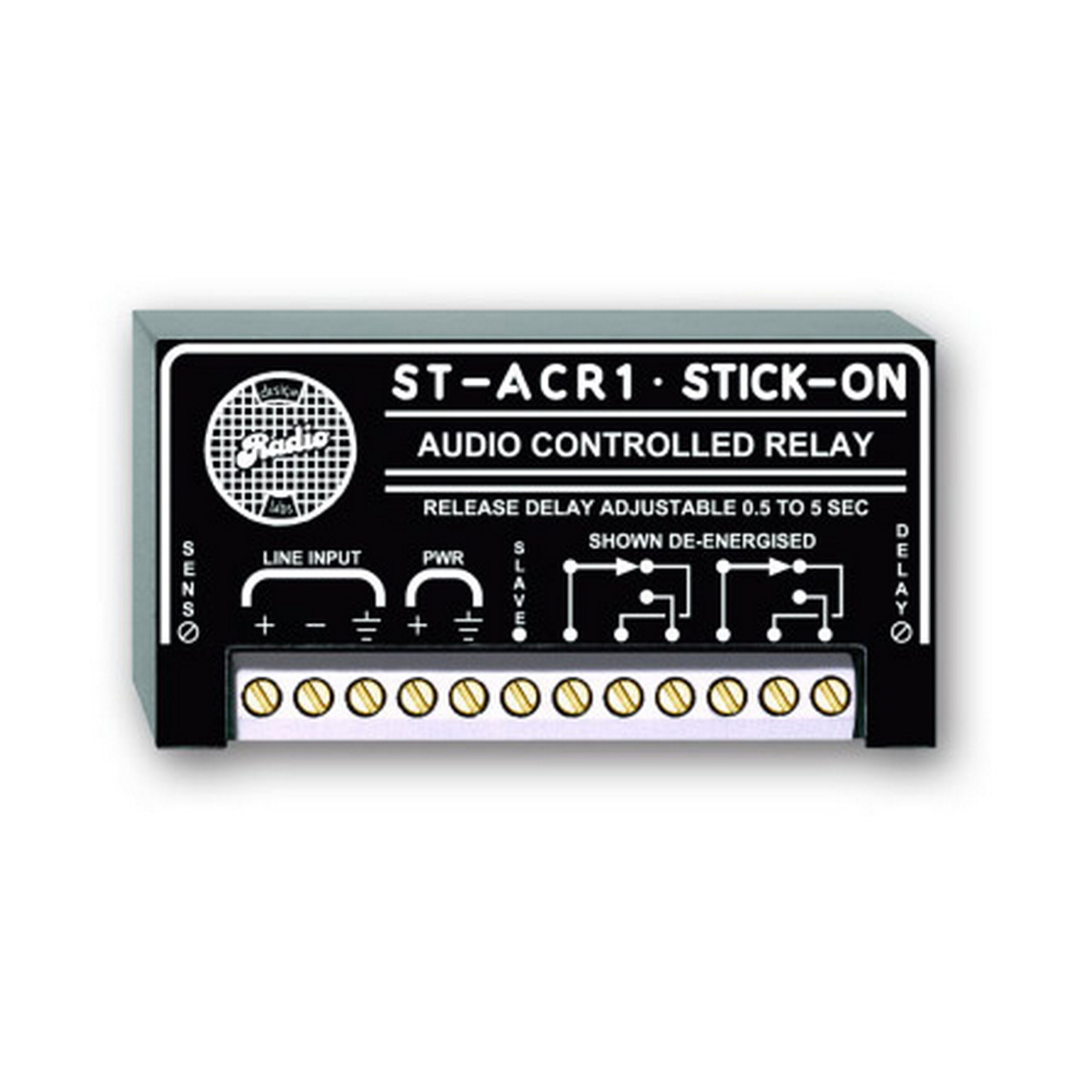

RDL ST-ACR1 Line-Level Audio Controlled Relay The ST-ACR1 is an Audio Controlled Relay in the STICK-ON series. These products are designed for quick, convenient installation, and reliable operation in a variety of control applications. The ST-ACR1 is designed to switch on line level sources. Two multiturn trimmers are provided. The SENS potentiometer adjusts the audio input sensitivity. A threshold LED facilitates accurate adjustment. The module can be set to trigger on signals between -30 dBu and 0 dBu. The DELAY control sets the time required for the relay to release when the audio drops below the threshold. The delay adjustment range for the ST-ACR1 is from 0.5 seconds to 5 seconds. Key Features Switching Controlled by Audio Signal Sensing of Line-Level Signal Silence Sensing DPDT Switching Contacts Open-Collector SLAVE Output
