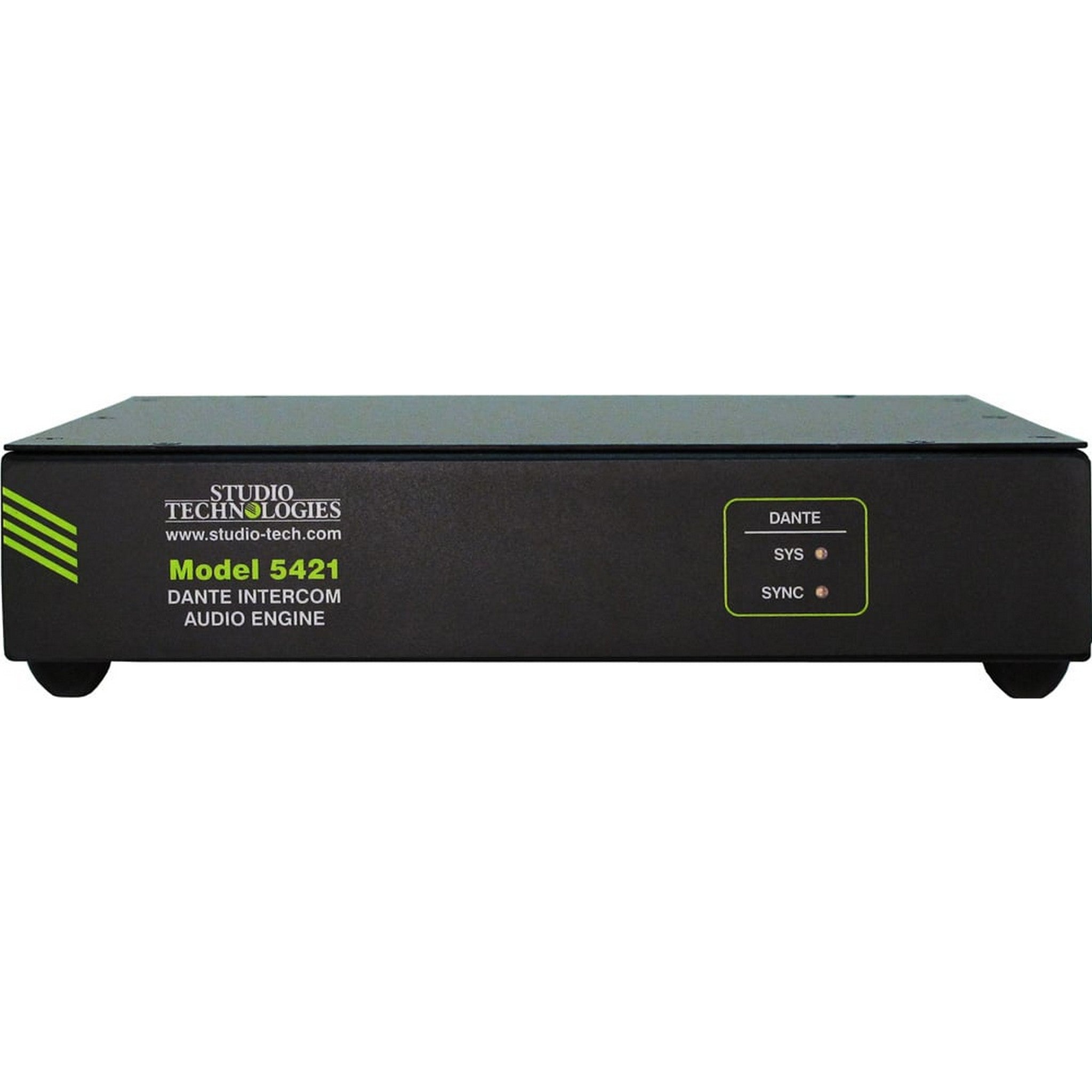

Studio Technologies Model 5421 Dante Intercom Audio Engine The Studio Technologies Model 5421 Dante Intercom Audio Engine is a high-performance, cost-effective, flexible solution for creating party-line (PL) intercom circuits. It's directly compatible with the Studio Technologies' range of 1-, 2-, and 4-channel Dante-enabled beltpacks and other interface-related products. The unit is suitable for use in fixed and mobile broadcast facilities, post-production studios, commercial and educational theater environments, and entertainment applications. Key Features 16-channel audio engine creates multiple virtual party-line (PL) intercom circuits Dante audio-over-Ethernet technology Auto Mix for enhanced audio performance Supports Studio Technologies' intercom beltpacks DDM support and AES67 compliant PoE powered, Gigabit Ethernet interface Configured using STcontroller application Table-top, portable, or optional rack-mount installation Technical Specifications Audio Performance Internal Digital Audio Processing 24-bit, fixed Input-to-Output Audio Processing Latency <100 uSec Auto Mix Sophisticated FPGA-based algorithm provides enhanced party-line (PL) audio intelligibility (selectable on or off) Network Audio Technology Type Dante audio-over-Ethernet (as known as Dante audio-over-IP) AES67-2013 Support Yes (selectable on or off) Dante Domain Manager (DDM) Support Yes Clock Source Dante network or internal (can serve as clock master) Bit Depth 16, 24, or 32 Sample Rate 48 kHz Number of Dante Receiver (Input) Channels 16 Number of Dante Transmitter (Output) Channels 16 Number of Dante Flows 16 receiver, 16 transmitter Network Interface Type 1000BASE-T (Gigabit, GigE, or GbE) per IEEE 802.3ab, twisted-pair Ethernet, Power-over-Ethernet (PoE) supported Data Rate 1000 Mb/s (10 Mb/s not supported; 100 Mb/s supported but not optimal) Auto MDI/MDI-X Support Yes NIC Status LEDs One link and one activity Power Source Power-over-Ethernet (PoE): class 2 (low power, =6.49 watts) per IEEEr 802.3af Connectors Ethernet 1, RJ45 USB Type A receptacle (used only for updating application and FPGA firmware) Software Updating USB flash drive used for updating application and FPGA firmware; Dante Controller or Dante Firmware Update Manager applications can be used for updating Dante interface firmware Front Panel LEDs: 2, Dual-Color Functions Provides indication of status of Dante connectivity Environmental Operating Temperature 0 to 50 degrees C (32 to 122 degrees F) Storage Temperature -40 to 70 degrees C (-40 to 158 degrees F) Humidity 0 to 95%, non-condensing Altitude Not characterized Physical Dimensions Dimensions (WxHxL) 8.7 x 1.72 x 8.3 Inches Weight 1.3 Lbs, 1.5 Lbs with Rack mount installation kit
