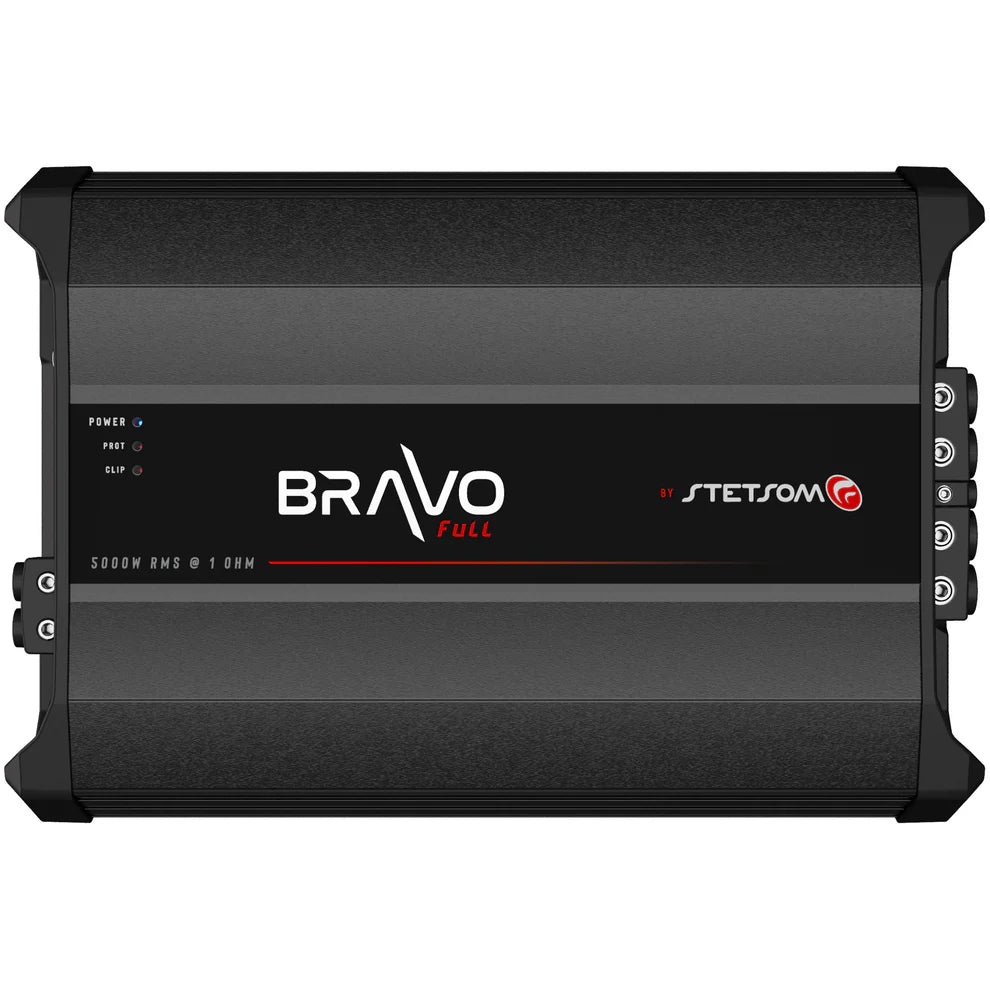

Stetsom BRAVO FULL 5K Digital Full-Range Amplifier Mono 1 Channel Class D 5000 Watts RMS

Technical Specifications (1 Ohm) Number of Channels 1 RMS Power at 1 Ohm @ 14.4V 5300W RMS Power at 2 Ohms @ 14.4V 3300W RMS Power at 1 Ohm @ 12.6V 5000W RMS Power at 2 Ohms @ 12.6V 2800W Minimum input sensitivity 200mV Signal to noise ratio >90dB Frequency response (-3dB) 10Hz ~ 12KHz Crossover low pass 90Hz ~ 12KHz Crossover high pass 10Hz ~ 90Hz Bass boost Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB Input impedance 12K Ohms Supply voltage 9V ~ 16V DC Musical/Bass consumption 242A/485A Dimensions (H x W x L) 3.14" x 9.11" x 13.11" Weight 9.36 lb -- Technical Specifications (2 Ohms) Number of Channels 1 RMS Power at 2 Ohm @ 14.4V 5300W RMS Power at 4 Ohms @ 14.4V 3000W RMS Power at 2 Ohm @ 12.6V 5000W RMS Power at 4 Ohms @ 12.6V 2600W Minimum input sensitivity 200mV Signal to noise ratio >90dB Frequency response (-3dB) 10Hz ~ 12KHz Crossover low pass 90Hz ~ 12KHz Crossover high pass 10Hz ~ 90Hz Bass boost Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB Input impedance 12K Ohms Supply voltage 9V ~ 16V DC Musical/Bass consumption 227A/445A Dimensions (H x W x L) 3.14" x 9.11" x 13.11" Weight 9.36 lb
