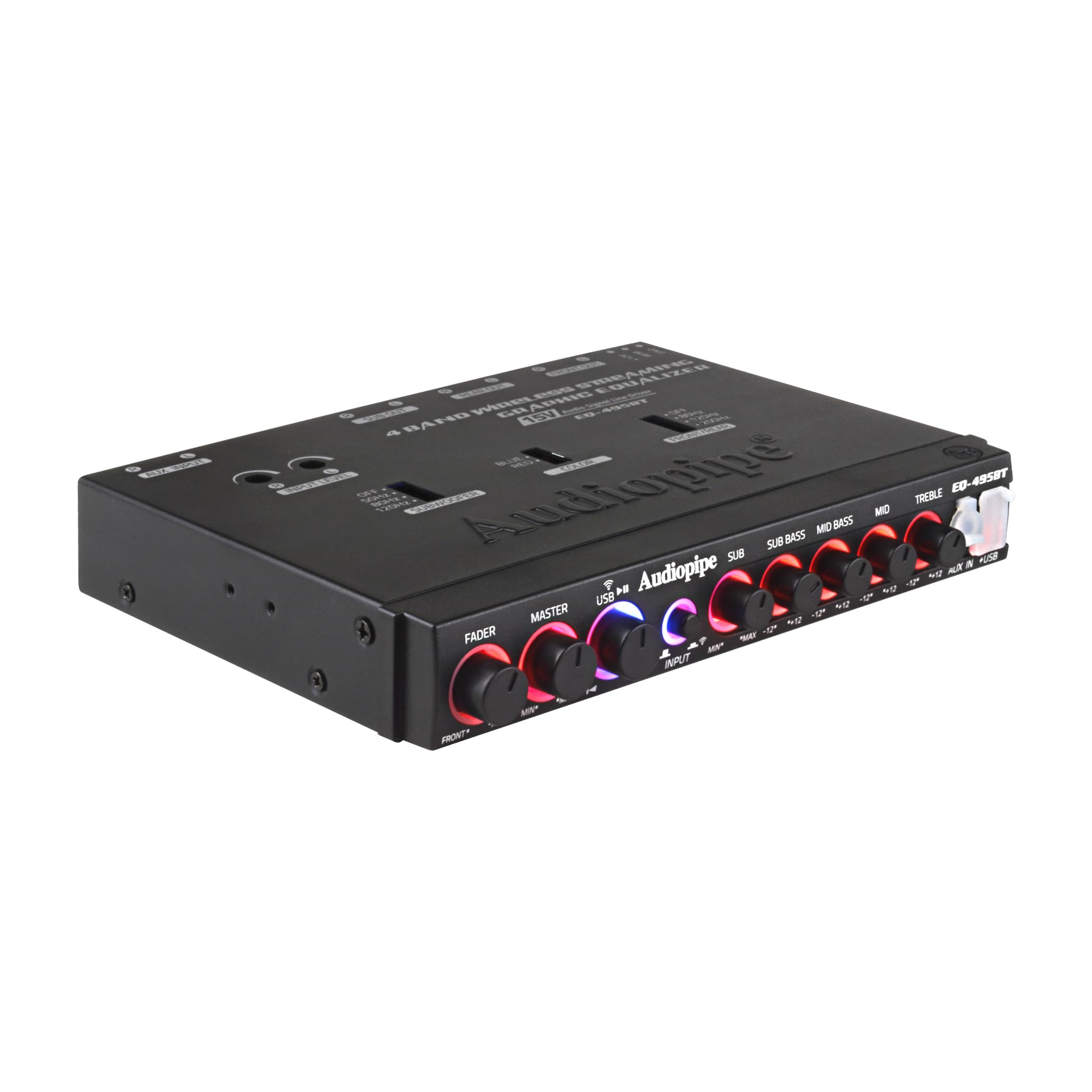

Audiopipe Water Resistant 4Band 15V Half-Din Wireless Streaming Equalizer

Adjustable subwoofer frequency: 50Hz / 80Hz / 120Hz Universal Half-din Chassis for ease of installation Subwoofer output and level controls Gold-plated RCA input connectors Three stereo RCA outputs Audiopipe 4 Band 15V Half-Din Line Driver Wireless Streaming Equalizer EQ-495BT This listing includes: (1) 4 Band 15 Volt Half-Din Line Driver Wireless Streaming Equalizer Installation Materials Features: Four equalization bands (SUB BASS, MID BASS, MID, and TREBLE), each frequency adjustable from -12 to +12dB Subwoofer output uses a built-in 18dB per octave electronic crossover fixed at 50Hz, 80Hz, or 120Hz Three stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers Separate controls for master volume, subwoofer volume (sub level), front/rear fader, and selection of AUX input or wireless streaming Extended frequency response from 10Hz to 50kHz with exceptional 100dB signal-to-noise performance Gold-plated RCA connectors to ensure the best audio signal output ISO mounting holes and removable trim ring for custom installation Wireless music streaming Specifications: Input Range of Gain Control: >40dB Maximum Input Voltage: >10V Input Impedance: >20kOhms Maximum Output Voltage: >15V Volume Gain: >40dB -3dB Low Pass Frequency: 50>80>120Hz -3dB High Pass Frequency: 80>120>200Hz Low Pass/High Pass Slope / OCT: 12dB Equalization Frequencies: 45>120>2200>12000Hz Equalization Cut or Boost: 18dB Distortion at 1kHz (1V): 0.01% Channel Separation at 1kHz (1V): >80dB Signal-to-Noise Ratio: >100dB Frequency Response (-1dB): 10Hz-50kHz
