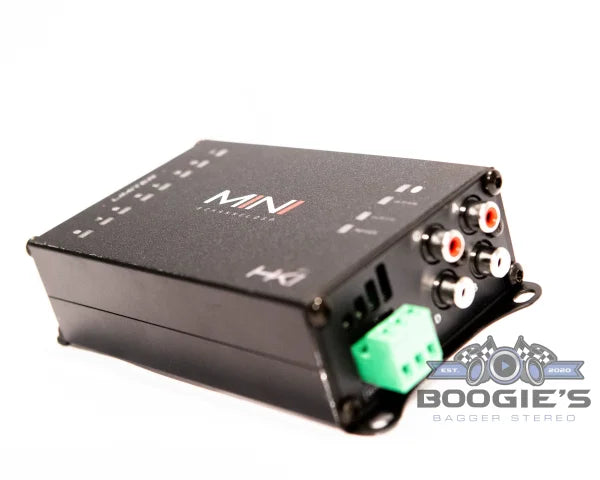

[IN-STORE ONLY] HKI MINI - DIGITAL SOUND PROCESSOR - DSP

8-CHANNEL DIGITAL SOUND PROCESSOR  4 in / 8 out processor that is designed for smartphone programming, low level integration with enough EQ and adjustment capability to tune a majority of builds out there. We knew that this processor would find a home in multiple styles of builds, so we also had the board conformal coated to help protect it in less than ideal environments. 8 Channel DSP 4 Balances RCA Inputs Max Input Level: 4Vrms(+14dBu) Input Impedance: 100KΩ 8 RCA Outputs Max Output Level: 3.5Vrms(+13dBu) Frequency Response: 10 Hz to 24 kHz (-1dB) THD+N: <0.01% Bit Rate: 32 Bits Sampling Frequency: 96 kHz Types of Crossovers: Linkwitz-Riley / Butterworth / Bessel (up to 48dB/oct) Input EQ: 15 bands Output EQ: 8 bands per channel (Q Factor: 0.6 to 0.99) Time Alignment: 0 to 18.95ms Limiter Threshold: -54 to +6 dB Attack: 1 to 200 ms Release: 1 to 988ms Phase Control 3 Presets Dimensions: 5.9 x 4.3 x 1.7 inches This DSP does not have a remote out wire, only remote in.  So an additional plug may be required or a TR4 to help prevent a popping that may occur on some bikes.
