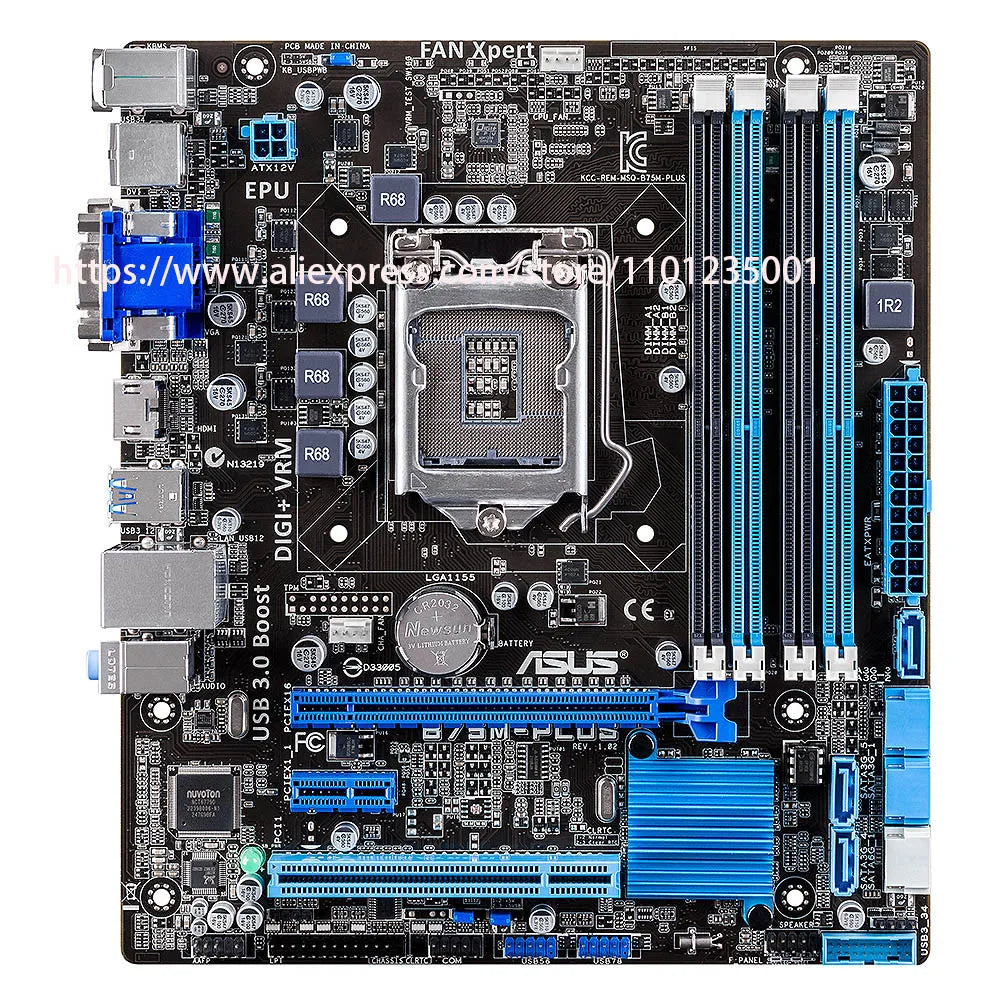

Asus B75M-PLUS Desktop Motherboard Intel B75 Socket LGA 1155 i3 i5 i7 DDR3 32G SATA3 USB3.0 Original disassembly
SPECIFICATIONSBrand Name: AsusChipset: Intel B75Onboard LAN: 1x RJ45Maximum Ram Capacity: 32 GBWith CPU: NoSupport Memory Type: DDR3Number of PCI: 3Storage Interface Type: SATAPackage: NoApplication: DesktopChipset Manufacturer: IntelBack I/O Ports: 1x RJ45Back I/O Ports: VGA(D-Sub)Back I/O Ports: HDMI 1.4Back I/O Ports: DVI-DPCI - E standards: PCI - E 3.0Socket Type: LGA 1155Special Function: NONEUsage Scenario: Enthusiast & OverclockingUsage Scenario: GamingUsage Scenario: Audio & VideoOrigin: Mainland ChinaForm Factor: ATX CPU Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. Chipset Intel® B75 Memory 4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * 1600MHz and higher frequency is supported by Intel® 3rd generation processors. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. * Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default. Graphic Integrated Graphics Processor Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Expansion Slots 1 x PCIe 3.0/2.0 x16 *1 1 x PCIe 2.0 x1 1 x PCI Storage Intel® B75 chipset : 1 x SATA 6Gb/s port(s), gray, 5 x SATA 3Gb/s port(s), blue, LAN Realtek® 8111G, 1 x Gigabit LAN Controller(s) Audio Realtek ALC887/897 8-Channel High Definition Audio CODEC *2 - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback USB Ports Intel® B75 chipset : 4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board) Intel® B75 chipset : 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board) Special Features ASUS Digital Power Design : - Industry leading Digital 3 +1 Phase Power Design - ASUS DIGI+ VRM Utility ASUS Power Design : - ASUS EPU GPU Boost ASUS Exclusive Features : - AI Suite II - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 1 4 x USB 2.0 3 x Audio jack(s)
