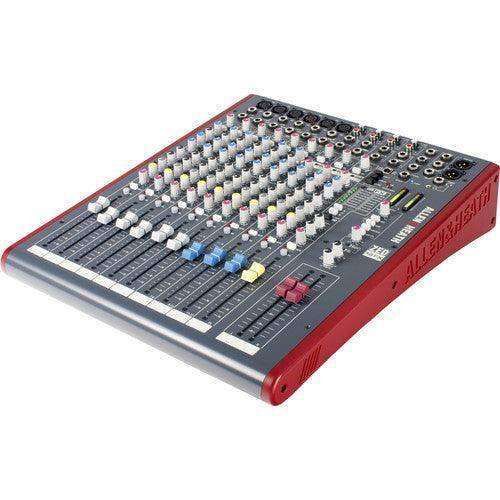

Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects

The multipurpose Allen & Heath ZED-12FX mixer combines six mic/line inputs, three stereo inputs for effect returns and portable music players or keyboards, a 24-bit effects processor, and a USB digital audio interface compatible with Mac and Windows computers-in a compact and portable package small enough for carrying to your gig, whether recording live or in the studio. Channels 1 through 6 can be accessed through balanced XLR or 1/4" mic/line inputs and feature low-noise DuoPre preamps with 69 dB of gain. They are also equipped with responsive, 3-band swept-mid EQs, which utilize MusiQ technology to optimize the Q factor proportional to the amount of boost or attenuation. The built-in DSP engine offers sixteen effects to choose from, ranging from classic reverbs and delays to cascaded delays with reverbs and shimmering flanger and chorus effects. Delay tempo can be set on the fly using the convenient TAP button. The ZED-12FX offers a set of four Aux/FX sends, 48V microphone phantom power, XLR main stereo outputs with inserts, a comprehensive monitoring section with two headphone outputs, and a separate monitor speaker output. Key Features Portable, multipurpose mixer for groups who need to travel light 6 x mono channels with channel inserts 3 x stereo channels with 2-band EQ and inputs for line-level audio signals USB digital audio interface for stereo recording to Mac or Windows computer Wide-gain DuoPre mic/line preamps 24-bit effects processor with 16 time-delay effects—reverbs, delays, flanger, chorus, and more Responsive 3-band, swept-mid EQ with MusiQ technology Flexible monitoring section with 1/4" and 3.5mm headphone outputs XLR L/R main stereo outputs with inserts Mono output jack with mono sum of the main L/R post-fade signals Neutrik XLR and 1/4" connectors 2 x pre-fade Aux sends 1 x post-fade Aux send 1 x FX send for built-in effects Illuminated mute buttons Sound image pans Illuminated PFL and peak-warning indicator ALPS 100mm faders Stereo returns & playback All inputs feature gain control 48V microphone phantom power 12-bar meters Mono/stereo function on auxes 1 & 2 Stereo monitor outs Alt stereo output level control for connecting a pair of monitors separate from the main output speakers  Rack ears available separately Specs Number of Analog Input Channels 12 Number of Mic Preamps 6 Analog Output Channels 1x Stereo Master Output1x Mono Master Output1x Stereo ALT Master Output3x Mono Aux Send Output1x Stereo Tape/Record Output1x Stereo Headphone Output Show More Built-In Effects Yes USB I/O 1x USB-B 1.1 (I/O) Rack Mountable No Mixer Number of Analog Input Channels 12 Number of Mic Preamps 6 Analog Output Channels 1x Stereo Master Output1x Mono Master Output1x Stereo ALT Master Output3x Mono Aux Send Output1x Stereo Tape/Record Output1x Stereo Headphone Output Signal Processing Built-In Effects Yes Digital Audio Sample Rates AD/DA Conversion:32 / 44.1 / 48 kHzDSP:48 kHz Bit Depth 16-Bit DSP 24-Bit Performance Headroom +21 dB Frequency Response Line Input to Main Output:10 Hz to 30 kHz +0.5/-1 dB (Unity Gain)Mic Input to Main Output:20 Hz to 30 kHz +0.5/-1 dB (30 dB Gain)Stereo Input to Main Output:10 Hz to 30 kHz +0.5/-1 dB Max Input Level XLR Input:+17 dBu (Mono)1/4" Line Input:+30 dBu (Mono)1/4" / RCA Input:+10 dB (Stereo) Output Level XLR Main Output:0 dBu (Nominal)+21 dBu at Max Gain1/4" Aux/FX Output:0 dBu (Nominal)+21 dBu at Max GainTape/Record/Monitor Output:0 dBu (Nominal)+21 dBu at Max Gain EIN -127 dBu at Max Gain (150-Ohm Input) Noise Floor Main Output:-88 dBu (Master Level at Unity, Channel Levels at -∞, 22 Hz to 22 kHz) THD+N Line Input to Main Output:0.005% at Unity Gain (1 kHz)Mic Input to Main Output:0.004% at Unity Gain (1 kHz)0.014% at +30 dB Gain (1 kHz)Stereo Line Input to Main Output:0.003% at Unity Gain (1 kHz) Connectivity Analog Inputs 6x 1/4" TRS Balanced/Unbalanced Line Input6x 1/4" TRS Balanced/Unbalanced Line Input (3 Stereo Pairs)1x Stereo RCA Return6x 1/4" TRS Channel Insert2x 1/4" TRS Main Insert6x XLR 3-Pin Balanced Mic Input Analog Outputs 1x 1/4" TRS Headphone Output1x 1/8" / 3.5 mm TRS Headphone Output1x Stereo RCA Tape Output1x Stereo RCA Alt Output2x 1/4" Aux Send (Pre-Fader)1x 1/4" Aux Output (Post-Fader)1x 1/4" FX Send (Post-Fader)2x XLR 3-Pin Balanced Main Output1x 1/4" Mono-Summed/Main Output (Post-Fader) Phantom Power +48 V, Selectable On/Off USB I/O 1x USB-B 1.1 (I/O) USB I/O Capacity 2x Input / 2x Output Compatibility OS Compatibility macOSWindows Power AC Input Power 100 to 240 VAC, 50 / 60 Hz Power Consumption 40 W (Maximum) Physical Rack Mountable No Dimensions 15.2 x 18.3 x 3.9" / 38.6 x 46.5 x 9.9 cm Weight 14.3 lb / 6.5 kg Packaging Info Package Weight 18.5 lb Box Dimensions (LxWxH) 25 x 21 x 10"
