Atlona 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE (70m) - AT-UHD-EX-70C-RX

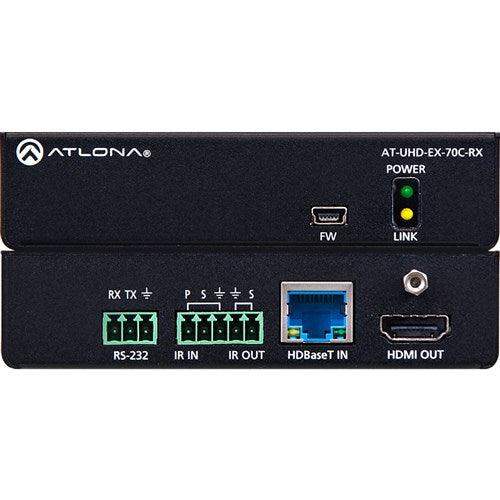

The Atlona AT-UHD-EX-70C-RX is an HDBaseT receiver for AV signals up to 230 feet (70 meters) over category cable with RS-232 and IR control plus Power over Ethernet capability. It is compatible with video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V Power over Ethernet. The AT-UHD-EX-70C-RX is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter rack width metal enclosure for easy installation with rear panel I/O ports for uncluttered wire management. Use with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system control. This receiver is used in commercial and applications that call for an HDBaseT receiver with a compact form factor that allows for simple mounting behind displays and at projectors. These applications will not require an AC outlet for the receiver, since the receiver is powered by an Atlona switching product. This receiver will also be used to simplify control of the AV system by working with 12 volt-based IR receivers as well as passing through RS-232 commands. Features Receives 4K HDMI up to 230' Receives Power over HDBaseT Bidirectional IR Control Includes IR Emitter HDCP 2.2 Compliant Supports Multi-Channel Audio Specs General Information Manufacturer Atlona Technologies Manufacturer Part Number AT-UHD-EX-70C-RX Manufacturer Website Address http://www.atlona.com Brand Name Atlona Product Model AT-UHD-EX-70C-RX Product Name 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE Product Type Video Extender Receiver Technical Information Connectivity Technology Wired Number of Output Devices Supported 1 Maximum Operating Distance 229.66 ft Video Graphics Modes 4K Maximum Video Resolution 4096 x 2160 Interfaces/Ports Network (RJ-45) Yes HDMI Out Yes USB Yes Serial Port Yes Number of Network (RJ-45) Ports 1 Number of USB Ports 1 Number of HDMI Outputs 1 Media & Performance Media Type Supported Twisted Pair Twisted Pair Cable Standard Category 7 Physical Characteristics Form Factor Rack-mountable Miscellaneous Package Contents 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE User Guide Mounting Brackets IR Emitter Environmentally Friendly Yes Environmental Certification RoHS Warranty Limited Warranty 10 Year
