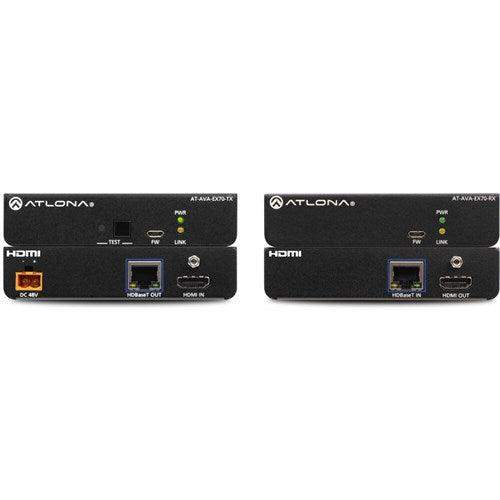

Atlona Avance 4K HDMI Transmitter and Receiver Kit with Remote Power - AT-AVA-EX70-KIT
Extend your transmission of HDMI DCI/UHD 4K60 video signals up to 130' using the Avance 4K HDMI Transmitter and Receiver Kit with Remote Power from Atlona. The kit includes a transmitter, receiver, one power supply, and surface mounting hardware to fit these compact units easily into your A/V environment in a classroom, conference room, or event space. The transmitter inputs up to DCI/UHD 4K video via HDMI from a computer, Blu-ray, camera, or other HDMI source, and it sends the signal via HDBaseT over Cat 6/6a cable up to 130' to the receiver. If transmitting up to 1080p60 video resolution, you can send the signal up to 230' over Cat 6/6a. The units also support embedding up to 24-bit 192 kHz audio. The receiver is powered via the transmitter's power supply over HDBaseT, so you only need one power adapter. The extender system supports EDID filtering, HDCP 1.4/2.2 as well as CEC passthrough control. The front of the units feature LED status indicators for power, test, and link, and all the connectors are on the back. A micro-USB port on each unit allows you to update the firmware with future updates. Features TX/RX HDMI-over-HDBaseT Extender Set Extend DCI/UHD 4:2:0 Video up to 130' Extend 1080p60 HDMI Video up to 230' Connect 4K and HD Sources and Displays TX Sends Power to RX via HDBaseT EDID Management, HDCP 2.2 Compliant Specs General Information Manufacturer Atlona Technologies Manufacturer Part Number AT-AVA-EX70-KIT Manufacturer Website Address http://www.atlona.com Brand Name Atlona Product Name Avance 4K/UHD HDMI Extender Kit with Remote Power Product Type Video Extender Transmitter/Receiver Technical Information Connectivity Technology Wired Number of Input Devices Supported 2 Number of Output Devices Supported 2 Maximum Operating Distance 230 ft Video Graphics Modes 4K UHD Maximum Video Resolution 4096 x 2160 Interfaces/Ports Network (RJ-45) Yes HDMI In Yes HDMI Out Yes USB Yes Number of Network (RJ-45) Ports 2 Number of USB Ports 2 Number of HDMI Inputs 1 Number of HDMI Outputs 1 Media & Performance Media Type Supported Twisted Pair Twisted Pair Cable Standard Category 7 Power Description Frequency 50 Hz 60 Hz Physical Characteristics Transmitter Height 0.93" Transmitter Width 4.20" Transmitter Depth 2.95" Receiver Height 0.93" Receiver Width 4.20" Receiver Depth 2.95" Transmitter Weight (Approximate) 8.82 oz Receiver Weight (Approximate) 8.82 oz Miscellaneous Package Contents 1 x Transmitter 1 x Receiver Environmentally Friendly Yes Environmental Certification RoHS
