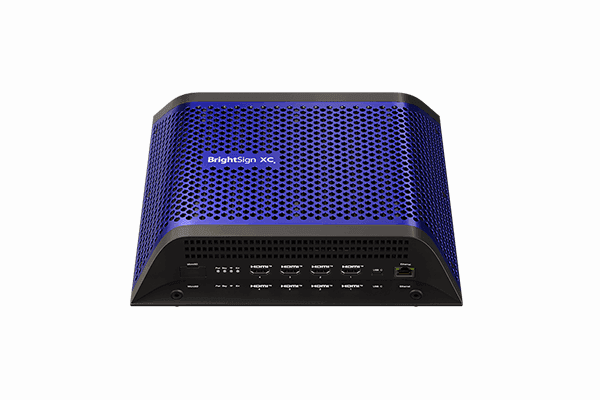

BrightSign XC4055 | 8K Expanded I/O HTML5 Player
Quad Output 8K Digital Signage Media Player The Brightsign XC4055 has 4 HDMI outputs, professional HTML performance, and 8K output. With Brightsign's solid-state platform, BrightSign XC5 models are reliable and have the capability to power up to 4 screens at once from a single player. The multi-output players and the hardware 4K video rotation is created for easy video wall usage. The HTML content supports 3D graphics, Web GL, JavaScript, and interactivity in 8K. Features BrightSign XC4055 Features: PC class HTML performance 4 HDMI outputs Industrial design Real time clock with 14 days uninterrupted operation Plays 8K video graphics 8K60p with 8-bit color Powered by BrightSign OS Specifications BrightSign XC4055 Specifications: Video Engine Decoder: Single 8K @ 60p video decoding: X (10-bit) 4K @ 60p video decoding: Quad (10-bit) HDR10, HLG & Rec.2020/BT.2020 Support: Yes 4K video rotation: Yes 8K Full Resolution Graphics: Yes HTML5 Performance: Elite PC class power, 2x the power of XC2055 HTML: Full OpenGL Support: Yes Media Formats: 8K video codecs: H.265 8K Video Containers: .ts, .mov, .mp4, .mkv 4K Video codes: H.265, H.264 4K Video Containers: .ts, .mov, .mp4, .mkv Full HD Video Codecs: H.265, H.264 (MPEG-4, Part Full HD Video Containers: .ts, .mpg, .vob, .mov, Images: BMP, JPEG, PNG up to 8K resolution Audio: MP2, MP3, AAC and WAV (AC3 is passed Display Resolution: Supports all common screen resolutions up to 8K (7680x4320 @60fps) Supports customizable display resolutions with unique aspect ratios Hardware Interfaces: HDMI Outputs: 2 HDMI 1 Out: X (HDMI 2.1a) HDMI 2 Out: X (HDMI 2.0a) HDMI 3 Out: X (HDMI 2.0a) HDMI 4 Out: X (HDMI 2.0a) USB Type C port: supports high-speed host mode & provides 5V/1A power to peripheral devices: 1 USB Type A port: provides 5V/1A power to peripheral devices: 1 12-pin Phoenix GPIO port with 8 bi-directional GPIOs: Yes 3.5mm RS-232 Serial Port: Yes 3.5mm IR In/Out: Yes 3.5mm Audio Out (analog & SPDIF digital): Yes Gigabit Ethernet: Yes External micro SD Slot for primary storage: Yes M.2 PCIe for optional NVMe SSD storage: Yes E Key M.2 for optional dual antenna Wi-Fi/Bluetooth module: Yes 4 Status LEDs in two locations: Yes Reset and Service Buttons: Yes Real Time Clock with 14 days of life: Yes Locking Power Connector: Yes Software & Services: Free BrightAuthor:connected Software: Yes BSN.cloud: Yes Accessories: BP200 & BP900 USB Button Pads: Yes WD-105 Dual Antenna Wireless/Bluetooth Module: Yes MicroSD Class 10 Cards (various capacities): Yes 256GB PCIe NVMe M.2 SSD: Yes General: 19V / 4.7A Power Supply: Yes Dimensions (WxDxH): 253.2 x 232.12 x 48mm Multi-Country Power & Regulatory Approvals: Yes Built-in Wall Mounting: Yes Warranty: 1 year parts and labor
