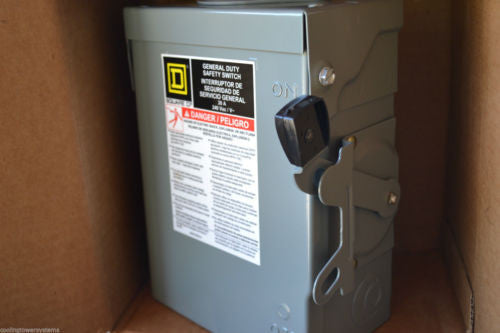

SQUARE D 30 AMP FUSED SAFETY SWITCH 3R OUTDOOR 240 VAC 1.5 HP 60HZ P/N:D221NRB NSN:5930-00-419-7400

SAFETY SWITCH NSN: 5930-00-419-7400 | Model: TG3221RH A switch designed with its actuator extending from the box which incloses the circuit elements. The door or cover of the box is designed so that it may be readily opened or removed, thus providing relatively easy access to the circuit elements. The item is commonly designated as a safety switch or entrance switch. May be fusible and may have interlocking device. NSN Properties and Flags NATO Stock Number 5930-00-419-7400 DEMIL NO Hazardous Locations/environmental Protection Raintight Electrical Power Rating At Maximum Ac Voltage Rating 1.5 horsepower Maximum Voltage Rating In Volts 240.0 ac Nonpile-up Contact Arrangement 2 pole, single throw, both positions maintained single switch unit Contact Load Current Rating At Maximum Rated Voltage 30.000 amperes resistive ac Test Data Document 81348-w-s-865 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification
