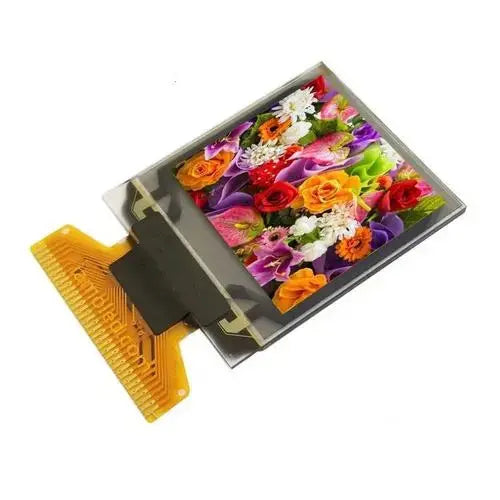

1.1" PMOLED Display - MCU

1.1" PMOLED Display - MCU

$19.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}

Display Specifications Display Mode: Passive Matrix Display Color: 65,536 Colors (Maximum) Drive Duty: 1/96 Duty Outline Drawing: According to the annexed outline drawing Number of Pixels: 96 (RGB) × 96 Panel Size: 25.90 × 30.10 × 1.30 (mm) Active Area: 19.852 × 19.852 (mm) Pixel Pitch: 0.069 × 0.207 (mm) Pixel Size: 0.049 × 0.187 (mm) Weight: 2.07 (g) Dimensions Resources Datesheet: DM-PMOLED112-004
