7inch FPV Drone Manta 7 X Lite Long Range Cinematic FPV Drone RTF Flying kit with Transmitter and Flight Goggles

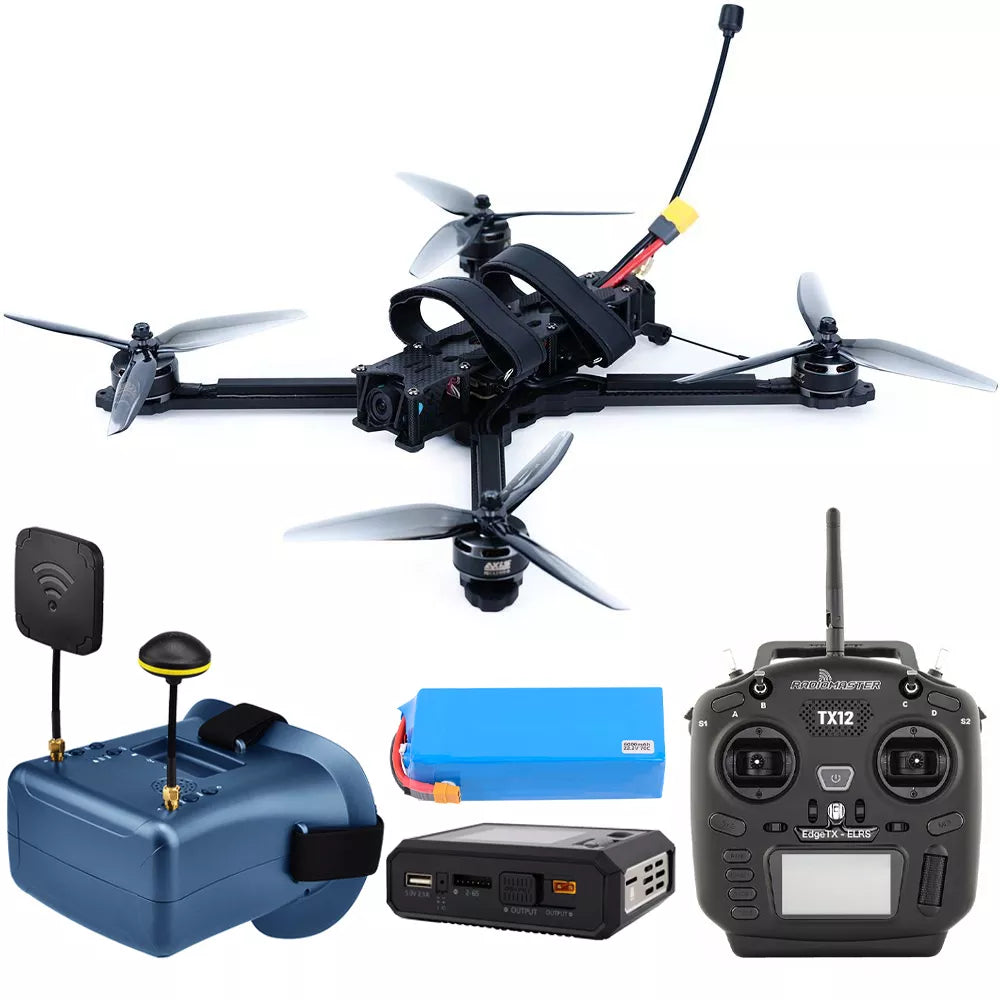

7inch FPV Drone Manta 7 X Lite Long Range Cinematic FPV Drone RTF Flying kit with Transmitter and Flight Goggles 6000mAh Battery/Charger Note: The package includes batteries, chargers, transmitters, and flight goggles, so you can fly directly after receiving the goods! Product parameters:Product name: Manta 7"X LiteStructure: True XMotor: AX2807 1350kvStack: Argus ECO 60A+F405; Argus 55A+F722Props: 7inchWheelbase: 340mmBottom plate thick: 3mmTop plate thick: 2mmCarbon material: T700Bottom-to-top distance: 25mmArm thickness: 6mmLens space: 14-20mmStack mounting: M3*30.5mmVTX mounting: M2*20/25.5mm; M3*30.5mmProp size: Max 7 inchMotor install hole: M3*16/19mmWeight(include propellers):650gPayload: 2.5kgFlying Time: With Load Flying Time: 10-15min; No Load: 25minBattery: 6000mAh 6SCharger: ToolkitRC M7AC 2-6S multi-function balance charger for aircraft model lithium batteries supports DC and ACFlying Distance: About 10kmMax Speed: 140km/hMax Altitude: 6000mPackaging: 2.5kg / 450*450*150mmTransmitter：Item: Radiomaster TX12 MK IIFrequency: 2.400GHZ-2.480GHZRF Chip: ExpressLRS (ELRS)Working Current: 320mA@8.4VVoltage Range: 6.6-8.4v DCRange: > 2km (depending on receiver)Radio Firmware: ELRS Version: EdgeTX (Transmitter) / ExpressLRS (RF module), CC2500 Verison: EdgeTX (Transmitter) / MPM (RF module)Channels: Up to 16 (depending on the receiver)Display: 128*64 Monochrome LCD displayGimbal: High precision hall gimbalsExternal module: JR/FrSKY/Crossfire compatibleUpgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC softwareUSB Charging: QC3 USB-CWeight: 363gSize: 170*159*108mmFlight Goggles：Model: LS-800DVideo input: NTSCMedia format: jpg, png, JPEG, AVI, MOV, otherResolution: 854X480Screen size: 5.0 inchesMaterial: plasticAdditional functions: USB chargingProduct weight: 690 grams (including packaging)Wearing method: head-mountedMemory: supports 128G expansionBattery: 3.7V 2000mah (built-in)Operating system: otherAppearance size: 180*145*82mmPacking list: charger, two antennas, whole machine, data cableFind out about SKYZONE SKY04O PRO FPV Goggles here! Frame: 7-inch CarbonStructure: True XWheelbase: 340mmBottom Plate Thickness: 3mmTop Plate Thickness: 2mmCarbon Plate Material: T300/T700Height of Electronic Device Layer: 25mmArm Thickness: 6mmCamera Spacing: 14 to 20mmStack Mounting Hole: M3*30.5mmVTX Mounting Hole: M220/25.5mm; M330.5mmPropeller Installation Size: Max 7 inchesMotor Mounting Hole: 16mm16mm/19mm19mmTop Plate Size: 15.8*3.5cmBottom Plate Size: 15.8*7.9cm Motor: 2807 1300KVKV Value: 1300KVOperating Rated Voltage: 6SNo-load Current: 1.06A/10VPhase Resistance: 77mΩMotor Weight: 47gMaximum Current: 45.4AMaximum Power: 1059WMaximum Thrust: 2.4kgRecommended Propellers: 7040, 7042 Flight Control: F405Size: 37×37mmMounting Holes: 30.5×30.5mm9V: 9V regulated power supply output interface, max current 2A5V：5V regulated power supply output interface, maximum current 3A4.5V：Receiver power connector (USB power supply only)CR: Current monitoring portM1: camera reference pin (according to the flight control firmware version)VI: Camera input port    VO: Graphic output interfaceLED: RGB light strip interfaceB-：Connect to the negative terminal of the buzzer, positive terminal connects to B+RC: Receiver SmartPort interface    Rssi: Rssi signal input port ESC: 60A-6SModel: BLHeli_S 4IN160V1Continuous Current: 60ABurst Current: 70A (10s)BEC: NoCurrent Sensor: YesBattery Cells: 2-6SWeight: 21.5gSize: 37*42.7mmMounting Hole Spacing: 30.5*30.5mm Camera: B19 Product Manual Cam 1500TVLModel: HD 1500TVL (upgraded version, with OSD tuning board)Image Sensor: 1 / 3′CMOSPixels: 1500TVLLens: 2.1mmSignal System: PAL / NTSC (adjustable via OSD)Signal-to-Noise Ratio: ＞60Db（AGC OFF）Electronic Shutter Speed: PAL: 1 / 50-100.000; NTSC: 1 / 60-100,000Electronic Shutter: PAL: 1/50 - 100,000; NTSC: 1/60 - 100,000"Automatic Gain Control (AGC: Low/Medium/HighBacklight Compensation (BLC): YesMinimum Illumination: 0.001Lux / 1.2FWDR: D-WDRDNR: 3DNRDay/Night: Auto/Color/B&WPower Supply: DC 5V-30V Image transmission VTX: 5.8G 40CH 3WSupported Voltage: 7-28VBEC: 5V / 500mATransmission Power: 25mW / 13.95dBm; 2500mW / 34.04dBmAntenna Interface: MMCXOutput Power: PIT / 25 / 2500mWStandard 40 Channels: A / B / E / F / RVideo Transmission Protocol: SmartAudioMounting Holes: 20X20.M2Size: 25mmX37mmx6.5mmWeight: 19g Antenna: 5.8G RHCP 150MM*The whole is made of imported PC+ABS material which can withstand high strength impact.    *Impact resistant double-sheathed semi-rigid cable.*Root reinforcement design, 360 ° protection. RX: ELRS 915MHzProcessing Chip: ESP8285RF Chip: SX1276IMLTRTPower Input: 5VOperating Current: 100mAOperating Protocol: CSRFReceiving Frequency Range: 915MHz or 868MHzSize: 12mm12mm3mmWeight: 0.6g (without antenna)Antenna Connector: IPEX1Telemetry Output Power: <17dBmFirmware Update Method: WIFI Propellers: HQ7*3.5*3Type: 7040Blades: 3Material: Fiberglass NylonPitch: 5inCenter Hole lnner diameter: 5mmWeight/g: 16.8g Forword:*We focuses on user experience and carefully studies user sore points. In the field of freestyle, we continuously absorb user feedback and summarise product design experience. Combines CNC aluminum parts with high quality carbon plates to bring the freestyle frame with a unique and innovative design in the industry. Feature:1. The frame adopts an innovative CNC split aluminum structure design, with 6MM thickness quick-release design, which is not only convenient but also ensures the strength, stability and high security of the frame.2. Double strap ties for secure battery installation. Recommended Configuration:MOTORS: Axisflying 2807 1350KVESC: 60A -6SFC: Axisflying F405Propellers: HQ7*4*3 or HQ7*3.5*3 (2 sets)Camera: Caddx H1Antenna: 1.2GVTX: 1600mW 5.8G / 800-1000mW 1.2G-1.3G Performance:Payload：2.5 kgFlying time：About 10 minutes (based on the test results of a 1.6kg load and a 6S 6000mAh battery, you can upgrade to a larger capacity battery) **We are the source manufacturer, welcome to purchase in bulk!
