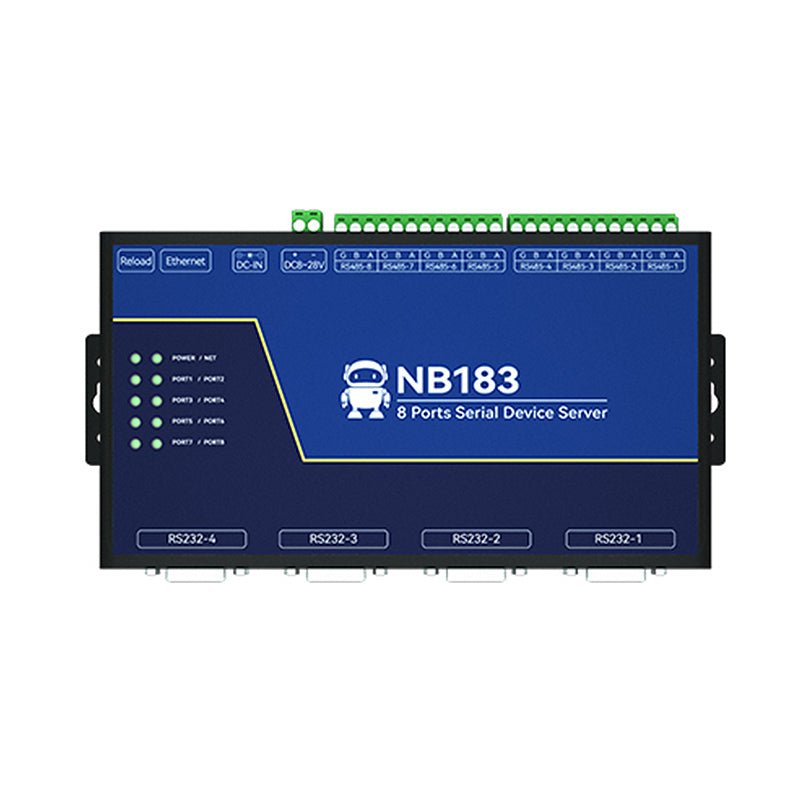

EBYTE NB183S 8-Channel Serial Server RS485/232/422 to RJ45 ModBus RTU to TCP Build-in Watchdog MQTT/HTTP IOT Module

Ebyte NB183S industrial serial server rs485 to rj45 ethernet Serial port rs232/485 to Ethernet 8 port serial port server [Interface signal]：serial port (RS485/RS422/RS232), network port (RJ45) [Product size]：198*109*26.5mm [Network protocol]：TCP/UDP/MQTT/HTTP [Installation method]：positioning hole installation [Weight]：518g ± 5g [Introduction]：The serial server series products independently developed by Ebyte integrate the TCP/IP protocol stack, which can realize two-way transparent transmission of data from serial port to Ethernet port, Modbus protocol conversion, serial port device cloud and other functions. The industrial design ensures the stability of the equipment in the harsh working environment, and the rich indicator light effects are used to feedback the different working states of the equipment. Project interface explanation Power crimp terminal DC 8～28 V, can not input power at the same time Crimping terminal: 5.08mm*2 phoenix terminal;DC female head:
