Ebyte ME31-XAAX0440 4 way Analog input Modbus gateway support network module ethernet io module lorawan device

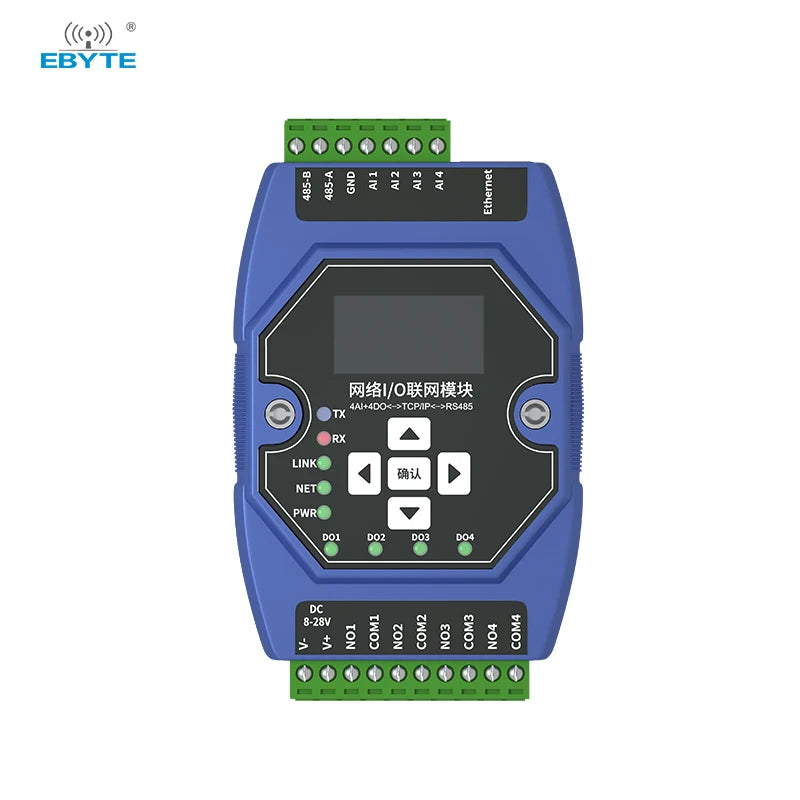

ME31-XAAX0440 Ebyte OEM/ODM ME31-XAAX0440 4 way Analog input Modbus gateway support network module ethernet io module   [Specifications]：4AI+4DO [AI channels]：4-way [DO channels]：4-way [Installation mode]：DIN-Rail Mounting [Product size]：121*72*34mm [Product weight]：148±5g [Introduction]：ME31-XAAX0440 has 4 Type A relay outputs and 4 analog (0-20mA/4-20mA) inputs, supports Modbus TCP protocol or Modbus RTU protocol for acquisition and control, and the device can also be used as a simple Modbus gateway (Automatically send commands of non-local Modbus addresses through the serial port/network port) network I/Onetworking module. Name Parameter Nominal Voltage DC 8～28V Power indicator Blue LED indication Communication Interface RJ45, RS485 Baud rate 9600bps (customizable) Protocol Modbus TCP, Modbus RTU Device address The default value is 1 and can be changed AI channels 4 Acquisition characteristics Single-ended input Input type 0-20mA、4-20mA AI resolution 12 bits Precision 3‰ Acquisition frequency 10Hz Input instructions LED screen display DO channels 4 DO output type Type A relay DO output mode Level output, pulse output Relay contact capacity DC30V/7A、AC250V/7A Output indication Red LED indication Product Size 121mm * 72mm * 34mm (Length*width*height) product weight 148 ± 5 g Working temperature and humidity -40 ～ +85℃、5% ～ 95%RH(No condensation) Storage temperature and humidity -40 ～ +105℃、5% ～ 95%RH(No condensation) Installation method Rail installation
