ICM Controls ICM495-30A 30 Amp Disconnect with Internal Surge Protection (Fused)

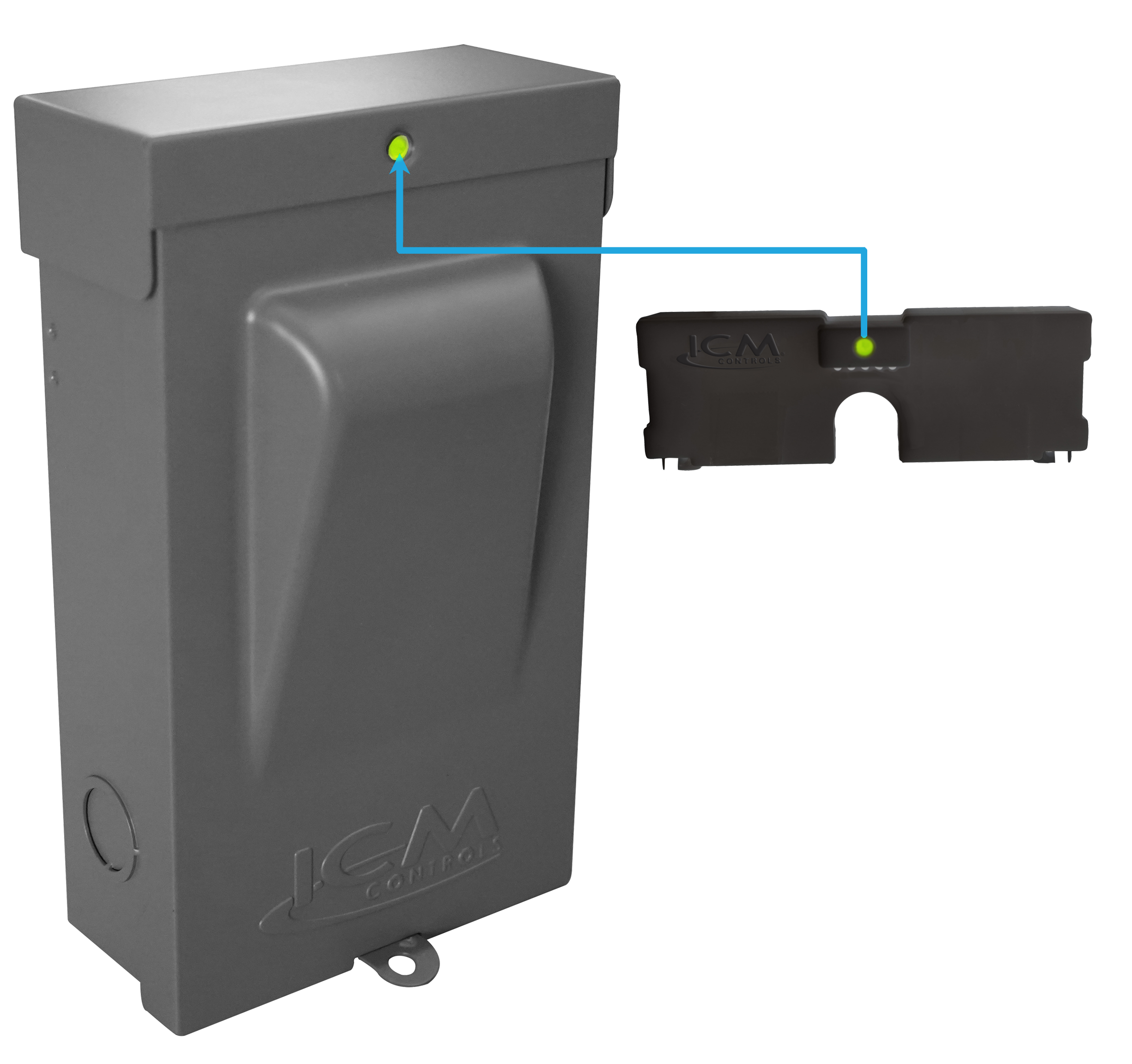

ICM Controls ICM495-30A 30 Amp Disconnect with Internal Surge Protection (Fused) The ICM495 is a UL Listed Electrical Disconnect with an Internal Surge Protective Device built-in. The ICM495 is available in two models 30A Fused and 60A Non Fused. The included Surge Protective Device is intended for 120VAC Single-Phase or 240VAC Split-Phase configurations. Designed to protect equipment from transient surges. The ICM495 is a great low cost option to protect some of the most valuable equipment on the property, including: Air conditioning units, heat pumps, mini-split systems, pool & spa equipment and more… UL Listed Electrical Disconnect including both enclosure & surge protector 120VAC single-phase, 240VAC split-phase Features an internal surge protective device Maximum Surge Current Rating of 100kA  Highest UL rating for nominal discharge current (in 20kA), for increased longevity & durability of the SPD Constructed with 2 high-quality thermally protected MOV’s (TFMOV)  Completely factory wired for quick and easy installation NEMA type 3R rated powder coated metal enclosure for indoor/outdoor use  Fully accessible mounting holes, no disassembling required Braided strap thoroughly grounding both the enclosure and cover LED indicator light showing when surge protection is operational 30A Fused & 60A non-fused models available Made in the USA Limited lifetime product, up to a 3-year $10,000 connected equipment warranty Protects Against: Lightning strikes Power outages & recoveries Downed power lines Startup of larger equipment Equipment failure Short circuits and more...   SPECIFICATIONS: Service Voltage: Split Phase 240 VAC; 30A at -40°C min. and 25°C max., 240 VAC; 25A at -40°C min. and 55°C max., 240VAC; 60A at -40°C min. and 55°C max. Short Circuit Current Rating (SCCR): 10 kA Maximum Surge Current: 100 kA (single event) Nominal Discharge Current (In): 20 kA (15 multiple events) SPD Type: Type 2 applications only Surge Protection Technology: TFMOV Protection Mode: L1-L2, L1-G, L2-G Maximum Continuous Operation Voltage (MCOV): L-L: 300 VAC, L-G: 150 VAC VPR (Vpk): Mode: L-L = 1200, L-N = 700 Input Power Frequency: 50/60 Hz Diagnostics: Green LED indicates surge protection present Enclosure Rating: NEMA/Type 3R metal enclosure for outdoor and indoor installation Installation Point: Located within sight of the motor controller/equipment Dimensions: 9.0” L x 5.25” W x 2.50” D Operating Temperature: -40°F to 131°F (-40°C to 55°C) Operating Humidity: Less than 85%, non-condensing Operating Altitude: Less than 2000 meters Agency Certification and Approvals: ANSI/UL1449 5th Edition cULus Listed Device   REPLACES: All standard disconnect boxes rated for equal voltage and current configurations: 30A – MARS: 83916, RectorSeal: 96417 w/ RSH-50 60A – MARS: 83915, RectorSeal: 96419 w/ RSH-50     Sell Sheet Installation Guide
