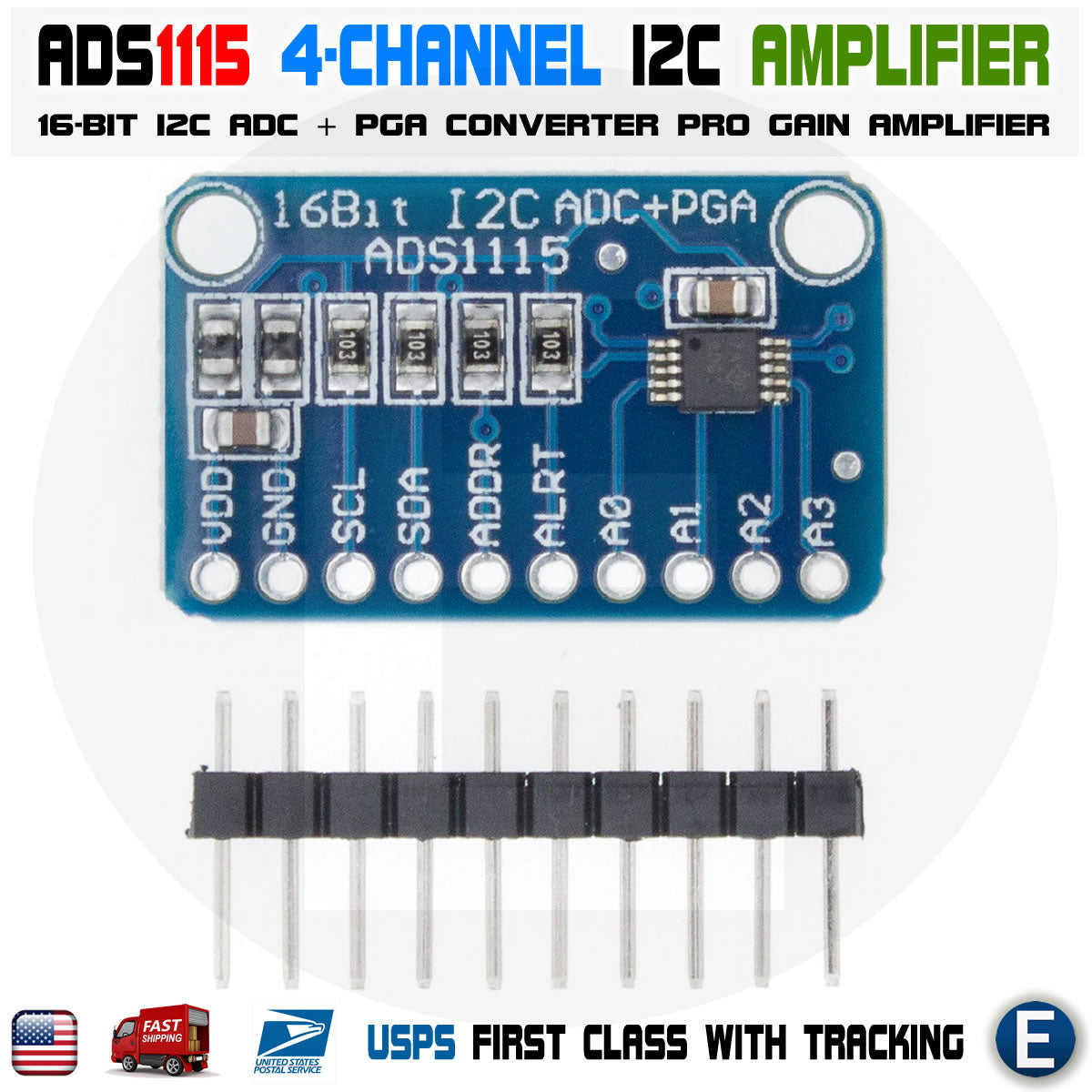

ADS1115 Module 16 Bit I2C ADC PGA 4 channel Pro Gain Amplifier Arduino RaspberryPi

Features: ADC Bit rate: 16 Bit Interface Type: I2C Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs Input voltage: 2.0-5.5v Channel input voltage :0-VDD Continuous Mode: Only 150μA Single-Shot Mode: Auto Shut-Down PROGRAMMABLE DATA RATE: 8sps-860sps Input range programmed control, 7 types input ranges: -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit addresses between 0x48-0x4B Size:18mm*28mm   Applications: Portable instrumentation Consumer goods Battery monitoring Temperature measurement Factory automation and process controls   Package Included: 1 x 16 Bit I2C ADS1115 Module ADC 4 channel with Pro Gain Amplifier for Arduino RPi
