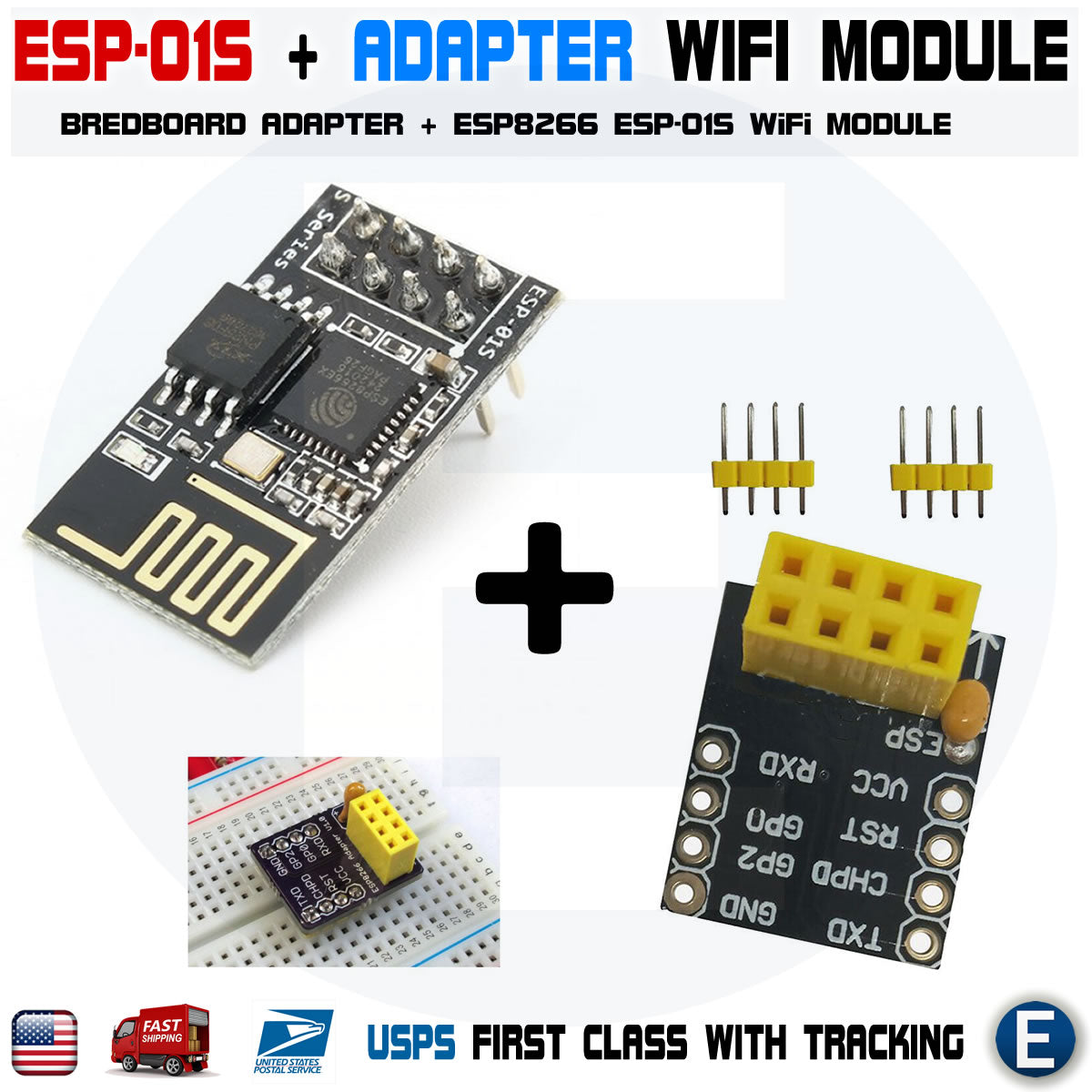

ESP-01S ESP8266 Module Wifi + Breakout Breadboard Arduino ESP-01 Updated Ver.

ESP-01S ESP8266 Serial Module   Features: Support 802.11 b/g/n standard, Wi-Fi direct (P2P), soft-AP. Integrated TCP/IP protocol stack. Integrated TR switch, balun, LNA, power amplifier and matching network. Integrated PLLs, regulators, DCXO and power management units. +19.5dBm output power in 802.11b mode. Power down leakage current of Integrated low power 32-bit CPU could be used as application processor, 1MB flash memory. SDIO 1.1 / 2.0, SPI, UART, STBC, 1×1 MIMO, 2×1 MIMO. A-MPDU & A-MSDU aggregation & 0.4ms guard interval. Wake up and transmit packets  Standby power consumption     Specifications: Wireless standard:802.11b/g/n Frequency range: 2.4GHz-2.5GHz(2400MHz-2483.5MHz) Data interface: UART/HSPI/I2C/I2S/IR remote control/GPIO/PWM Operating voltage: 3.0-3.6V(recommended 3.3V) Operating current: average 80mA Operating temperature:-40~125℃ Wireless network mode: station/softAP/SoftAP+station Safety mode: WPA/WPA2 Encryption type: WEP/TKIP/AES Network protocol: IPV4/TCP/UDP/HTTP/FTP   Breadboard Adapter   This is a breadboard adapter for the popular ESP-01 model of the ESP8266 serial-to-WiFi transceiver module. As ESP-01 Pin arrangements are not breadboard friendly and are not labeled, which makes it little inconvenient for rapid prototyping.This breadboard adapter will help you to make prototyping with esp-01 module much more easier. This breakout conveniently offers clear pinout silkprint on top and will nicely fit your prefered breadboard. Last but not least, we added a 0.1µF decoupling capacitor so the ESP-01 will always run smoothly and without a hitch. Connection: URAT Adapter 3.3V VCC 3.3V CH-PD TX RX RX TX Choose both NL CR 15200 baud rate Package Included: 1 x ESP-01S ESP8266 Serial Module 1 x ESP-01 Breakout Board Breadboard Adapter 2 x 4P male header
