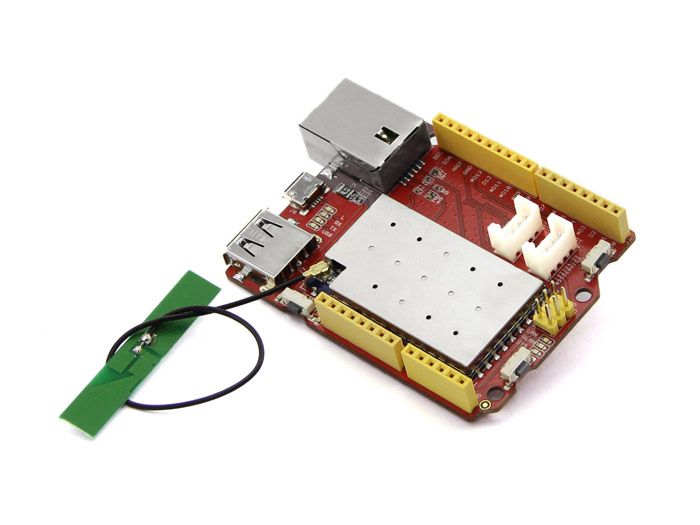

Seeeduino Cloud - Arduino Yun compatible openWRT controller

Seeeduino Cloud is a microcontroller board based on Dragino WiFi IoT module HE and ATmega32u4. HE is a high performance, low cost 150M, 2.4G WiFi module which means "core" in Chinese and with an Open Source OpenWrt system inside. Seeeduino Cloud is also an Arduino compatible board, 100% compatible with Grove, shield and IDEs(Arduino IDE 1.5.3 and later). Except for the normal interface of Arduino, Seeeduino Cloud has built-in Ethernet and WiFi support, a USB-A port which makes it very suitable for those prototype design that needs network connection and mass storage. It is also a good idea to make Seeeduino Cloud to an IoT gateway.FeaturesCompatible with Arduino YunBased on Dragino WiFi IoT module HEOpen Source OpenWrt system insideSupport 2.4Ghz WiFi, 802.11 b/g/nSupport EthernetSupport USB 2.0Size: 75.10mm x 53.39mm x 11.50mm / 2.95" x 2.10 x 0.45"Working temperature: -20~60¡ãCSurface color: RedTechnical detailsDimensions 116mm x76mm x26mmWeight G.W 53gBattery ExcludeHE ModuleCPU ATHEROS AR9331Clock Speed 400MHzRAM 64MBFlash 16MBOS Open Source OpenWrtInterfaces 2 x RJ45, 1 x USB Host, 1 x UART, 14 multiplex GPIOsPower 3.3V power inputWiFi Support 150M 2.4Ghz WiFi, 802.11 b/g/nMicrocontroller ATmega32u4Flash Memory 32KBSRAM 2.5kBEEPROM 1kBClock Speed 16MHzDigital I/O Pins 20PWM Channels 7Analog Input Channels 12Part ListSeeeduino Cloud 1Antenna 1
