CIE-H12A ezTCP 2-Port Input / 1-Port Output Remote I/O Controller
envistiamall.com
Business & Industrial / Automation Control Components

CIE-H12A ezTCP 2-Port Input / 1-Port Output Remote I/O Controller

$96.75
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Envistia Mall

View Store

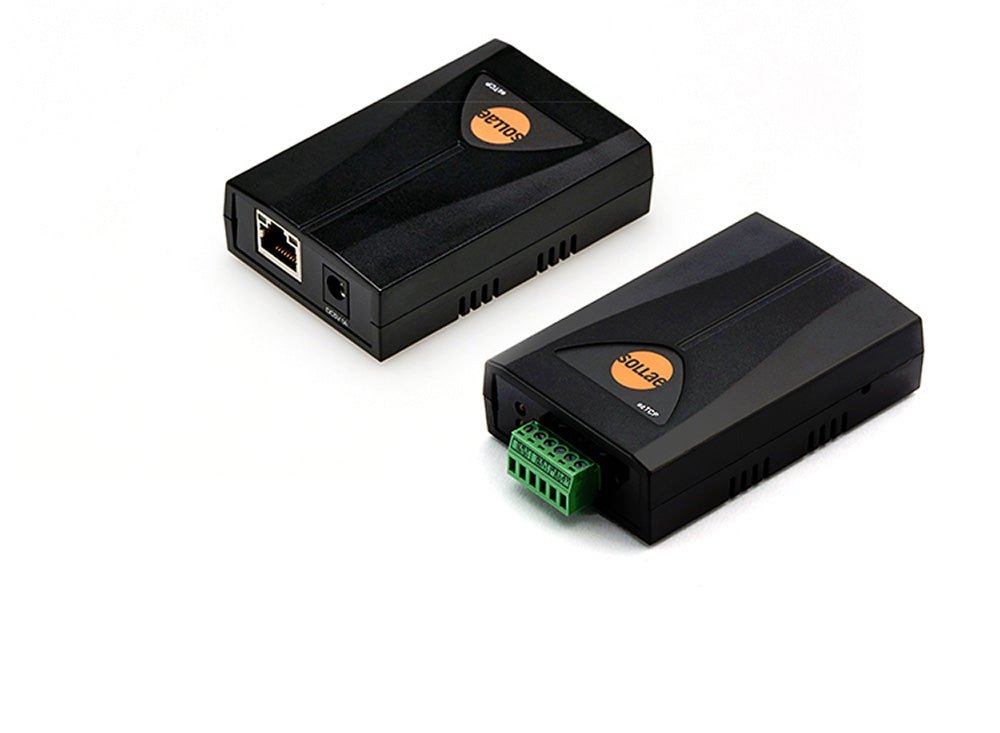

The CIE-H12A from Sollae Systems is a remote I/O gateway equipped with 1 digital input port, 2 digital output ports and an Ethernet interface. Each digital input port is linked to a photocoupler. The input port can monitor the ON/OFF state of equipment (maximum is 24VDC). Each digital output port is linked to a relay. Apart from ON/OFF control, the digital output port can also be controlled to generate a pulse. The CIE-H12A supports the Modbus TCP protocol. You can control/monitor equipment/sensors located in remote places from a PC, mobile app, HMI, or other Modbus TCP devices. You can use Sollae Systems' free software/app called ModMap or any software/app that supports Modbus TCP. The CIE-H12A is also equipped with an embedded web server with a preloaded web page, so you can use any web browser on a PC/smartphone to access the web page to control/monitor equipment/sensors. The web page is customizable so you can easily change the web UI if needed.The CIE-H12A allows each digital outp
