D1 Mini NodeMCU and Arduino WiFi LUA ESP8266 ESP-12 WeMos Microcontroller

$5.29
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Envistia Mall

View Store

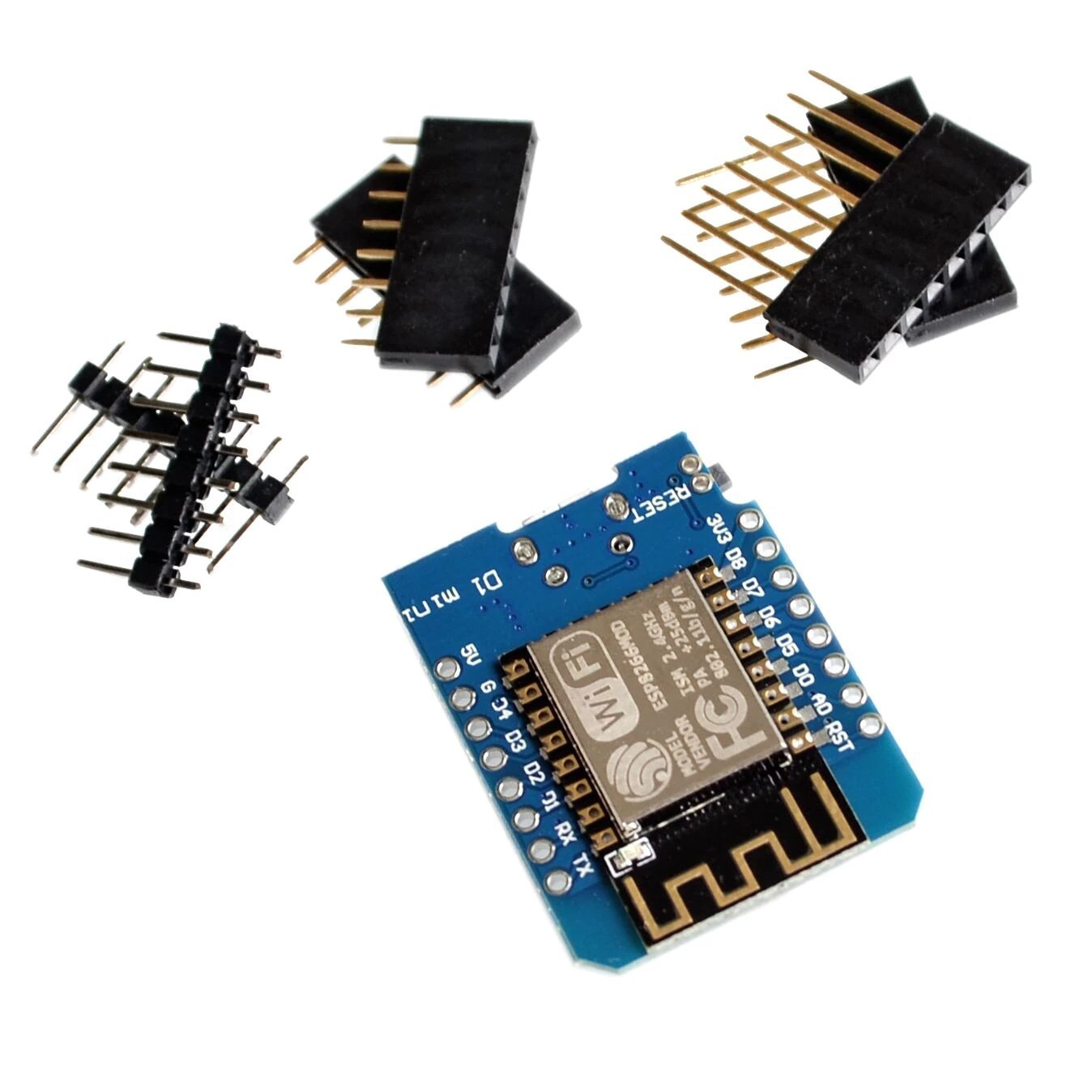

The WeMos-compatible D1 Mini is an Arduino compatible ESP8266EX-based microcontroller featuring 11 digital input/output pins, a single analog input pin. It offers the convenience of a micro-USB connection for both power and data (running at 3.3V), and despite its size has built-in WiFi and 4MB of flash memory. It can be programmed with Arduino or LUA, and supports both serial and OTA programming. Features and Specifications: Microcontroller: ESP-8266EX Operating Voltage: 3.3V Max (5V power from MicroUSB connector is internally converted to 3.3V) Digital I/O Pins: 11, all pins have interrupt/PWMI2C/one-wire support except D0 Analog Input: 1 (3.2V max input) Connector: MicroUSB Clock Speed: 80MHz/160MHz Flash: 4M bytes Dimensions: 34mm x 25,5mm x 6.8mm Weight: Approx. 5g excluding connectors Compatible with Arduino Compatible with Nodemcu Compatible with MicroPython This D1 Mini comes with 3 different types of header connectors to support various configurations: Female Male Female/Mal
