BCL20516 - 2/0 AWG One-Hole Battery Lug - 5/16" Stud Size
www.ferrulesdirect.com
Hardware / Power & Electrical Supplies

BCL20516 - 2/0 AWG One-Hole Battery Lug - 5/16" Stud Size

$2.12
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Ferrules Direct

View Store

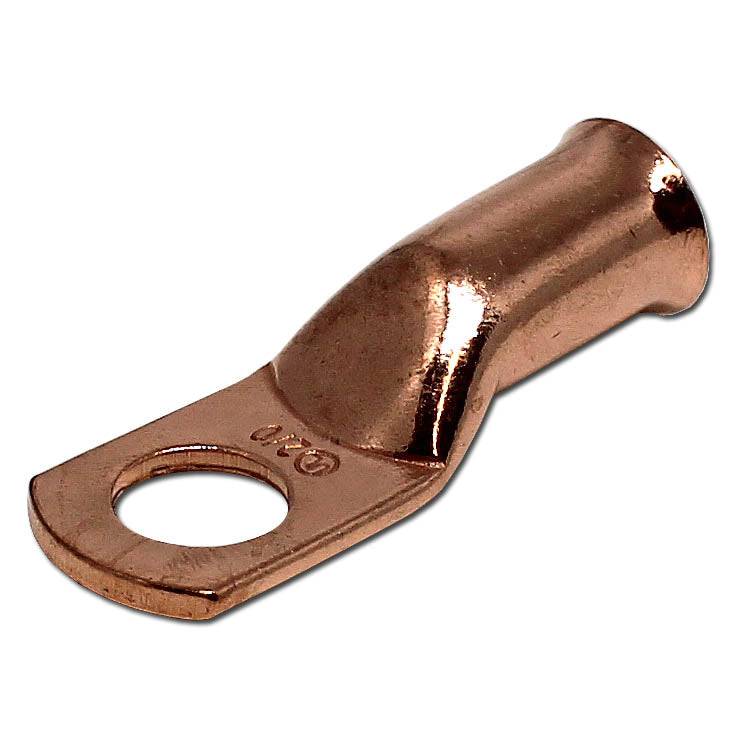

COPPER BATTERY CABLE LUGS Our Copper Lugs are suitable for use with a variety of wire types, such as battery and welding cable. Made from 100% pure copper for superior conductivity. Closed-type Flared ends for easy wire insertion that are crimpable and solderable. 100% Pure Copper  ✓ Thick & Durable ✓ UL Approved  ✓ RoHS & REACH Compliant ✓ CE Certified ✓ DIMENSIONS & FEATURES: Wire Size: 2/0 AWG L: 52.5mm (2.07") L1: 12.1mm (0.48") D: 21.0mm (0.83") D1: 14.2mm (0.56") D2: 11.7mm (0.46") B: 18.3mm (0.72") E: 8.1mm (0.32") F: 2.5mm (0.10") Terminal Material: Copper Stud Size: 5/16" Temperature Rating: 90°C Voltage Rating: 35KV UL Recognized: Yes CE Certified: Yes RoHS Compliant: Yes DRAWING: Cross References Cross Reference Parts:None Documents Click to view product spec sheet:
