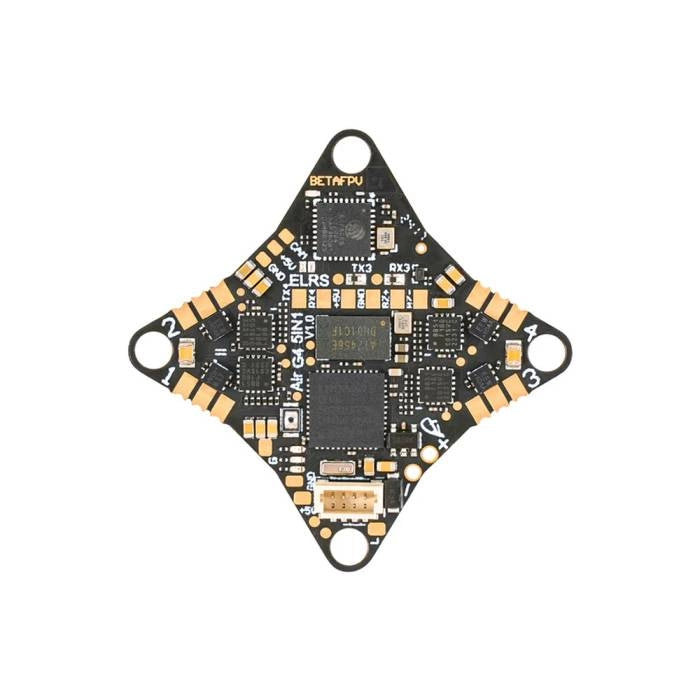

BETAFPV Air 5-in-1 AIO - G4 FC + 1S ESC + 400mW VTX + ELRS RX + OSD
About this product The BETAFPV Air Brushless Flight Controller is the first 1S FC with the STM32G473CEU6, which offers a 55% boost in computing speed and lightning-fast response times, outpacing the F411. Featuring the ICM42688P gyro and onboard 5.8G 25mW~400mW VTX. Experience effortless fingertip control and unmatched performance, making it the top choice for future ultralight 1S whoop drones! Features High Integration and Lightweight Design Industry-Leading ICM42688P Gyro Extensive Flight Data Recording Up to 16MB black box capacity Advanced G473 Processor Integrated VTX COMPARISON BETWEEN G473 AND F411 Say goodbye to limitations and embrace the cutting-edge technology of the G473 flight controller for an unparalleled flight experience. The Air Brushless Flight Controller features a superior CPU clock speed of up to 168MHz and four richer serial ports, enabling lightning-fast response times and advanced computing power. It is ideal for demanding flights, taking your flying experience to the next level, and demonstrating outstanding performance, surpassing all 1S FC options available on the market. BLUEJAY ESC FIRMWARE With the BB51 ESC solution, the Air Brushless Flight Controller is based on A_X_5_96KHz_V0.19.hex for BB51 Bluejay hardware. It supports D-Shot300, D-Shot600, and even RPM filtering in Betaflight. It offers fixed PWM frequencies of 24kHz, 48kHz, and 96kHz as options and custom start-up melodies. SERIAL ELRS 2.4G RX The Serial ELRS 2.4G RX uses the Crossfire Serial Protocol (CRSF protocol) to communicate between the receiver and the flight controller board. The Serial ELRS 2.4G RX supports upgrading to ELRS V3.0 without needing to flash Betaflight flight controller firmware. Enter binding status by powering on/off three times: Plug in and unplug the flight controller three times. Ensure the RX LED does a quick double blink, indicating the receiver is in bind mode. Ensure the RF TX module or radio transmitter enters binding status by sending out a binding pulse. If the receiver has a solid light, it's bound. The Serial ELRS 2.4G RX can be updated via Wi-Fi or Betaflight serial passthrough. Here is how to update the Serial ELRS 2.4G RX firmware through passthrough: Plug your FC into your computer, but do NOT connect to Betaflight Configurator. Choose target "BETAFPV 2.4GHz AIO RX." Flash using the Betaflight Passthrough option in ExpressLRS Configurator. 5-IN-1 Choose this highly integrated Air Brushless Flight Controller for an ultra-light 1S whoop installation tailored to meet the needs of discerning pilots. With its default integrated onboard 25-400mW VTX, the 5IN1 version (integrating FC, ESC, OSD, VTX, and RX) goes a step further by incorporating the Serial ELRS 2.4G RX. This streamlines installation saves space, reduces weight, and enhances convenience for VTX and FC adjustments. Specifications ESC ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay hardware FC Firmware Version: Betaflight_4.5.0_BETAFPVG473 Signal Support: D-shot300, D-shot600 Input Voltage: 1S VTX Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz Operating Temperature: -10℃ ~ +80℃ Frequency Precision: ±200KHz (Typ.) Output Power: 25/100/200/400/PIT Frequency Stability: ±100KHz (Typ.) Channel Carrier Error: ±1.5dB Channel SEL: SmartAudio2.0 All Harmonic: Max -50dBm Frequency Control: PLL Modulation Type: FM Antenna Port: 50 Ω FLIGHT CONTROLLER 5IN1 Version: FC + ESC + OSD + VTX + RX Six-Axis: ICM42688P (SPI connection) Mounting Hole Size: 26mm x 26mm CPU: STM32G473CEU6 (168MHz) Built-in ESC with 5A continuous RX: Serial ELRS 2.4G (V3.4.2) Weight: 3.6g (5IN1 Version) Sensor: Voltage & Current Blackbox Memory: 16MB USB Port: SH1.0 4-Pin 5V BEC: 5V 3A Links How to Flash Firmware Via Wifi Flight Controller Firmware Bluejay ESC Software ESC Configurator Reference Link Includes 1x BETAFPV Air 5-in-1 AIO - G4 FC + 1S ESC + 400mW VTX + ELRS RX + OSD More Information SKU 22369 UPC (GTIN) 724376364251 Manufacturer BETAFPV Mounting Pattern 25.5x25.5mm NDAA Compliant No Item Returns This item can be returned Products Related To This Item BrainFPV Radix 2 H7 Flight Controller - HD $112.99 Flywoo GOKU F722 PRO V2 Flight Controller - ICM42688 $44.99 Flywoo GOKU F722 PRO MINI V2 Flight Controller - ICM42688 - 20x20 $39.99 Holybro Kakute F722 Flight Controller $41.99 iFlight BLITZ F745 V1.1 Flight Controller - 30x30 $59.99 iFlight BLITZ F745 Mini Flight Controller - 20x20 $55.99 TBS Lucid Pro F4 Mini Flight Controller - MPU6000 - 20x20 $49.99 TBS Lucid Freestyle F4 Mini Flight Controller - ICM42688 - 20x20 $39.99 HGLRC Specter F722 Pro Flight Controller - 30x30 $39.99 BETAFPV Air 4-in-1 AIO - G4 FC + 1S ESC + 400mW VTX + OSD $44.99
