Burndy YA8CL3BOX Copper Compression Lug - 50pk - New Surplus
www.gequip.com

Burndy YA8CL3BOX Copper Compression Lug - 50pk - New Surplus

$99.00
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

General Equipment & Supply

View Store

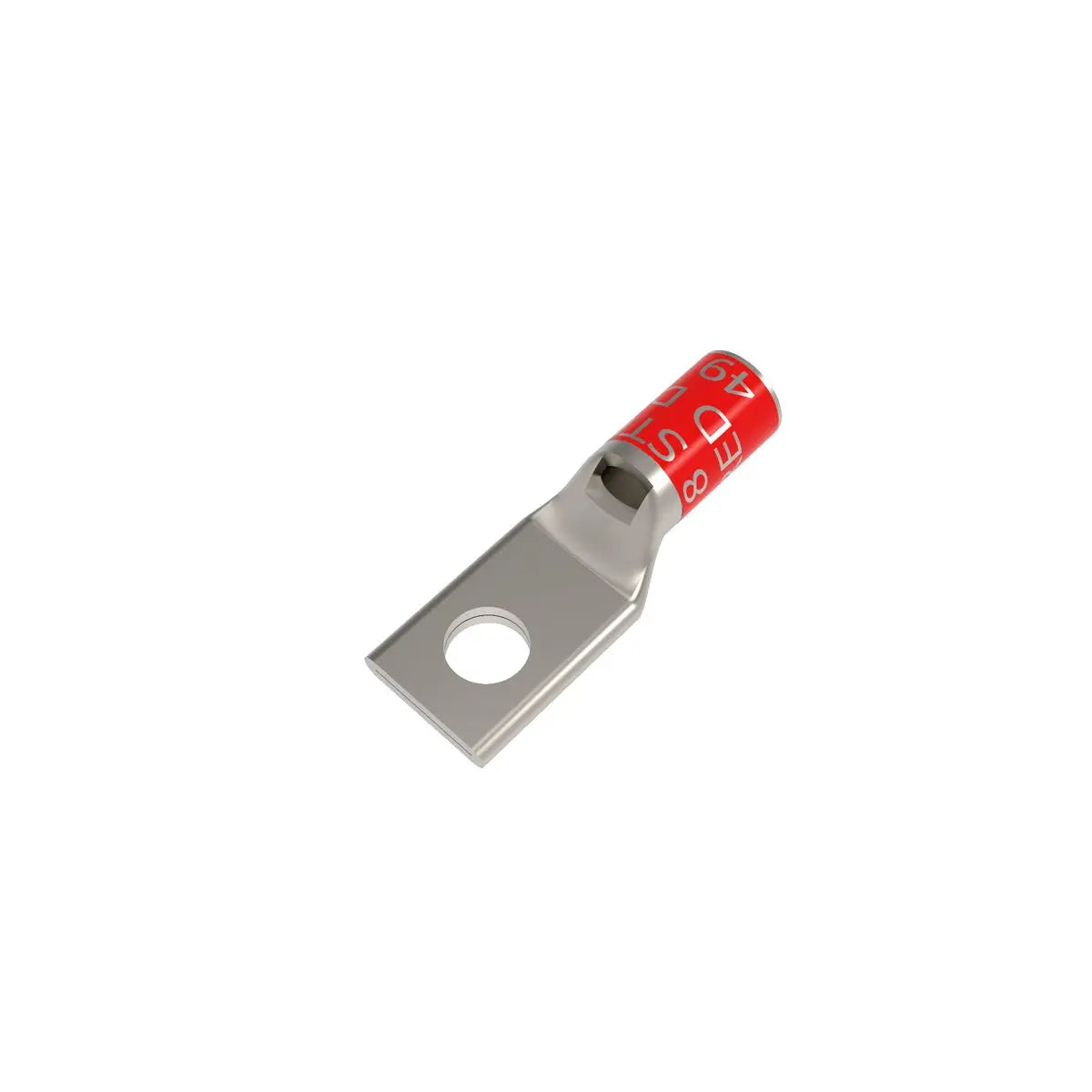

Burndy YA8CL3BOX Copper Compression Lug – 50pk - New Surplus YA8CL3BOX 1-hole copper compression lugs for 8 AWG conductors. Standard barrel with inspection window, tin-plated; 3/8″ stud; rated up to 35 kV at 90 °C. Features Standard barrel with internal chamfer for smooth wire insertion Inspection window for visual verification of conductor insertion Electro-tin plating for corrosion resistance Stamped and color-coded (Red; Die 49) for easy identification Meets UL 486A-486B; RoHS compliant; 600 V to 35 kV; 90 °C Included x50 YA8CL3BOX Copper Compression Lugs Specifications Conductor Size 8 AWG (copper; code/flex) Stud / Hole 3/8″ stud; 0.41″ nominal hole (0.39″ bolt-hole) Barrel / Window Standard barrel with inspection window; internal chamfer Die Index / Color 49 / Red Material / Finish Copper / Tin-plated Voltage Rating Up to 35 kV; 600 V–35 kV listed Temperature Rating 90 °C Standards UL 486A-486B; RoHS compliant Dimensions Overall Length (L) 1.51 in Ba
