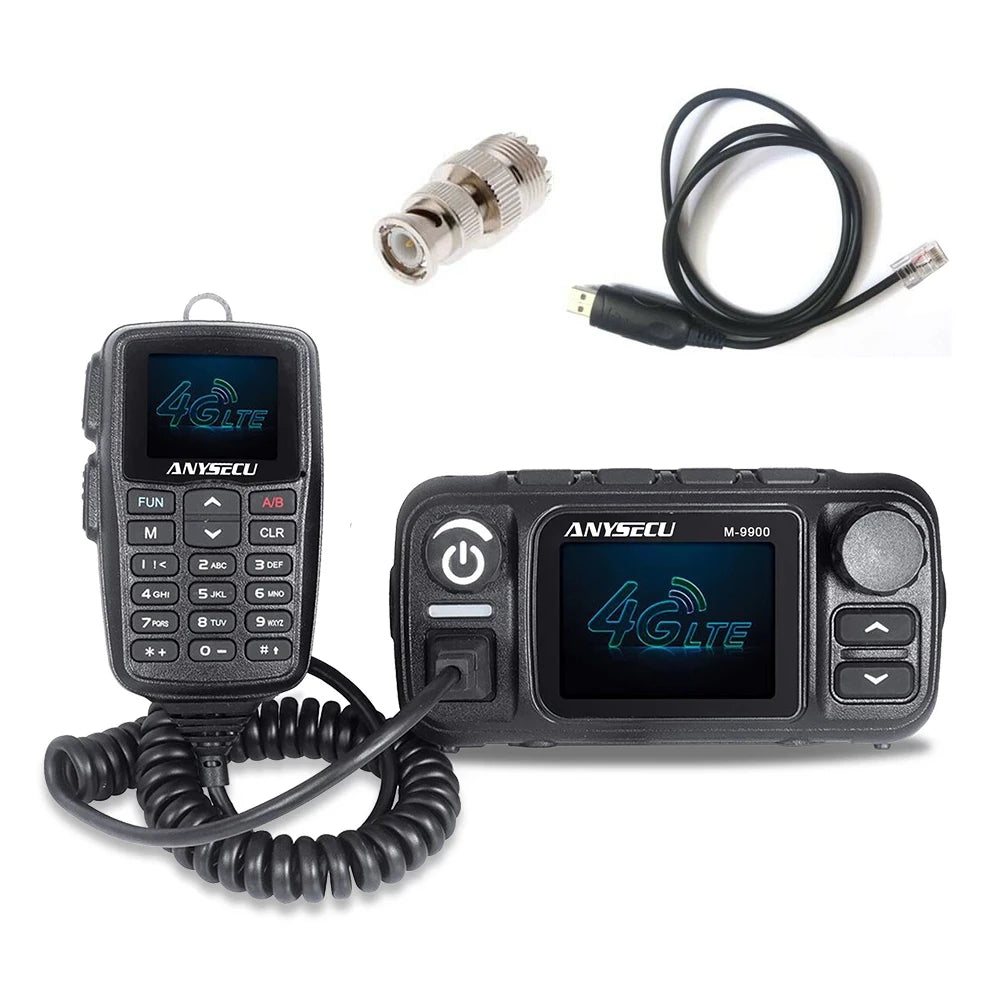

ANYSECU 4G LTE Network Radio UHF VHF Dual Band 25W M-9900 Cross Band Mobile Radio Linux System Work With Real-ptt
SPECIFICATIONSBrand Name: ANYSECUBattery Capacity(mAh): -Origin: Mainland ChinaWaterproof / Water-Resistant: IP55Maximum Range: >50kmModel Number: M-9900Is_Display: YesWalkie Talkie Type: CarOutput Power(w): >50wMaterial: plastic+metalStorage Channel: -Frequency Range: LTE/WCDMA/GSMDimensions: 153mm*78mm*45mmCertification: CEtype: 4g network radio ANYSECU 4G LTE Network Radio UHF VHF Dual Band 25W M-9900 Cross Band Mobile Radio Linux System Work With Real-ptt 4G LTE + VHF + UHF DUAL MODE MOBLE RADIO Analog output power 25W Dual SIM Card slots Dual PTT SOS 6 APRS function GPS Function Operator System Linux Version SIM7600A-H SIM7600SA-H SIM7600E-H Application Area North America(AT&T) New Zealand / Australia / South America Europe / Middle East / Africa / Korea / Thailand RF Parameter (Optional Band) FDD-LTE,B2/B4/B12 WCDMA:B2/B5 FDD-LTE:b1/2/3/4/5/7/8/28 TDD-LTE:B40 WCDMA:B1/2/5/8 GSM:850/900/1800/1 900MHz FDD-LTE:B1/3/5/7/8/20 TDD-LTE:B38/40/41 WCDMA:B1/5/8 GSM:900/1800MHz Receiving Receiving Sensitivity LTE/4G:<-100dBm WCDMA 900:<-110dBm WCDMA2100:<-110dBm GSM850/900/1800/1900:<-109dBm GPS GPS GPS Positioning, Support A-GPS function Sensitivity GPS L1 Band:1.57542GHz GLONASS Band:1597.5-1605.8Mhz BeiDou:1559.05-1563.8MHz Catch-144dBm, Track-159dBm GSM CS: 9.6kpbs/DL9.6kpbs GNSS current: 100mA [GSM/CDMA/UMTS/LTE] Technology Standard Data Speed Rate EDGE:Multi-slot Class 12 WCDMA CS: 64kpbs/DL 64kpbs WCDMA PS: 384kpbs/DL 384kpbs Protocol HSDPA/WCDMA/EDGE/GPRS/GSM Analog parts Frequency Range[MHz] Tx/Rx:400-480mhz & 136-174mhz Type Dual band, Dual standby PLL Channel Spacing 5/6.25/10/12.5/25/50/1 OOKHz Antenna Impedance 50Q Frequency Stability ±2.5PPM General Basic Information Working Voltage 12V/24V DC Working Temperature 20---50C Display Color display 2.8 inch Dimension 153mm[L]*78mm[W]"45mm[H] Weight 570g Sim Card Type Standard Sim Size
