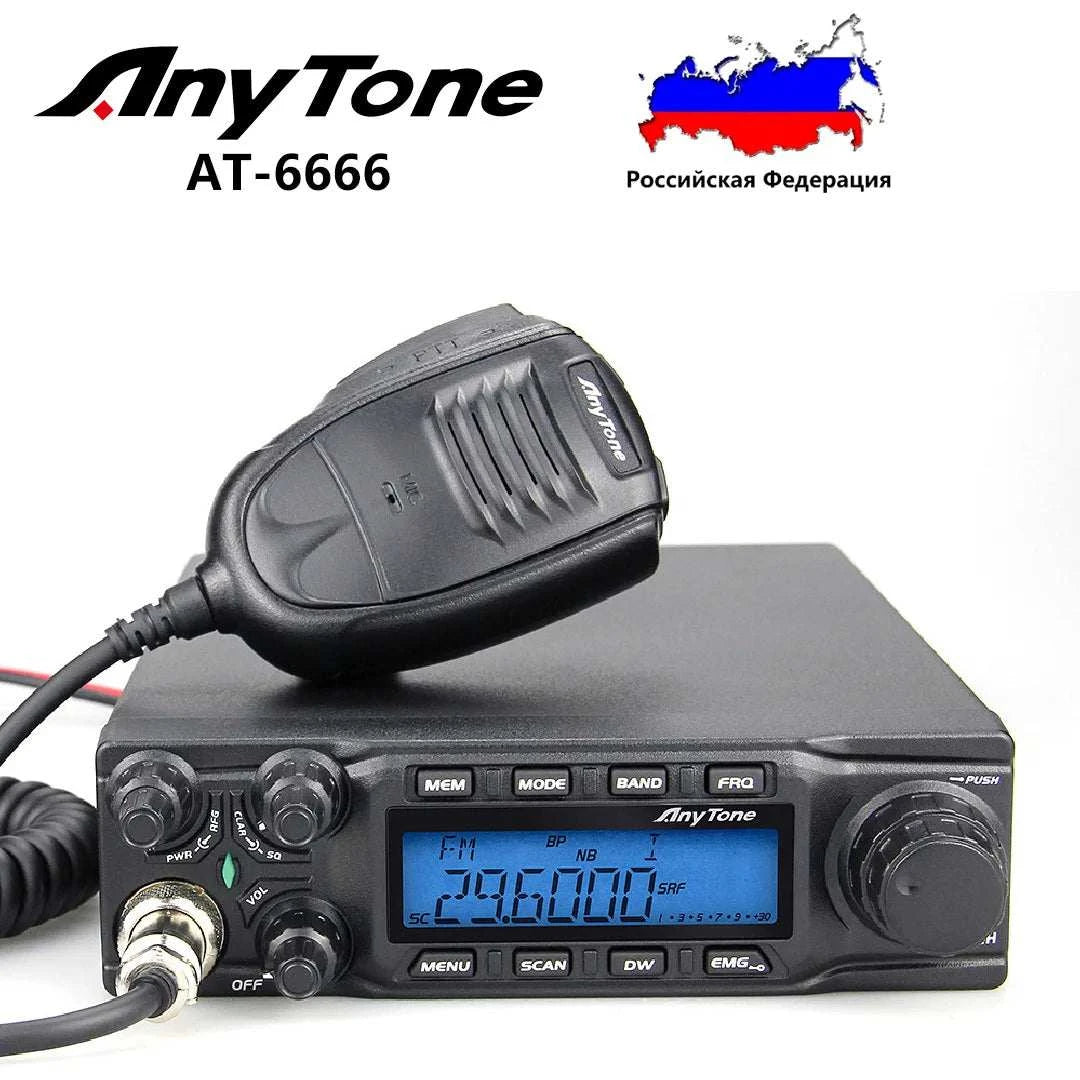

AnyTone AT-6666 10 Meter Radio for Truck with SSB(PEP)/FM/AM/PA Mode High Power Output 15W AM 45W FM 60W SSB(PEP)

SPECIFICATIONSBrand Name: AnyToneBattery Capacity(mAh): -Origin: Mainland ChinaWaterproof / Water-Resistant: NoMaximum Range: 10km-50kmModel Number: AT-6666Is_Display: YesWalkie Talkie Type: CarOutput Power(w): 25w-50wMaterial: MetalStorage Channel: 40 channel (Programmable) in each bandFrequency Range: 25.615-30.105MHzDimensions: 24.51*15.8*4.8Certification: CECertification: FCCCertification: RoHS AnyTone AT-6666 10 Meter Radio High Power 15W/45W/60W 40CH Mobile Transceiver SSB(PEP) 1.AnyTone AT-6666 10 Meter Radio, Frequency Range: 25.615-30.105MHz, High Output Power: 15W/45W/65W, flexiable menu function and big LCD displays frequency , perfect for truckers. 2. Six (6) Groups Memory Channel; Seven (7) Color LCD Display-white/blue/green/yellow/red/purple/cyan for meet your needs.❤❤ FREE download the programming software at AnyTone Official Website. 3.Dimensions: 9.65”(L) x 6.22”(W) x 1.89”(H), Weight: 3.30lbs; Frequency Tuning Step 100Hz, 1KHz, 10KHz, 100KHz, 1MHz; Frequency Control: Phase-Locked-Loop Synthesizer; Microphone with push-to-talk/UP/DN and coild cord; Programmable RB Function, NB/ANL Function, SQ, ASQ Function; 4.40 channels (programmable) in each band, DW DUAL-WATCH Function, EHCO Function, DTMF, TOT, BEEP Voice Prompt, EMG CALL, SWR PROTECTION, HI-CUT Function, +10KHZ Function, Power Supply Voltage Protection, Key-Lock Function and more! 5.Kit Includes: AT-6666 Radio, Microphone, Mounting bracket, Power Cable, Screw & Fuse; 30 Days NO REASION RETURN, 1-YEAR Warranty, Warehouse (Domestic Return) in CA State--No Further Return Issue. FEATURES & FUNCTIONS ECHO function, programmable RB function; SCAN, NB/ANL, DW DUAL-WATCH, TOT, HI-CUT, DTMF Functions; ±1.5KHz Clarifier, +10KHZ Function; SWR, S/RF Function, Key-lock Function; Power Supply Voltage Protection, RF GAIN/RF PWR Adjustment; SQ, ASQ Function EMG CALL ,BEEP Voice Prompt, SWR PROTECTION; Seven (7) Color LCD Display, Six (6) Groups Memory Channel; GENERAL Frequency Range 25.615-30.105MHz(Programmable) Frequency Band A/B/C/D/E/F/G/H/I Channel 40channels(programmable)in each band Frequency Control Phase-Locked-Loop Synthesizer Frequency Step 100Hz、1KHz、10KHz、100KHz、1MHz Frequency Tolerance ±5.0 ppm Temperature Range -20℃to +50℃ Microphone with push-to-talk /UP/DN and coiled cord Input Voltage 13.8V Dimensions (in mm) 245(L) x 158(W) x 48(H) Weight 1.5kg Antenna Connector UHF,SO239 TRANSMITTER Power Output AM: 15W / FM:45W / SSB: 60W(PEP) Drain 12A(with modulation) Modulation FM/AM/USB/LSB Inter-modulation Distortion SSB: 3rd order, more than -25dB; 5th order, more than -35dB SSB Carrier Suppression 55dB Unwanted Sideband 50dB Frequency Response AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz Output Impedance 50ohms, unbalanced RECEIVER Sensitivity SSB: 0.25μV for 10dB(S+N)/N AM:1.0μV for 10dB(S+N)/N FM: 1.0μV for 20 dB (S+N)/N (All at greater than 1/2 watt of audio output) Adjacent-Channel Selectivity AM/FM: 60dB SSB: 70dB Image Rejection More than 65dB IF Frequency AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF SSB: 10.695MHz RF Gain Control 45dB adjustable for optimum signal reception Automatic Gain Control(AGC) Less than 10dB change in audio output for inputs from 10 to 100,000 microvolt. Squelch Adjustable; threshold less than 1.0μV. Automatic Squelch Control(only AM/FM)1.0μV Audio Output Power 3 watts into 8 ohms Frequency Response AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz Built-in Speaker 8 ohms, round External Speaker Not Supplied 8 ohms; disables internal speaker when connected. 1
