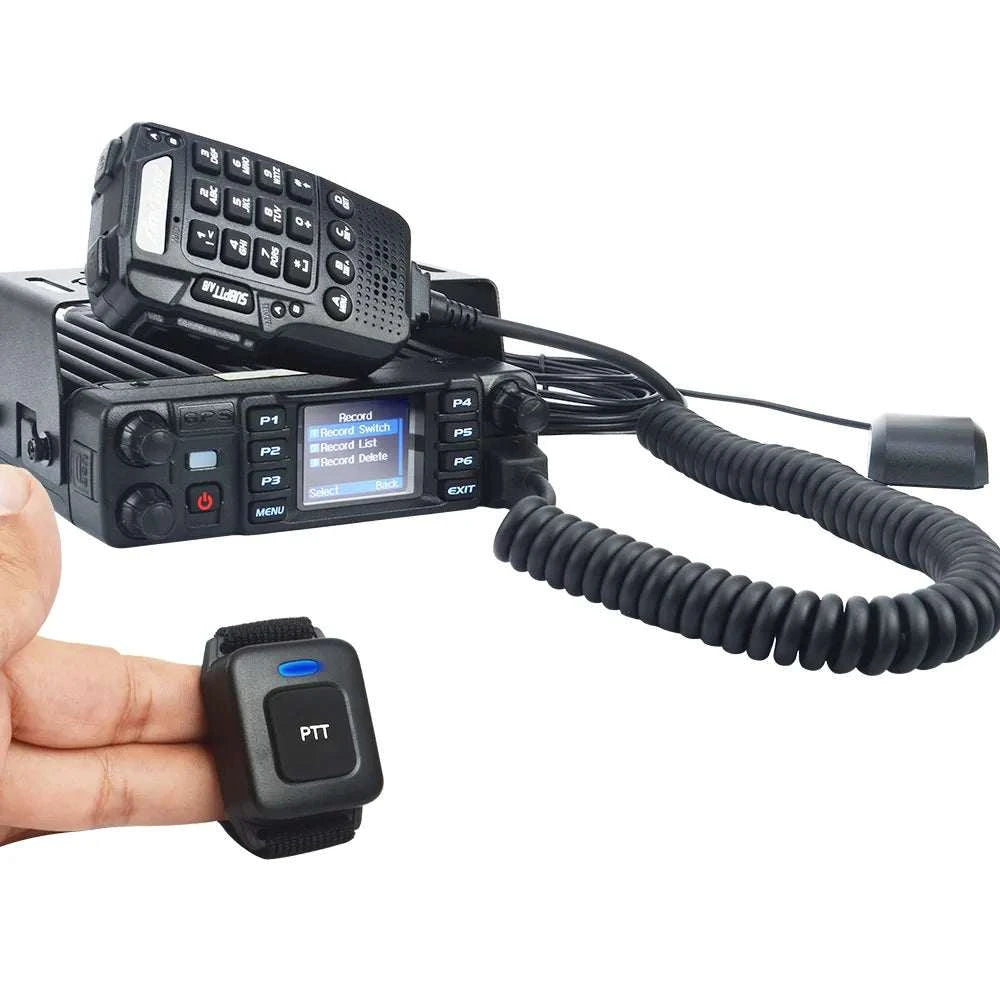

Anytone Mobile Transceiver AT-D578UV PRO dual band digital DMR GPS APRS voice record 55W car radio w/USB program cable
SPECIFICATIONSBattery Capacity(mAh): 13.8V external Power supplyOrigin: Mainland ChinaWaterproof / Water-Resistant: NoMaximum Range: 10km-50kmModel Number: AT-D578UVPROIs_Display: YesWalkie Talkie Type: PortableOutput Power(w): 25w-50wMaterial: MetalStorage Channel: 4000Frequency Range: Dual Band, VHF:136-174MHz & UHF:400-480MHzDimensions: 188*141*40mm(radio body only)Certification: CESpecial Function 1: GPS PositioningSpecial function2: APRS Location reportingSpecial Function 3: Built-in Bluetooth ModuleSpecial Function 4: Voice recordSpecial Function 5: ScramblerTwo working mode: DMR digital & AnalogColor: BlackWeight: 1.04kg (Accessories Not Included ) Anytone AT-D578UVPRO UHF VHF transceiver 4000CH 55W digital DMR & Analog dual band GPS Scrambler mobile radio with Bluetooth-Compatible wireless PTT switch,Voice record,APRS,usb programming cable Main Features & Functions: 136-174MHz & 400-480MHz DMR Digital & Analog two working mode Roaming Scan Freq. Step:2.5/5/6.25/10/12.5/20/25/30/50KHz DTMF FM Radio Cross Band Repeater Weather Alarm Digital SMS message DMR dual time Slot with color code Digital & Analog dual working mode mobile transceiver GPS positioning APRS Location Reporting Built-in Bluetooth module With BT wireless PTT switch Voice Record Scrambler Specifications: GENERAL Frequency Range Dual Band: VHF 136-174MHz & UHF 400-480MHz Channel Capacity 4000 channels Channel Spacing 25KHz (Wide Band),12.5KHz (Narrow Band) Phase-locked Step 5KHz,6.25KHz Operating Voltage 13.8V DC ±15% Frequency Stability ±2.5ppm Power Supply Current Requirement (mini) 15 Amps Operating Temperature -20°C ~+60°C Size 188x141x40mm(radio only) Weight 1.04kg (accessories not included) Receiving Part Wide Band Narrow Band Sensitivity (12dB SINAD) ≤0.25µV ≤0.35µV Digital Sensitivity 0.3Uv/-177.4dBm (BER 5%) 0.7UV/-110dBm(BER 1%) Adjacent Channel Selectivity ≥70dB ≥60dB Spurious Emission ≤-57dB ≤-57dB Spurious Rejection ≥70dB ≥70dB Blocking 84dB Audio power output ≥45dB ≥40dB Audio Distortion ≤5% Audio Power Output 2W/8Ω Transmitting Part Wide band Narrow band Power Output Turbo 55W at 144-148MHz 40W at 430-440MHz High UHF/VHF 25W Middle UHF/VHF 10W Low UHF/VHF 1W Modulation ±5.0KHz 25KHz ±2.5KHz 12.5KHz Adjacent Channel Power ≥70dB ≥60dB Hum & Noise ≥40dB ≥36dB Spurious Emission ≤-36dBm ≤-36dBm 4FSK Digital Modulation 12.5KHz (data) 7K60FXD 12.5KHz (data+voice) 7K60FXE Audio Disortion ≤5% Error rate ≤3% Package Contains: 1 x ANYTONE AT-D578UV PRO dual band radio body 1 x Microphone 1 x DC Power Cable with Fuse Holder 1 x USB programming CABLE 1 x Mobile Mounting Bracket 1 x GPS Antenna with 3 meter cable 1 x BT wireless PTT switch 1 x USB charging cable for Bluetooth PTT switch 1 x Velcro 2x spare fuses 8 x fixing screws 1 x English Use Manual Photos:
