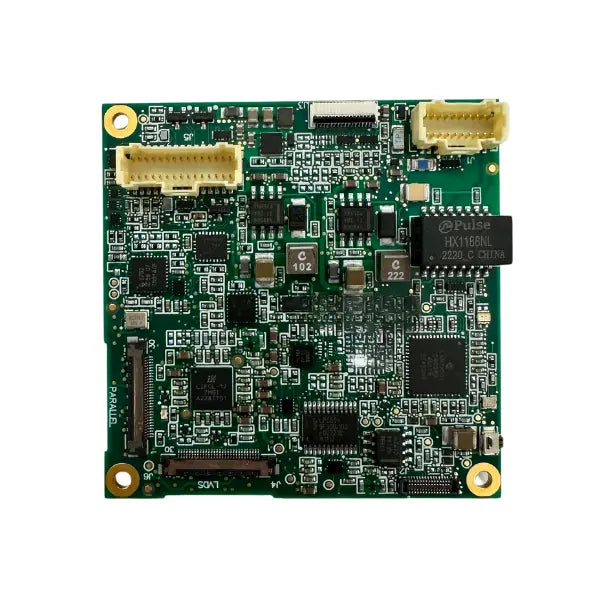

IONODES ATOMAS-IOT-DUAL Atomas DUAL IoT Encoder
Details The IONODES Atomas IoT DUAL is a feature-rich IP video encoder module with "Internet of Things" capabilities for various camera designs. The compact form factor of this OEM IP encoder makes it especially ideal for integration into dual camera systems combining LVDS zoom blocks, MIPI sensor modules, and thermal block cameras. Simultaneous Dual Camera Support The IONODES Atomas DUAL IoT Encoder provides a direct LVDS connection, making it compatible with high-quality zoom camera block brands such as Sony and KT&C. It also supports MIPI and digital video sources, such as thermal cameras (Sierra Olympia and FLIR). Two cameras can be processed simultaneously and published via Onvif and other IP APIs for streaming/recording. High-Performance Video Engine The IONODES Atomas DUAL IoT Encoder features a powerful video codec engine that generates multiple HEVC/H.264 IP video streams at different quality settings. Single input mode generates video streams up to 4K 30fps, and dual input mode generates streams up to 2K 30fps for each input. IoT Enabled for Endless Possibilities The Atomas DUAL IoT Encoder offers the latest IoT and networking connectivity functions, including Ethernet, 4G LTE, Wi-Fi, GPS, Bluetooth, CAN Bus, 9-axis IMU, and more. Enjoy versatile and complete IP access to your camera technology for various applications. Target Applications This OEM IP encoder is ideal for video surveillance cameras, thermal camera systems, advanced PTZ camera systems, UAV drone surveillance and inspection, military and law enforcement applications, and ground robotics applications. Specifications Network 1 x 10/100 Base-T Ethernet 3G / 4G LTE (optional) Wi-Fi: 2.4G / 5GHz, 802.11 a/b/g/n/ac (optional) Bluetooth: BT 4.2LE (optional) I/O & Audio 2 x Dry ContactInputs, 1 x I/O Output Pin3 x PWM GPIO 1 x RS-485, 1 x UART (TTL), 1 x I2C 1 x Board Reset Signal 4 x uFL Antenna Connectors (LTE, Wi-Fi, BT, GPS) 1 x VRTC (2.0V to 3.25V) 1 x 3.3V Out (max.0.1A),1 x 5V Out (max.0.5A) 2-ch Audio Line In / 2-ch Audio Line Out 1 x CAN Bus (optional) Video Input 1 LVDS interface *Matches SONY FCB specifications Video Input 2 Digital video interface *For use with compatible IONODES video adapter boards Video Input 3 4-lane MIPI CSI-2 video interface *For use with compatible video adapter boards Video Performance Video Resolution Supports sensor inputs at up to 24 MP Video Encoding HEVC / H.264 / MJPEG (up to 4K 30 FPS) Video Latency Can reach less than 120ms latency Image Processing 2D/3D noise reduction Edge enhancement Frame difference motion detection Privacy mask System Processors Qualcomm Snapdragon Processor Supervisory MCU for Fault-protection Operating System Embedded Linux/Android HW Watchdog Auto-boot, OS supervision, temperature monitoring, software monitoring Other Realtime Clock( RTC)& Temperature Sensor 9-axis IMU (optional) Storage Internal 16 GB eMMC External External storage via microSD Protocols Networking IPv4/v6, UDP, TCP, IGMP, ARP, DHCP, DNS, NTP Streaming RTSP, RTP, HTTP, Web Sockets Management HTTP, HTTPS, Bonjour, ONVIF, ION API, SNMP, SMTP Security Basic / Digest Authentication, SSL Software Web GUI System configuration and maintenance Live video and PTZ control Cross-browser support Smartphone and tablet support Programming Interface ION API, ONVIF Profile G,S,T System Monitoring Video signal, storage medium, temperature, memory, CPU, network Media Recording Recorded ASF audio/video to SD/MMC Software Update Fault-tolerant, remote accesible Alarm Triggers I/O input, motion detection, system monitor PTZ Control Can Interface to PTZ controller (UART) Programmable presets tours User-defined custom commands Other Features Email notifications (on event or schedule) Text overlay OEM rebranding/customization Mechanical / Environmental Dimensions 58 mm x 58 mm Power Input 9VDC to 15VDC Operating Temp Dependent on customer mechanical design *All components are -20C to 70C (Tcase) Warranty 2 Years Standard Downloads IONODES Atomas DUAL IoT Spec Sheet IONODES ATOMAS-IOT-DUAL Atomas DUAL IoT Encoder
