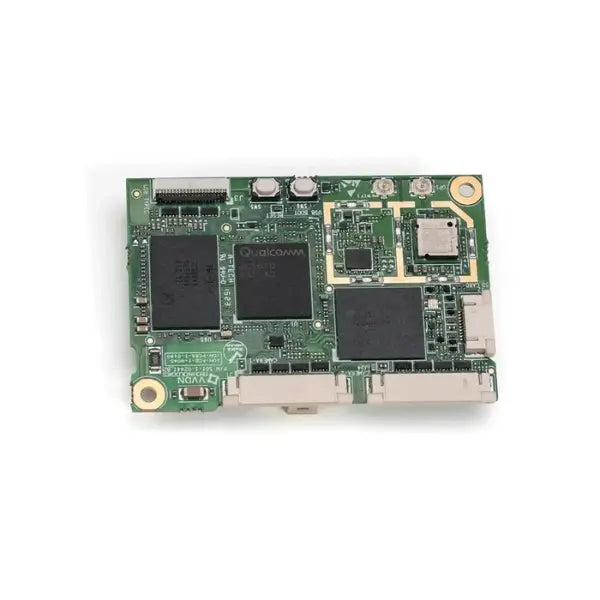

IONODES ATOMAS-IOT-MICRO Micro MIPI IoT Video Encoder
Details The ATOMAS-IOT-MICRO Micro MIPI IoT Video Encoder is a dual-camera MIPI IP video encoder module with internet-of-things (IoT) capabilities. Featuring a dual-camera MIPI IP video encoder module, the ATOMAS-IOT-MICRO is a powerful IoT device that delivers seamless connectivity. With IoT capabilities, users can access to video and data assets making it an ideal choice for perimeter surveillance. This product includes the ATOMAS-IOT-MICRO Micro MIPI IoT Video Encoder ONLY. The following are pictured but sold separately. EM10032 ATOMAS-IOT-MIPICBL-100MM-TT Ribbon Cable EM18896 ION-CAM-MIPI-OV12A10-KIT 4K MIPI Camera with Lens EM10091 ION-CAM-MIPI-IMX415-MICRO 4K MIPI Camera with Lens Specifications Standard/Integrated Interfaces Network 1 x 10/100 Base-T EthernetWi-Fi: 2.4G/5GHz, 802.11a/b/g/n/ac (optional)Bluetooth: BT 5.0 (optional)GNSS: GPS, BeiDou, GLONASS, QZSS (optional) I/O & Audio 1 x UART (TTL) + 1 x I2C + 1 x SPI1 x Board Reset Signal + 1 RGB Status Signal2 x Antenna Connectors (Wi-Fi / BT, GNSS)1 x VRTC (3.0V)1 x 3.3V Out, 1 x 1.8V Out1 x I2S for audio1 x USB 3.1 Video Input 1 4-lane MIPI CSI-2 video interface* For use with compatible video adapter board Video Input 2 4-lane MIPI CSI-2 video interface* For use with compatible video adapter boards* Supports synchronization signal with Input 1 Video Performance Video Resolution Supports sensor inputs at up to 12MP Video Encoding HEVC / H.264 / MJPEG (up to 4K30FPS total Video Latency Can reach less than 120ms latency Image Processing 2D/3D noise reductionEdge enhancementFrame difference motion detectionPrivacy masks System Processor Qualcomm Octa-Core IoT SoC Operating System Embedded Linux HW Watchdog Auto-boot, OS supervision, temperaturemonitoring, software monitoring Other Realtime Clock (RTC) & Temperature SensorOn-board 9-axis IMU Storage Internal 8GB eMMC External External storage via microSD* Requires optional microSD adapter board Protocols Networking IPv4/v6, UDP, TCP, IGMP, ARP, DHCP,DNS, NTP Streaming RTSP, RTP, HTTP, Web Socket Management HTTP, HTTPS, Bonjour, ONVIF, ION API,SNMP, SMTP Security Basic / Digest Authentication, SSL Software Web GUI System configuration and maintenanceLive video and PTZ controlCross-browser supportSmartphone and tablet support Programming Interface ION API, ONVIF Profiles G,S,T System Monitoring Video signal, storage medium, temperature,memory, CPU, network Media Recording Recorded ASF audio/video to SD/MMC Software Update Fault-tolerant, remote accessible Alarm Triggers I/O input, motion detection, system monitor PTZ Control Can interface to PTZ controller (UART)Programmable preset toursUser-defined custom commands Other Features Email notifications (on event or schedule)Text overlayOEM rebranding / customization Mechanical/Environmental Dimensions 38 mm x 55 mm Power Input 5.5VDC to 14VDC Operating Temp. Dependent on customer mechanical design* All components are -25C to 85C (Tcase) Storage Temp. Components are rated for -30C to 70C whenin storage Warranty 2 Years Standard Downloads ATOMAS-IOT-MICRO Data Sheet
