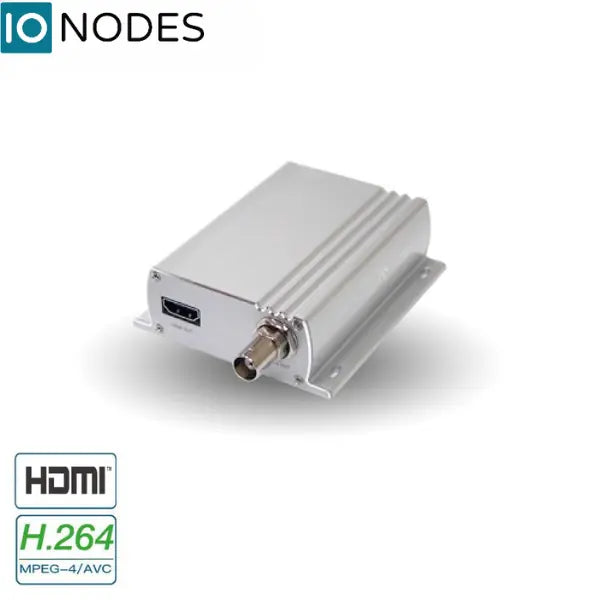

IONODES ION-IPRD-2-0012 Quad View H.264 HD Video Decoder with PoE - HDMI and BNC

Details  The IONODES ION-IPRD-2-0012 is a dedicated fanless & ultra-compact video decoder designed for use with any H.264/MJPEG video source, such as IP cameras and encoders. The ION-IPRD-2-0012 ican decode H.264 streams at resolutions up to 1080p30 / 720p60 for display on an HDMI monitor or composite output (BNC). The device can also have a quad view, 2x2 layout, enabling simultaneous decoding and display of up to four H.264 streams at D1@30FPS. Specifications  Video Selectable video output : Analog BNC or Digital HDMI Audio In Single channel analog audio input (3.5mm) Audio Out Single-channel analog audio output (3.5mm) Network 10/100 Base-T Ethernet port half/full duplex, auto-sensing, RJ-45 Alarm In Two closure contacts (terminal bloc) Relay Out Single output relay contact (terminal bloc) COM Port Single serial port (RS422/485) (terminal bloc) Video Codecs H.264 Baseline, Main, High Profiles / MJPEG Video Resolutions QCIF to 720p60 / 1080p30 Video Decoding Can decode up to four H.264 IP streams simultaneously at full D1 resolution Video Layouts 1 x 1 static, 1 x 1 camera sequence, 2 x 2 static Network API ION API, Genetec API Downloads ION-R100_catalog_sheet (748.33 kB) ION-R100_User_Manual (1.80 MB)
