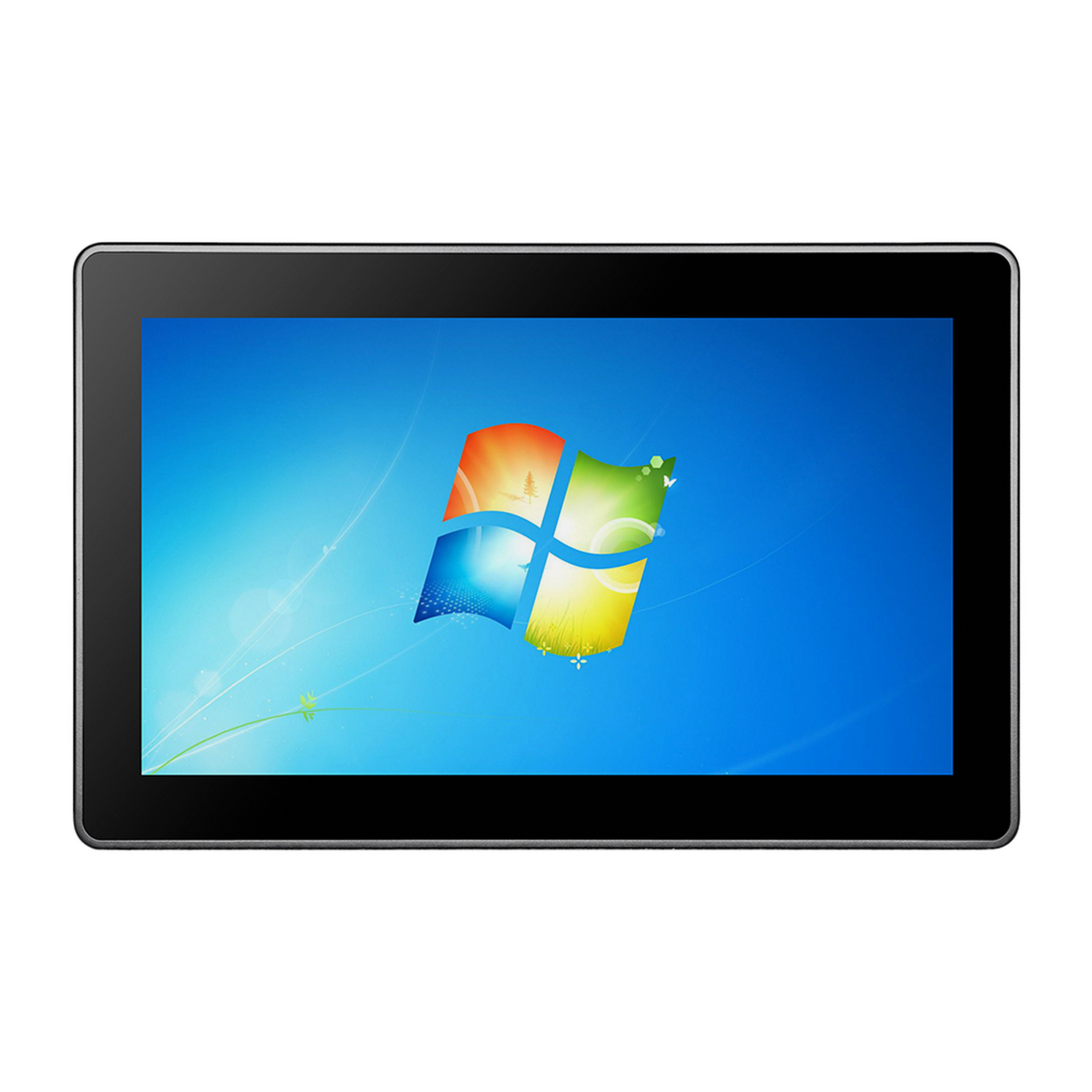

B-Series 15.6" Industrial TouchScreen Display
Designed and manufactured by Industrial Monitor Direct, the IMD156-M5 is an industrial-grade monitor engineered for rugged environments, combining durability, versatility, and exceptional performance. Key Features Modern, narrow-frame design with aluminum alloy material for enhanced durability. Anti-vibration, dust-proof, and waterproof structure with IP65 front panel protection. Customizable high-performance display driver board suitable for complex industrial environments. Adaptable to harsh conditions such as dust, oil pollution, water mist, electromagnetic interference, and high-frequency vibration. Support for multiple installation modes: embedded, wall-mounted, cantilever, and more. Specifications Category Details Model IMD156-M500 (Non-touch), IMD156-M510 (Capacitive Touch), IMD156-M520 (Resistive Touch) Display Size 15.6" TFT LCD Resolution 1920 x 1080 Brightness 300 cd/m² Contrast Ratio 800:1 Viewing Angle 85°/85°/85°/85° (L/R/U/D) Touch Options 10-point capacitive touch, single-point resistive touch, or non-touch Operating Temperature -10°C to 60°C Storage Temperature -20°C to 70°C Humidity 95% non-condensing Certifications CCC, CE, FCC, EMC, CB, ROHS Power Input DC 12V-36V Power Consumption 18W Interfaces 1 x HDMI (1080P) 1 x VGA 1 x DVI 1 x Audio I/O 1 x RJ45 to USB touch interface Dimensions W406 x H260 x D67.5 mm Installation Embedded, wall-mounted, cantilever Applications and Advantages The IMD156-M5 is designed for diverse applications, including: Industrial automation and control systems Military-grade equipment and applications Communication networks and data centers Power and energy sector systems Network automation and monitoring Maintenance and Usage Tips Ensure the monitor is installed in environments within its specified operating temperature range (-10°C to 60°C). Clean the front panel with a soft, damp cloth to maintain its IP65 waterproof rating. Avoid exposing the monitor to excessive moisture or direct water spray, especially on non-IP-rated sections. Frequently Asked Questions What power supply is required? The IMD156-M5 operates with a DC input range of 12V-36V. Can the touch interface support multi-point gestures? Yes, the capacitive touch option supports 10-point touch functionality. Is the monitor suitable for outdoor use? The IP65-rated front panel provides protection against dust and water, making it suitable for semi-outdoor applications. For more information or to place an order, visit Industrial Monitor Direct. Keywords: Industrial PCs, IP67 Panel PC, Tailored Industrial PC for Data Acquisition, 4K Monitors, Fanless Panel PC, Industrial Panel Mount PC, Tailored Industrial PC for Data Acquisition, HMI Monitors, Customized Marine Panel PC, Industrial Panel Mount Touch Screen Monitor, Industrial Terminals, Embedded Panel PC, Industrial Panel PC with Custom I/O Ports, Industrial PCs, Durable Monitors, Industrial Panel PC with VESA Mount, Custom Industrial PC for Smart Manufacturing
