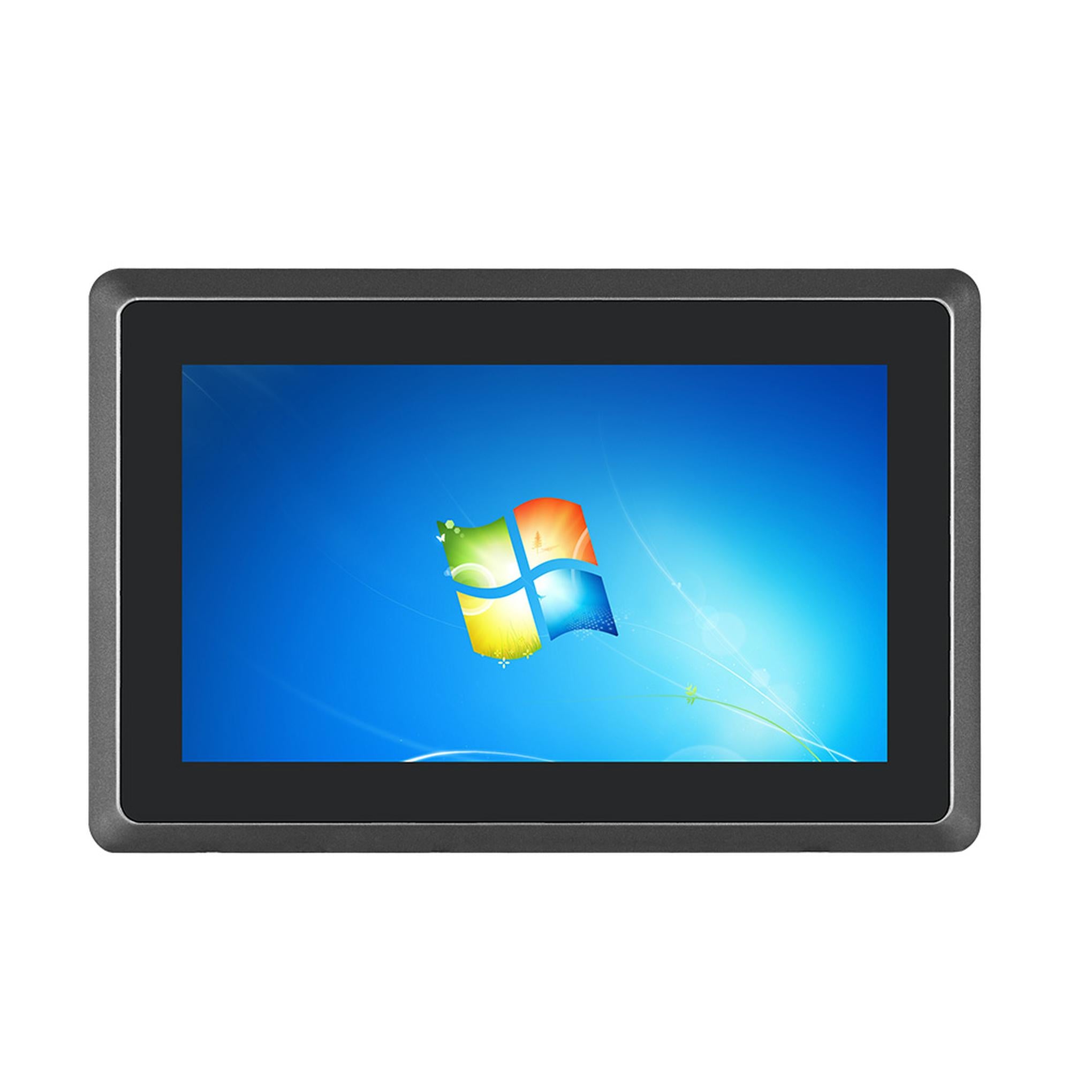

Q-Series 11.6" all-in-one Panel PC, 1920x1080, Intel Core i5
Key Features Pure Flat Panel Design: Aluminum alloy structure with IP65-rated front panel dust and waterproof protection. Powerful Performance: Powered by Intel Core i5 processors (6200U, 7200U, 8265U, 10210U) with up to 64GB DDR4 RAM. Fanless Cooling System: Ensures silent operation and prevents dust accumulation, enhancing durability in harsh environments. Vivid Display: 11.6" TFT LCD screen with Full HD 1920x1080 resolution, wide viewing angles (85°/85°/85°/85°), and 300 cd/m² brightness. Touchscreen Options: Capacitive (10-point multi-touch), resistive, or non-touch models to suit your operational needs. Rich Connectivity: Includes HDMI, VGA, multiple USB ports (USB 2.0/3.0), RS232, LAN, audio out, and SIM slot support. Wide Power Input: Supports 12V-36V DC power input for versatile industrial setups. Highly Reliable: Vibration protection (IEC 60068-2-64), impact protection (IEC 60068-2-27), and operating temperature range of -10°C to 60°C. Product Specifications Display Screen Size 11.6" TFT LCD Resolution 1920 x 1080 (Full HD) Brightness 300 cd/m² Contrast Ratio 1000:1 Viewing Angle 85°/85°/85°/85° (L/R/U/D) Touch Options Capacitive Touch 10-point multi-touch, USB communication Resistive Touch Single-point touch, USB communication Non-Touch Available Hardware Configuration Processor Options Intel Core i5-6200U, i5-7200U, i5-8265U, i5-10210U RAM 4GB DDR4 (Upgradeable to 8GB/16GB/32GB/64GB) Storage 128GB SSD (Optional 256GB/512GB SSD, 1TB/2TB HDD) Graphics Intel HD/UHD Graphics (520/620) Operating System Win 7/10/11, Ubuntu, CentOS, Redhat, Debian, Linux Physical Characteristics Overall Dimensions W328.3 x H216.3 x D60 mm Cutout Dimensions W316.4 x H204.4 mm Weight Approx. 3.5 kg Connectivity USB Ports 2 x USB 2.0, 2 x USB 3.0 LAN Ports 2 x 10M/100M/1000M Ethernet Video Output 1 x HDMI, 1 x VGA Audio 1 x Audio Out COM Ports 2 x RS232 SIM Slot Supported (3G/4G modules) Power Input 12V-36V DC Applications The IMD116-W6 Industrial Panel PC is widely used in: Industrial Control and Automation Military Systems Communication Networks Power Management Factory Monitoring and HMI Applications Transportation Systems Why Choose Industrial Monitor Direct? At Industrial Monitor Direct, we specialize in delivering high-quality, durable, and innovative industrial computing solutions. Our IMD116-W6 Panel PC offers superior performance, robust construction, and flexible installation options to meet the demanding needs of industrial and commercial environments. Contact Us For more information or to place an order, visit IndustrialMonitorDirect.com. Keywords: Industrial Panel PC for OEM Applications, Industrial Screens, High-Brightness Displays, Custom HMI PC for Process Control, Industrial Panel PC with Custom I/O Ports, IP67 Panel PC, Industrial Interfaces, Tailored Industrial Panel PC Solutions, Industrial PC Windows 10, 4K Monitors
