Competitor Force Gauge Mounting Kit

$104.50
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

JLW Instruments

View Store

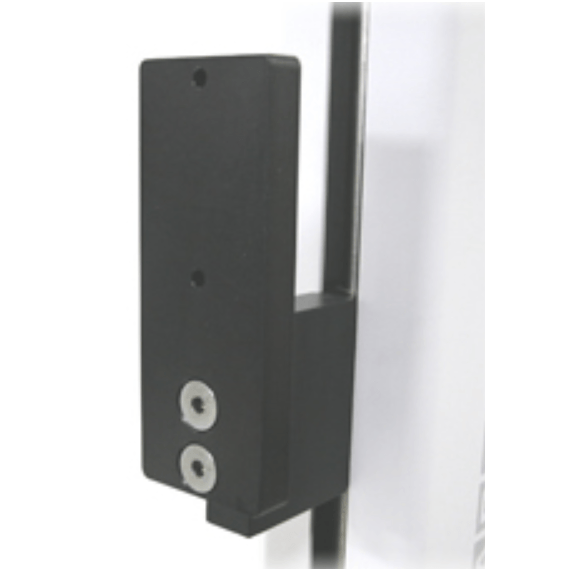

Adapters to mount competitor force gauges to Mark-10 test stands, and Mark-10 gauges to competitor test stands. These adapters are made to certain thicknesses for proper axial alignment.  Note: When ordering models AC1020 through AC1025 with an ES10 or ES20 test stand, the optional AC1060 mounting plate is suggested. This ensures axial alignment between the force gauge loading shaft and the threaded holes in the base. Part No. Compatible Gauges Compatible Stands AC1020 Chatillon DFE/DFS/DFX Mark-10ES10, ES20, ES30, ESM303 AC1021 Chatillon DFM AC1022 Chatillon DFIS AC1023 Mecmesin AFG/BFG AC1024 Imada gauges up to 220 lbF / 1,000 N capacity AC1025 Shimpo FGV/FGE AC1037 Chatillon DFE/DFS/DFX/LG Mark-10TSA750(H), TSC1000(H), TSF(H) AC1038 Chatillon DFM AC1039 Chatillon DFIS AC1040 Mecmesin AFG/BFG AC1041 Imada gauges up to 220 lbF / 1,000 N capacity AC1042 Shimpo FGV/FGE AC1061 Mark-10 gauges, up to 500 lbF (2,500 N) capacity Chatillon TCD200/
