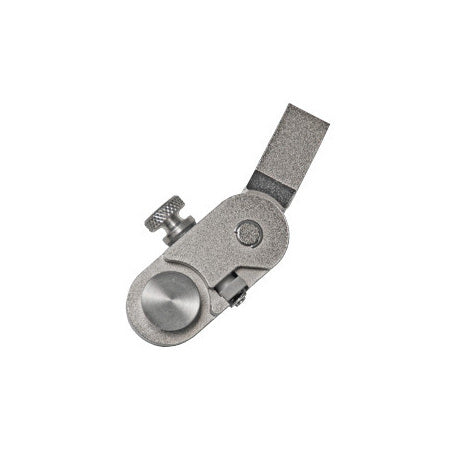

G1078, Miniature Filament and Wire Grip

For securing small diameter wires and filaments in pull tests. The sample wraps around the bollard and the loose end is secured by the adjustable jaw. Integrated swivel ensures sample alignment under load. Features and Specifications Pull testing of small diameter wire and filaments Max. sample size: Ø0.10 in (2.5 mm) Load capacity: 50 lbF (250 N) Weight lb [kg]: 0.06 [0.03] Includes #10-32 M/M stud with jam nuts Sold as a single grip Dimensions   A B C D E F G 2.38 [60.4] 1.09 [27.7] 0.10 [2.5] 0.10 [2.5] 0.55 [14.1] Ø0.45 [11.4] 0.20 [5.1] Documents Mark-10 Grips Catalog
