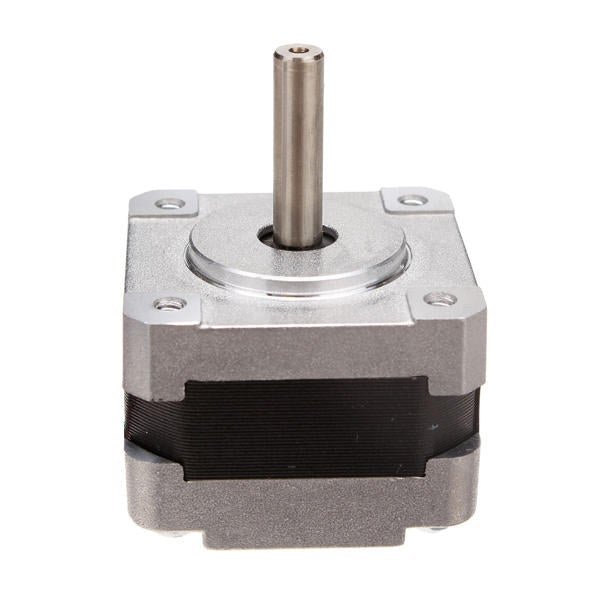

Hybrid Stepper Motor 26mm Two Phase Stepper Motor
justgreenbox.com

Hybrid Stepper Motor 26mm Two Phase Stepper Motor

$23.99
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

JustgreenBox

View Store

Description: Hybrid Stepper Motor 26mm Two Phase Stepper Motor.    Specification: Motor length:26mm;  Diameter of axle:5mm;  The front shaft length:21mm;  Size:35mm x 35mm x 26mm;  Outgoing line:300mm (Plug is not included);  Certification:CE;  Scope:3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, ect.;  Step Angle:1.8°;  Temperature Rise:80℃max;  Ambient Temperature:-20℃~+50℃;  Insulation Resistance:100 MΩMin., 500VDC;  Dielectric Strength:500VAC for 1 minute;  Shaft Radial Play:0.02Max. (450g-load);  Shaft Axial Play:0.08Max. (450g-load);  Max. radial force:28N (20mm from the flange);  Max. axial force:10N.    Features: High holding torque at high speed.  A stepper motor is an electric motor that is able to create sharp movements.  It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.    Package Included: 1x Hybrid Stepping Motor
