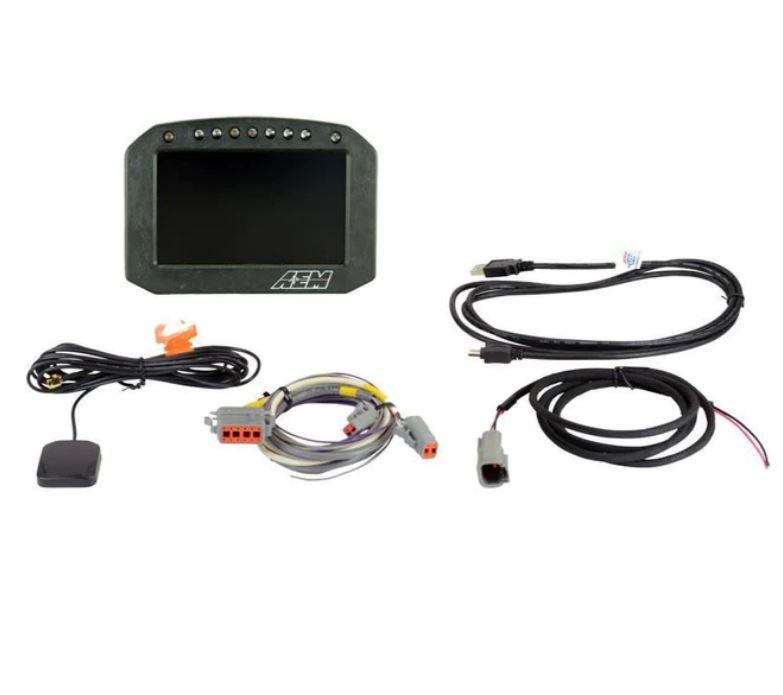

AEM CD-5LG Carbon Logging Flush Digital Dash Display w/ Internal 20Hz GPS & Antenna (30-5603F)

The CD-5 Carbon Flat Panel Digital Dash Displays from AEM are designed for flush mount installation or in-dash enclosures with tight tolerances. These displays offer all the robust features of the original CD-5 Carbon Dashes but without built-in buttons or an LED shade hood in the enclosure. The CD-5 Carbon Flat Panel Digital Dash Displays feature full-color screens that are easily readable in daylight. The screens are surrounded by a slim, tough, and lightweight flow-molded carbon fiber composite housing, providing durability and a sleek appearance. At the top of the display housing, there are seven ultra-bright LEDs that serve as RPM and shift lights. These LEDs can be programmed to ascend in specific increments based on RPM range and flash to indicate when it's time to shift. The brightness of the fixed color LEDs is also user-programmable.For convenient control, AEM offers a separate remote button kit (PN 30-3610, sold separately) that can be wired into the CD Carbon wiring harness. This remote button kit allows users to change pages and clear memory without the need for built-in buttons on the display. In addition to the RPM and shift lights, the CD-5 Carbon Flat Panel Digital Dash Displays include two extra programmable LEDs within the enclosure. These LEDs can be fully programmed to provide additional visual indications based on user preferences. Overall, the CD-5 Carbon Flat Panel Digital Dash Displays offer a compact and stylish solution for displaying important vehicle data in a flush mount or tight tolerance installation. The carbon fiber composite housing and programmable LED lights enhance the visibility and functionality of the display, providing an enhanced user experience. APPLICATIONS Adaptronic M1200, M2000, M6000 Adaptronic Modular series Plug-in ECUs Autosport Labs, AnalogX 4 Channel Analog to CAN Module BigStuff GEN4 Pro Xtreme ECUs Bosch IMU 2-Axis Accel & Yaw Sensor EMS EM-Tech EM70, EM80, EM140, EM160 & EM180 ECUs FAST XFI 2.0 ECU gaugeART 31-001, 8 Ch Analog Expansion Module GM/Delphi MEFI-4b ECUs Haltech Elite 550/750/950/1000/1500/2000/2500/2500T Haltech Platinum Pro/Sport/Sprint Haltech WBC1 & WBC2, 1 & 2 Ch CAN widebands Holley HP EFI, Dominator EFI ECUs CD-7 to Holley EFI Plug & Play Adapter Cable Available Hondata KPro4 and S300 V3 KMS MD35 KMS Single Ch CAN wideband KMS 4 Ch EGT Module KMS 4 Ch Wheelspeed Module KMS 2 Ch DBW Module KMS Flex Fuel CAN Module Life Racing F42, F88, F90 & GDI Series Link G4+ based ECUs CD-7 to LinkG4+ ECUs Plug & Play Adapter Cable Available Megasquirt, MS3 MicroTech LT-9C, LT-10C, LT-15C & LT-16C Motec M1, M84, M400, M600, M800, & M880 Motec PDM15, PDM16, PDM30 & PDM32 Power Distribution Motec PLM Lambda Motec LTC, LTCD Lambda to CAN Motec E888, E816, CAN Expansion MSD AtomicEFI Throttle Body ECUs CD-7 to MSD Atomic TBI Plug & Play Adapter Cable Available MSD GRID Programmable Ignition PCS EGT-2000, 8 Ch EGT Performance Electronics PE3 Series ProEFI Pro128, Pro112, and Pro48 RaceGrade TC8, 8 Ch EGT RaceGrade 8 Ch and 15 Ch Keypads Racepak V300SD, V500SD, Sportsman, G2X, & G2XPro Racepak 220-VM-USM, Universal 4 Sensor Analog Racepak 220-VP-IR, IR Tire & Brake Temp Racepak 220-VP-JB, Exhaust Temp Racepak 220-VP-PT, Pressure Sensor Racepak 220-VP-PT, Wheelie Bar Force Racepak 220-VP-RIDEHTXX, Laser Ride Height Racepak 220-VP-TC, Thermocouple Racepak 220-VP-TR, Coolant/Air/Oil/Trans/Diff Temp Syvecs S6, S6+, S6I, S8, SDI & S12 ECU’s Techmor AC-1-4, 4 Ch Analog Expansion Techmor IR-1 Non-Contact IR Tire Temperature Techmor AP-1, 16 Ch Aero Pressure Sensor Techmor SG-1-C, Strain Gauge Amplifier Vi-PEC i44-i88 ECUs CD-7 to Vi-Pec i44/i88 ECUs Plug & Play Adapter Cable Available Zeitronics Zt-3 CAN AFR Meter and Datalogging System Zeitronics ECA CAN Ethanol Content Analyzer FEATURES Full color 5” screen with 800x480 resolution Direct sunlight readable (1000cd/m2 brightness and anti-glare filter) Layout files interchangeable between all CD Carbon Dashes Wiring interface/harnesses are identical between all CD Carbon Dashes Rugged, lightweight flow-molded carbon fiber composite enclosure IP66 water resistance – open cockpit safe Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side Seven programmable pages including four Main pages, Alarm, On-Change, and Start-up pages (requires Button Kit PN 30-3610) The dedicated Alarm page quickly identifies problems, programmable in almost any language! (user-defined) A unique On-Change page can be used to identify map switching for boost, traction, lap times, etc. Use the included page layouts and input your channels and text, or create your own from scratch Free DashDesign Graphics Editor software Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable) Two programmable LEDs Odometer function Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own ‘Headlight-in’ connection dims the dash and LEDs during night operation Two extra switch inputs are included for displaying user-triggered events (blinkers, high beams, etc.) User-supplied graphics can be changed based on channel values (up to the full-screen size) Convert CAN bus channel values to user-defined text Plug & Play Adapter Cables are available for Holley, Link, MSD Atomic, and Vi-Pec ECUs Accept channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately) Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226) Install 8 additional temp inputs and send them to the CD Carbon Dash with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately) Available with or without 200Mb internal logging (up to 1,000Hz/channel) Available with or without an onboard 20 Hz GPS receiver and antenna Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3-axis accelerometer for G-loads, roll, pitch, yaw, track mapping, and lap timing (PN 30-2206, sold separately)
