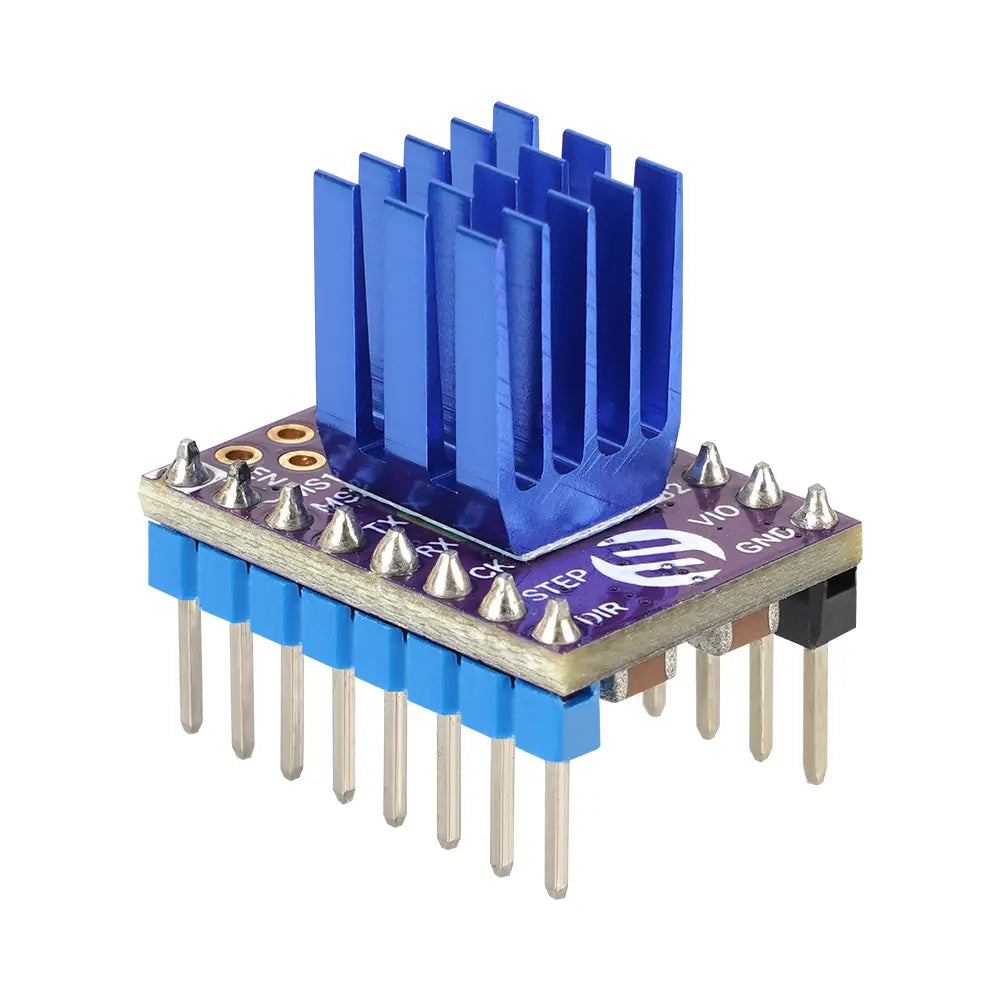

S6609 Stepper Motor Driver

S6609 is a super quiet two-phase stepper motor drive module designed and manufactured based on GC6609, with a built-in stepper drive mode of up to 256 subdivisions, super quiet, and low vibration. lt can operate within a wide working voltage range of 4-36 A, with an average working current of 2A and a peak current of 3A. Equipped with an automatic gain control loop (AGC), it can automatically adjust and compensate for the torque of variable loads, ensuring consistent torque. The automatic power-saving function will be activated when the motor is held. Comprehensive output protection, including over-temperature protection, under-voltage protection, output short circuit protection, etc. Features 4-layer 20Z sinking gold TG155 PCB Working voltage 4V-36V Maximum continuous current 2A, peak current 3A STEP/DR interface, input pulse 2/4/8/16 subdivision optional, internal automatic increase to 256 subdivision Ultra-low motor noise, AGC can automatically compensate for torque over a wide speed range Output short circuit protection, power, and ground short circuit protection FLAG function abnormal indication Stepstick module pin compatibility Current can be adjusted through adjustable resistors or software   Package includes: 10PCS FREE shipping from our Chinese warehouse.The picture is for reference only. Please adhere to the original products in case of any mistake.
