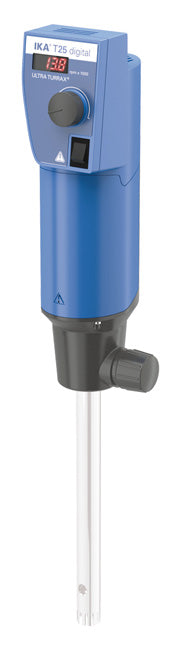

Ultra-Turrax® T 25

Overview High-performance dispersing instrument for volumes from 1 – 2000 ml (H2O) with digital speed display. It offers a wide speed range from 3000 – 25,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements adds versatility. Applications ranges from homogenizing waste water samples, use in laboratory reactors, dispersion tasks under vacuum / pressure and sample preparation in medical diagnostics.  Digital speed display Electronic speed control Electronic overload protection Stainless steel dispersing elements can be cleaned quickly and easily Plastic disposable dispersing elements are available in two sizes Error code display Quiet operation Dispersing elements, which are required for use, are sold separately.  Click here for dispersing elements. Key Attributes Homogenizer Type Rotor-Stator Sample Throughput 1 sample Sample Volume (min) 1ml Sample Volume (max) 2 l Usage / Placement Handheld / Benchtop Cooling No Warranty 3 years Noise Level 75 dB Weight 5.5 lb Width 3.4" Depth 4.2" Height 10.7" Manufacturer Specifications Motor rating input 700 W Motor rating output 500 W Volume range min. (H2O) 0.001 l Volume range max. (H2O) 2 l Viscosity max. 5000 mPas Speed range 3000 - 25000 rpm Speed deviation 1 % Speed display LED Speed control stepless Noise without element 75 dB(A) Extension arm diameter 13 mm Extension arm length 160 mm Process type batch Timer no Permissible ON time 100 % Dimensions (W x H x D) 87 x 271 x 106 mm Weight 2.5 kg Permissible ambient temperature 5 - 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 20 RS 232 interface no USB interface no Analog output no Voltage 220 - 240 / 100 - 120 V Frequency 50/60 Hz Power input 700 W FAQ What is the maximum continuous period of time that I can run the Ultra-Turrax® T 25? The motor is rated for 100% on time, but where you'll run into issues is the teflon bearing inside the dispersing element. That will eventually overheat, depending on the speed used and both the substances and volumes being homogenized. That said, most substances will achieve their minimum achievable particle size in a matter of seconds or minutes so it shouldn't be a problem. If you're running the Ultra-Turrax for longer than that, you're probably either running it for longer than necessary or using the incorrect instrument for the application. If you want something which can be used continuously for an in-line process, this is not the correct instrument; this is for batch processes only. If want to ensure that an already homogenized substance stays mixed after homogenization, you should homogenize with the Ultra-Turrax first then utilize an overhead stirrer to prevent sedimentation or separation.   Can I use the Ultra-Turrax® T 25 with organic solvents? Yes. When using the standard steel probes, the materials in contact with the medium would be stainless steel and PTFE, both of which have excellent chemical compatibility with most solvents. If you have questions about any particular probe / solvent combination, please contact us at support@homogenizers.net.   Is the motor in the Ultra-Turrax® T 25 brushed or brushless? The T 25 has a brushed motor. If you would like a brushless motor, the IKA T 25 Easy Clean has a brushless motor and similar specifications.
