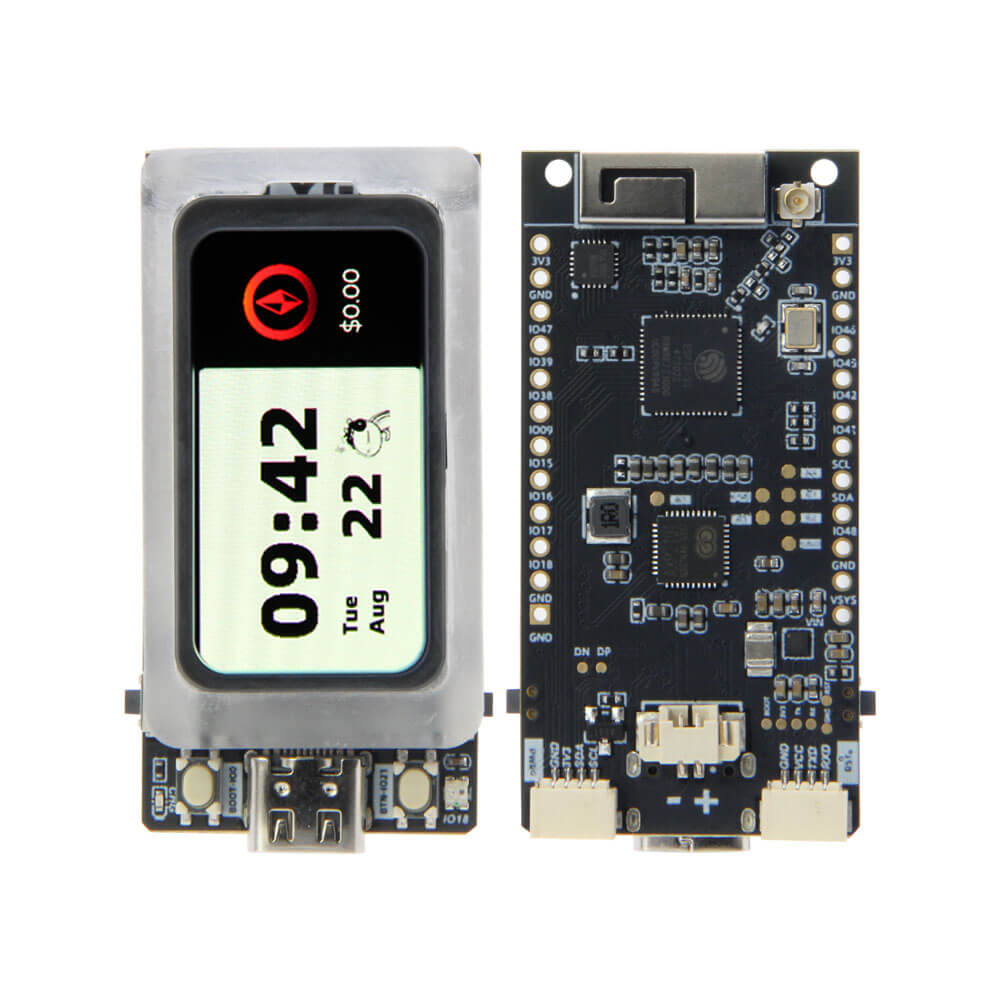

T-Display AMOLED  Lite is the first board that uses ESP32-S3 to drive AMOLED. It continues T-Display's simple form factor structure, low power consumption, support for battery charging and discharging, GPIO expansion function and other features designed to make learning and developing applications easier. Specifications MCU ESP32-S3R8 Dual-core LX7 microprocessor Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth 5 (LE) Development Arduino, PlatformlO-IDE, Micropython Flash 16MB PSRAM 8MB Onboard functions  Boot (IO00) + Power + Reset + IO21  1.47 inch RM67162 IPS AMOLED Resolution 194(W) X RGB X 368(H) Interface QSPI Active area 17.46*33.12mm Driver IC RM67162 Viewing Angle  IPS Full View Angle Sample Code For Reference [Github] If you need technical support please check below link to find more details. T-Display AMOLED Lite Pin Diagram
