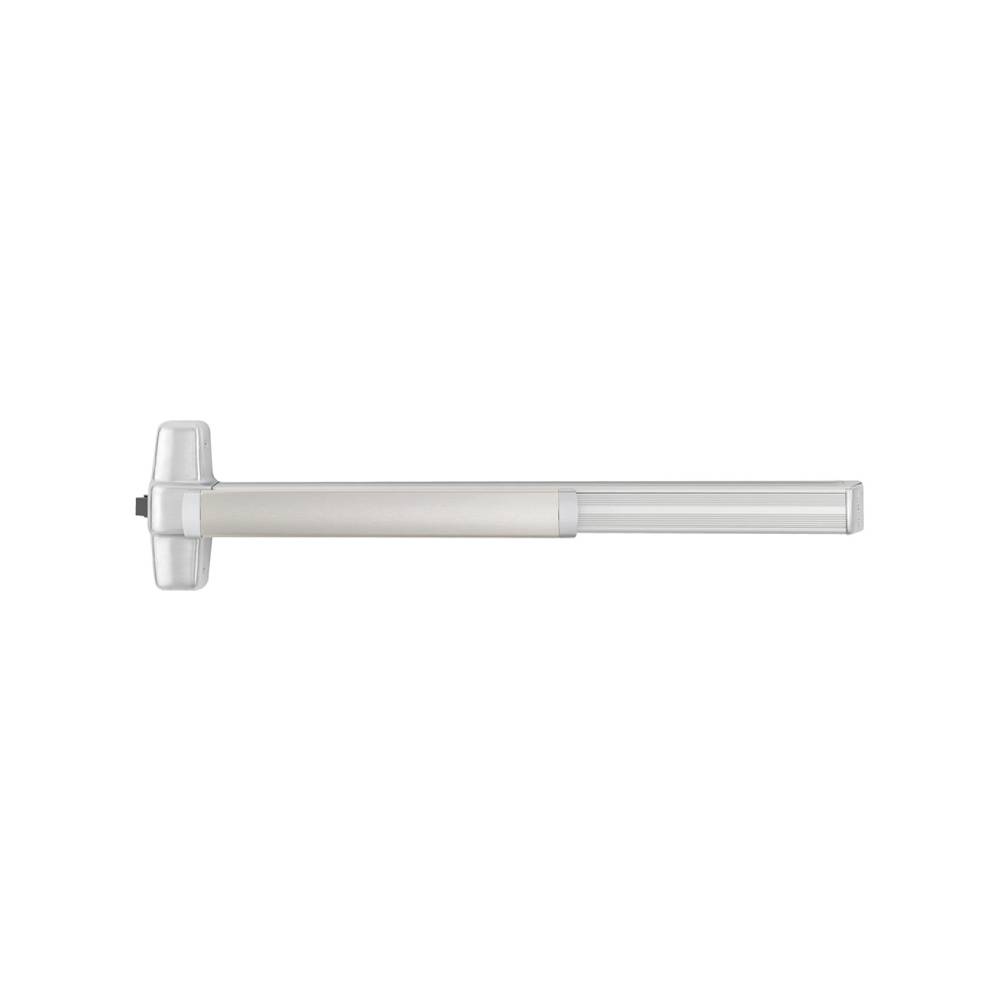

Von Duprin - 99EO-F-3-26D - Rim Exit Bar - 36 Device - Wide Stile Pushpad - Exit Only - Less Trim - Less Dogging - Satin Chrome Finish
www.locksmithkeyless.com

Von Duprin - 99EO-F-3-26D - Rim Exit Bar - 36 Device - Wide Stile Pushpad - Exit Only - Less Trim - Less Dogging - Satin Chrome Finish

$1,432.62
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Locksmith Keyless

View Store

Von Duprin - 99EO-F-3-26D - Rim Exit Bar - 36" Device - Wide Stile Pushpad - Exit Only - Less Trim - Less Dogging - Satin Chrome Finish 99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 99 device has a grooved case It is specifically designed for use in areas where frequent abusive treatment can be expected. Features: Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device. Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm) Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm) Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm) Latch bolt: Deadlocking, 3/4" (19mm) throw Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities. Product Specifications: Vendor Allegion Manufacturer Von Duprin SKU 99EO-F 3 26D UID VON10099EOF326D Grade Grade 1 Installation Commercial Origin USA Unit of Measure Each UL Listing Type UL 10C ANSI Number A156.3 Restrictions None BAA Qualified Yes Technical Specifications: Physical Appearance Wide Stile Pushpad Device Type Rim Mechanical Function Exit Only, Accepts Various Trim Device Length 36" Hand Non-handed Mechanical Options Fire Rated Device Dogging Options Less Dogging Trim Type Less Trim Trim Design Less Trim Cylinder Type Non-Keyed Minimum Stile Size 3-5/8" Door Material Metal or Wood Door Width 28" - 36" Door Thickness 1-3/4" - 2-1/4" Fire Rated Yes Product Type Rim Exit Devices Installation Instructions: 99 Rim Exit Installation Instructions
