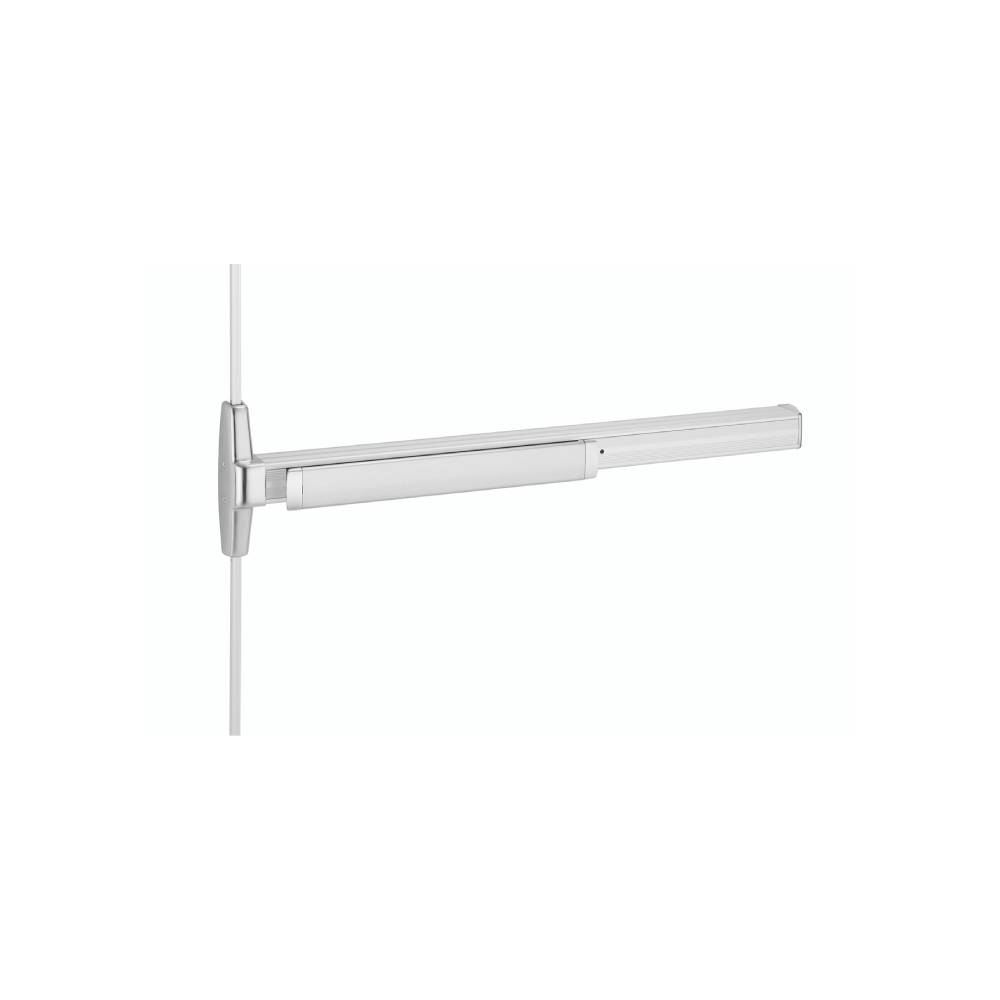

Von Duprin - CD3547A-EO - Concealed Vertical Rod Exit Device - Narrow Stile Pushpad - 36 - Exit Only - Less Trim - Satin Chrome Finish - Grade 1
www.locksmithkeyless.com

Von Duprin - CD3547A-EO - Concealed Vertical Rod Exit Device - Narrow Stile Pushpad - 36 - Exit Only - Less Trim - Satin Chrome Finish - Grade 1

$2,183.58
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Locksmith Keyless

View Store

Von Duprin - CD3547A-EO - Concealed Vertical Rod Exit Device - Narrow Stile Pushpad - 36" - Exit Only - Less Trim - Satin Chrome Finish - Grade 1 Finishes – US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used. /3547A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm). Newly designed device has a one piece center case cover Features: Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size Device centerline from finished floor: 39 13/16" (1006mm) Center case dimensions: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm) Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm) Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm) Latch bolt: Deadlocking anti-friction top bottom bolt 5 /8" (16mm) throw Door undercut: 1 /4" (7mm) Top bottom latch: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm) Fasteners and sex bolts (SBN) Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device) Product Specifications: Vendor Allegion Manufacturer Von Duprin SKU CD3547AEO 3 26D UID VON100CD3547AEO326D Grade Grade 1 Installation Commercial Unit of Measure Each Base Material Brass or Bronze UL Listing Type UL Listed ANSI Number A156.3 2008 Technical Specifications: Physical Appearance Narrow Stile Pushpad Device Type Concealed Vertical Rod Mechanical Function Exit Only Device Length 36" Hand Non-Handed Dogging Options Cylinder Dogging Top Strike 338 Strike Bottom 385A Trim Type Less Trim Minimum Stile Size 2-1/8" Door Material Hollow Metal Door Width 28" to 36" Door Height 100" Door Thickness 1-3/4" Reversible Yes Product Type Concealed Vertical Rod Exit Devices Installation Instructions: 3547 Installation Instructions
