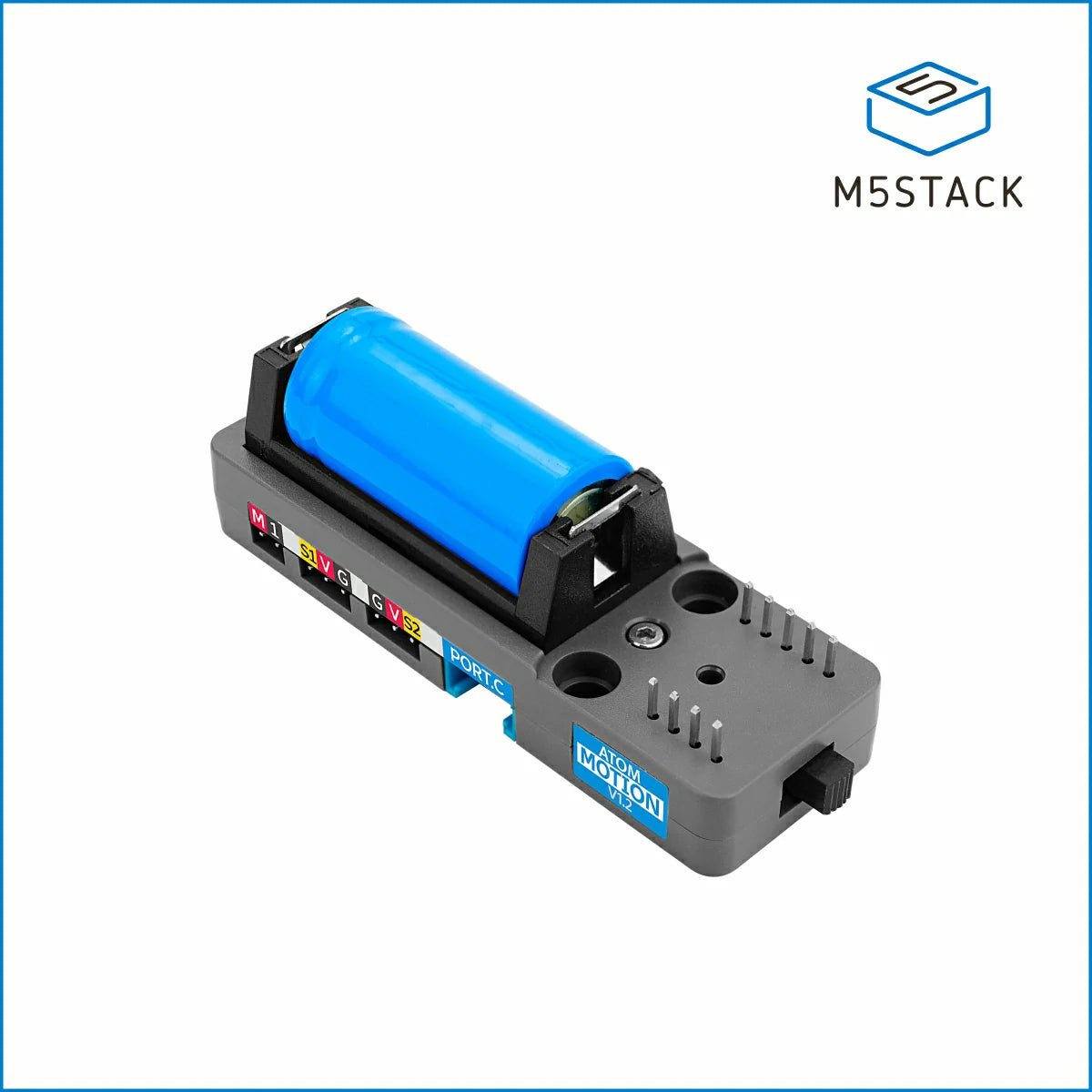

ATOMIC Motion Base v1.2 with Power Monitor (INA226AIDGSR)

Description Atomic Motion Base v1.2 is a high-performance servo and DC motor drive base specifically designed for the Atom main control series. It deeply integrates power control, intelligent expansion, and safety protection functions to provide a one-stop solution for multi-domain development. The product is equipped with 4-channel servo interfaces and 2-channel DC motor interfaces, which can precisely drive various actuators; two HY2.0-4P interfaces support the rapid connection of various sensors such as temperature, humidity, and light, easily realizing device function expansion. In terms of communication, it uses a stable I2C communication protocol, combined with STM32+RZ7899 control chips, ensuring stable driving, efficient data transmission, and low latency. In terms of the power supply system, it has a built-in rechargeable 900mAh 18350-specification lithium battery, equipped with a DW01-A high-precision single-cell lithium battery protection chip and an INA226 current/voltage
