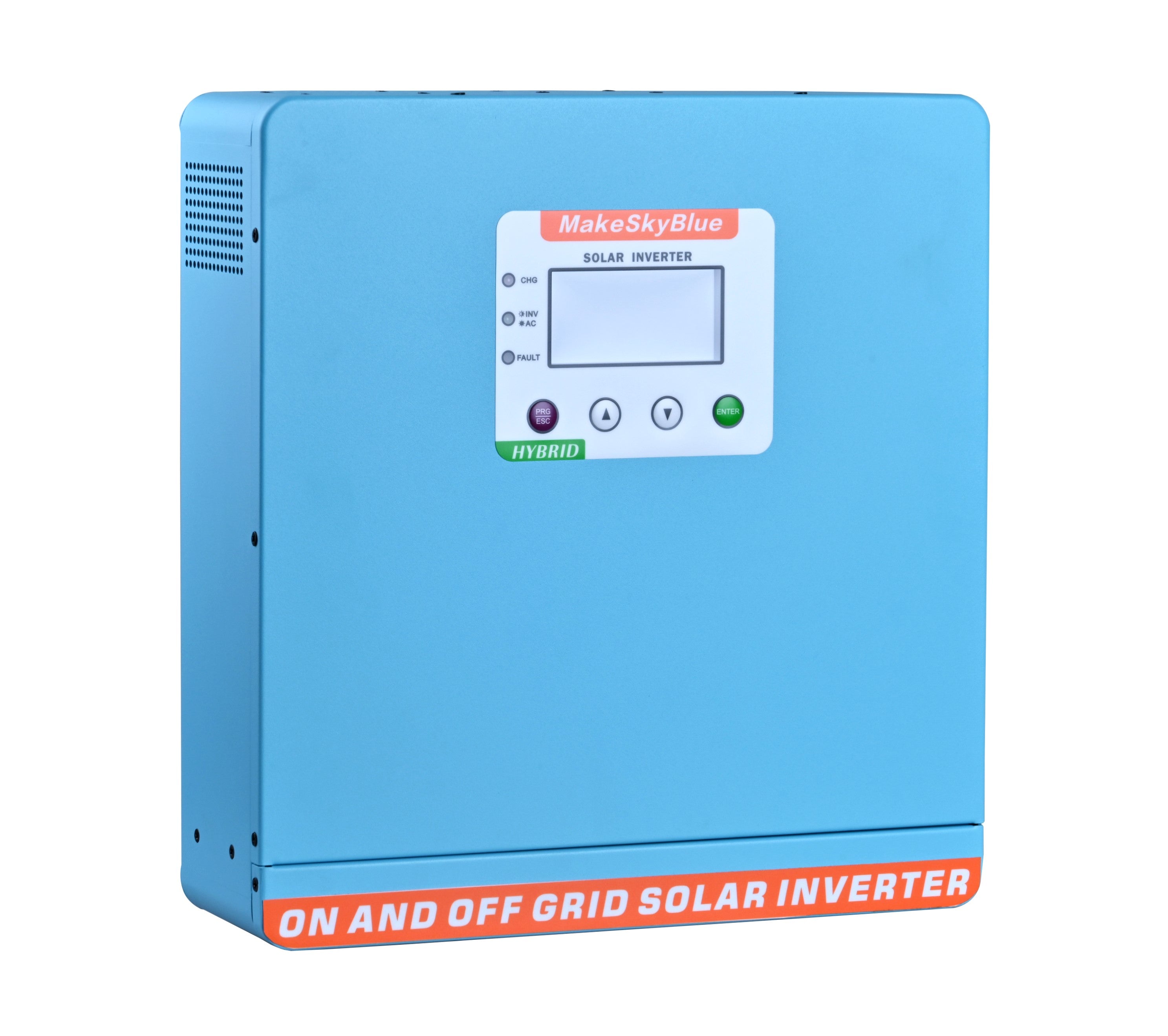

6KW Pure Sine Wave MPPT Solar Inverter, 48V DC to 220V AC, Off&On Grid Tie Inverter, No battery inverter, High PV inverter
6KW Pure Sine Wave MPPT Solar Inverter, 48V DC to 220V AC This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger, and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD offers user-configurable and easy-accessible button operations such as battery charging current. Pure sine wave inverter 120A MPPT solar charger for Max 7000W PV power 300V-500V(Voc) DC wide range input PV voltage AC/Solar charger priority, battery charging/cut-off voltage, acceptable input voltage based on different applications. work without a battery, the inverter can generate power from solar panels directly to load appliances Model AIO6K48 PV INPUT MPPT Range @ Operating Voltage 110-450VDC PV Overvoltage Protection Open Circuit Voltage 450VDC Maximum PV Array Power 6000W Maximum Solar Charge Current 100A Storage Battery Pattern Pb/Li Rated Input Voltage 48VDC Direct Cell Voltage Range 46.4-58.8V(Li)，38.4-60V(Pb) Maximum Charging Current 130A Floating Impulse Voltage 53.5V(Pb),Li batteries are determined by the user Average Charging Voltage 56.5V(Pb),Li batteries are determined by the user Maximum AC Charge Current 30A Equipment Protection Battery overvoltage protection Yes Overload Protection Yes Short Circuit Protection Yes Over Temperature Protection Yes Basic parameters Dimensions 350/300/100mm Net Weight 7.8kg Noise ≤48dB Use Temperature Range -20℃∽+55℃ Storage Temperature -15℃∽+65℃ Use Humidity Range 0~90% No condensation AC Side Input Rated Voltage 230Vac Voltage Range 170-270Vac（UPS）,90-280Vac(APL) Maximum Input Voltage 280VAC Rated Input Frequency Yes Frequency Range 40-65Hz Conversion Range 10ms(UPS) 20ms(APL) Maximum AC Charging Current 60A Inverter Output Parameters Rated Output Capacity 6KW Rated Output Voltage 230VAC/208VAC/240VAC Voltage Accuracy ±5% Rated Output Frequency 50Hz/60Hz Frequency Accuracy ±2% Output Waveform Distortion Rate (THD) ≤3%（100%Linear Load ） Power Factor 1.0 Maximum Efficiency 97.5%(PV360V@1/2load) Mixed Network Output Overload Current 50A Off Grid Carrying Capacity 110%<load<150% (±10%): 10s after Alarmshutdown; 150%<load<200% (±10%): 5s after Alarm shutdown; 200%<load (±10%): Immediate alarmshutdown Reminder: The US warehouse only ships to USA addresses. The DE warehouse only ships to European Union addresses. The AU warehouse only ships to Australian addresses. The CN warehouse can ship to the world.
