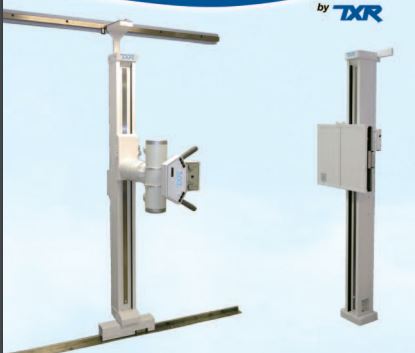

CH-1 Upright System with F/W Tube Stand, Magnetic Locks
CH-1 14 x 17" Upright System with F/W Tube Stand, Magnetic Locks 13-SM/S105C Floor-to-Wall Non-Rotate Tube Stand Vertical travel 11.75" - 76.75" 1O" focal spot to front of column Platform tube mount, angulation dial and operator handles Manual lock for tube angulation Electric lock for longitudinal and vertical travel Fits in ceiling heights of 88 "-121" 9.2" Longitudinal travel with 5' floor track UL Classified, operates from 24 VDC 13-BF7-GC/S109 Wall Stand with 17 x 17" Grid Cabinet Floor-to-Wall Mount, Counterbalanced Column Minimum ceiling height: 86" from floor Vertical Travel: 9-3/4" to 72-3/4" Grid Cabinet with Heavy Duty Tray and 10:1, 103 line grid Electric locks {24 voe 2 Amp required) power supply induded Operates on 120 VAC E7239GX X-Ray Tube - 140,000 heat unit, 1.0-2.0mm focal spots, 180° horn angle CML-125-0001-C Collimator - Certified Manual Collimator with laser light, LED, 125kVP 10538-15 Cables - pair, 15' long Distance FS to Front of Column Distance FS to Wall (No Header) PIN Tube Arm Mount Assy 1 0" (Chiro and some non-angulating tube mounts) 19.2" 06237-008 14" (Small tables-Vet, Mobil e , Narrow Stationary and some non-angulating tube mounts 23.2" 06237-012 l 7" (Stationarv Integrated Medical Tables) 26.2" 06237-015 19" (Other Fixed Medical Tables) Distance FS to 28.2" 06237-017 23" (Float Top Tables) 32.2" 06237-021 *This product has been permanently discontinued. Replacement products available.
