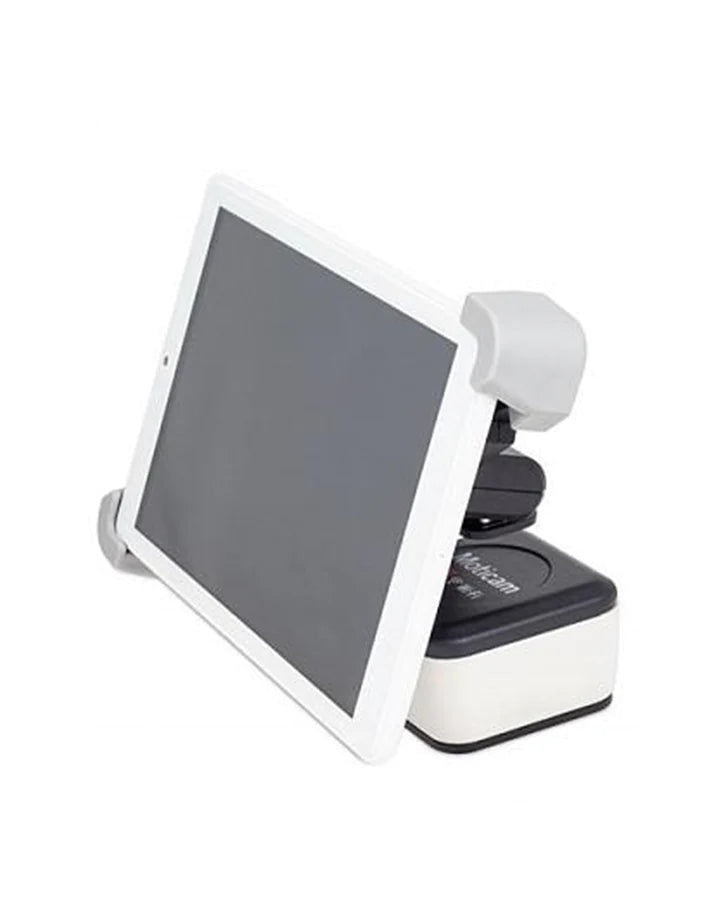

Moticam BTI10 Tablet Microscope Camera With WiFi
The Moticam BTI10 unlike other Moticams is combined with a 4.0MP and a 10" Android tablet that will deliver fast live images up to 30 fps on any trinocular microscope with the right C-mount adapter. Behind the tablet sits the Moticam X5 microscope camera. With the convenience of a detachable tablet and WiFi image data transfer, the flexibility to capture images and bring your images anywhere has never been so easy. By using our pre-installed app, MotiConnect, simply log on with your tablet and begin to capture, edit, and save your images. Camera Specifications Sensor Type CMOS Sensor Size 1/3" Imaging Area 5.44x3.07mm Capture Resolution Info 4MP (2592x1520 pixels) Live display mode through Wi-Fi 1280x720, 1920x1080 pixels (Full HD) Live display mode through Ethernet 1280x720, 1920x1080 pixels (Full HD) Pixel size 2.0x2.0μm Scan mode Progressive Data transfer Wi-Fi (2.4 & 5 GHz), Ethernet Max. frames per second (fps) 1920x1080 @ 30 fps, 1280x960 @ 30 fps (depending on Wi-Fi strength) Exposure time 0.03 msec to 0.03 sec Operating temperature From 0 to +60 Degrees Celsius non condensing Max. signal to noise ratio 38.3dB Dynamic range 64.6dB Sensitivity 1.9V/Lux-sec (550nm) Buttons On/Off Support device Universal Web browser (HTML5) Supported OS Windows XP/Vista/7/8/10, MAC OSX, Android 4,0 or higher, iOS7 or higher Minimum computer requirements 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB Lens mount C-Mount Screen 10" IPS Tablet Software MotiConnect App for iOS and Android (pre-installed) Functions Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system. Power supply 12V (External Power supply) Tablet bracket holder For tablets from 7” to 10” Package includes USB cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE) Tablet Specifications Size (mm) 218x136x10mm System Android 10 Pre-installed App MotiConnect Language Multi-Language CPU 2.0GHz 8-core RAM 6GB DDR3 NAND Flash 128GB Display 10" (IPS) 16:10 Ratio Display resolutions 1920x1200 Touch Panel Capacitive Multi-Touch Screen GPU MALI-G720 MP3 Ports MicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging) Speaker 8Ω/0.7Wx2 Mic MIC (Internal) Wi-Fi 802.11b/g/n Bluetooth 4.0 Camera Front (5M Pixels) + Rear (8M Pixels) Support display format MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM Support audio format MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV Picture format JPG, JPEG, GIF, BMP, PNG Battery 3.7V/3500mAh Rechargeable Battery Power supply tablet Input：AC100-240V. 50-60HZ - Output: DC5V 2A (Support USB port charging） Certifications FCC CE Color White Brochure Moticam BTI10 Tablet Camera Brochure
